Direct Manufacturer of G80 20mn2 Alloy Steel Load Chain
Baoding Jiazhong Hoisting Machinery Plant- Usage:Drag Chain
- Material:Alloy
- Surface Treatment:Polished or Black Finished
- Feature:Heat Resistant
- Chain Size:1,2"*3,32"
- Structure:Welded Chain
Base Info
- Model NO.:G80
- Color:Multi-Colored
- Working Load Limit:55.4t
- Inside Min:7.5mm
- Colour:Black
- Grade:80
- Transport Package:Wooden Case, Steel Drum
- Specification:CE GS ISO9001
- Trademark:HAIYAN
- Origin:Baoding China
- HS Code:731582000
- Production Capacity:1000000m,Year
Description
Basic Info.
Model NO. G80 Color Multi-Colored Working Load Limit 55.4t Inside Min 7.5mm Colour Black Grade 80 Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/YearProduct Description
Manufacturer Direct Sale G80 20mn2 Alloy Steel Load Chain1.Sizes: 6mm to 24mm, alloy steel 20Mn22.Length:any length is ok
3.Surface: self-color,polishing,black,plastic coating,hot-dip,zinc plated,etc.
4.Safety factor:4:1
5.Advantage: resistant to corrosion &rust; durable.
6.OEM is welcome
7.Equipment: automatic knitting chain machine, automatic welding machines, automatic correction machine,
heat treatment machine,loading test machine,polish machine
8.Marking: usually mark G80 every 6 chain,we can also do as required.
9. We also can make the non-standard chain according to the clients' requirements.
G80 lifting chains specifications as belows:
Size(mm) | Inside Width(mm) | Outside Width(mm) | Approx Weight KG/M | W.L.L. Ton | Test Load KN | B.L. KN |
6 x 18 | 7.5 | 21.0 | 0.79 | 1.1 | 27 | 45.2 |
7 x 21 | 9.0 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
8 x 24 | 10.0 | 28.0 | 1.38 | 2.0 | 48 | 80.4 |
10 x 30 | 12.5 | 35.0 | 2.20 | 3.2 | 76 | 125 |
12 x 36 | 15.0 | 42.0 | 3.10 | 4.6 | 109 | 181 |
13 x 39 | 16.3 | 46.0 | 3.80 | 5.0 | 128 | 214 |
16 x 48 | 20.0 | 56.0 | 5.63 | 8.0 | 192 | 320 |
16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |

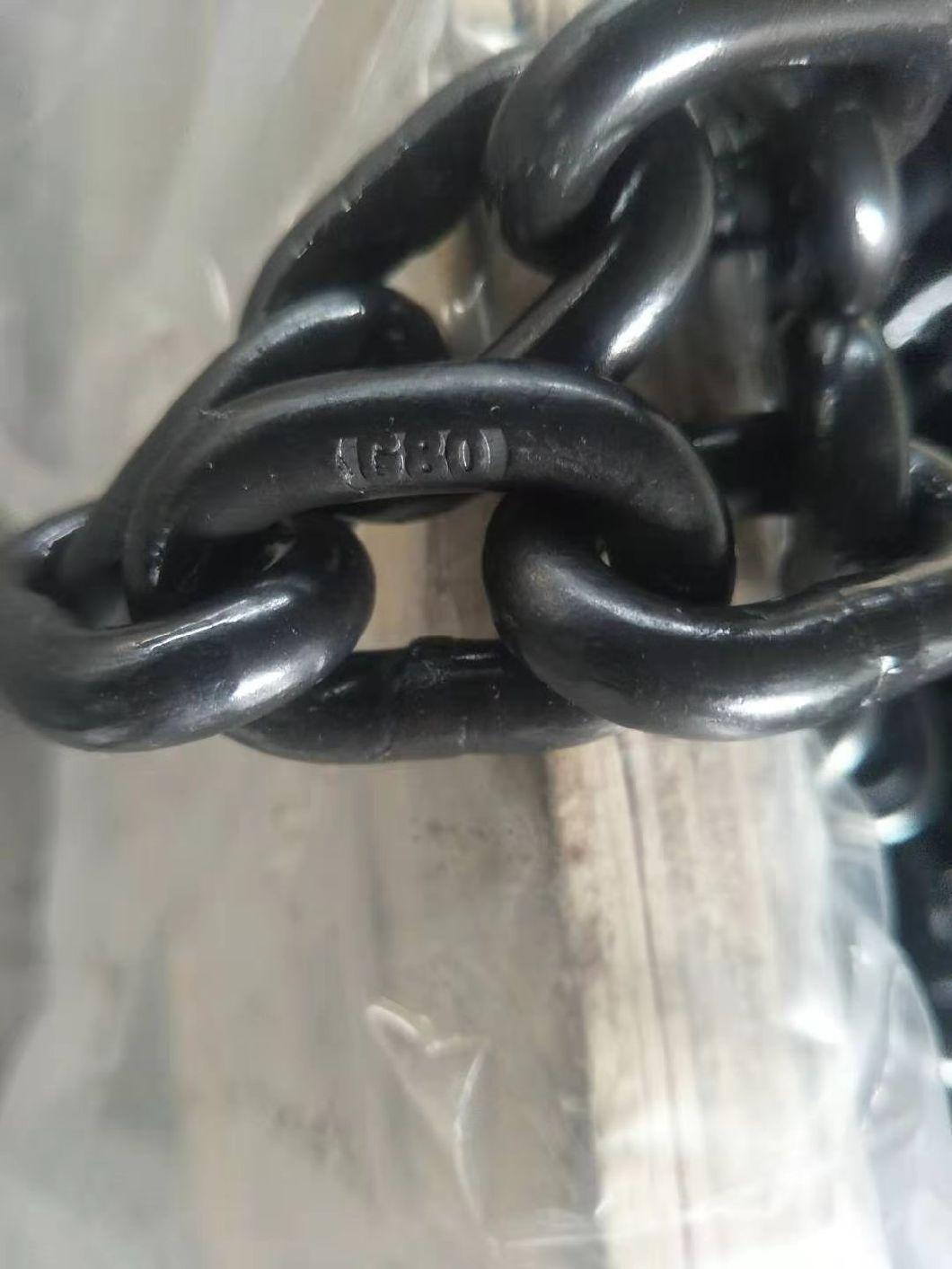

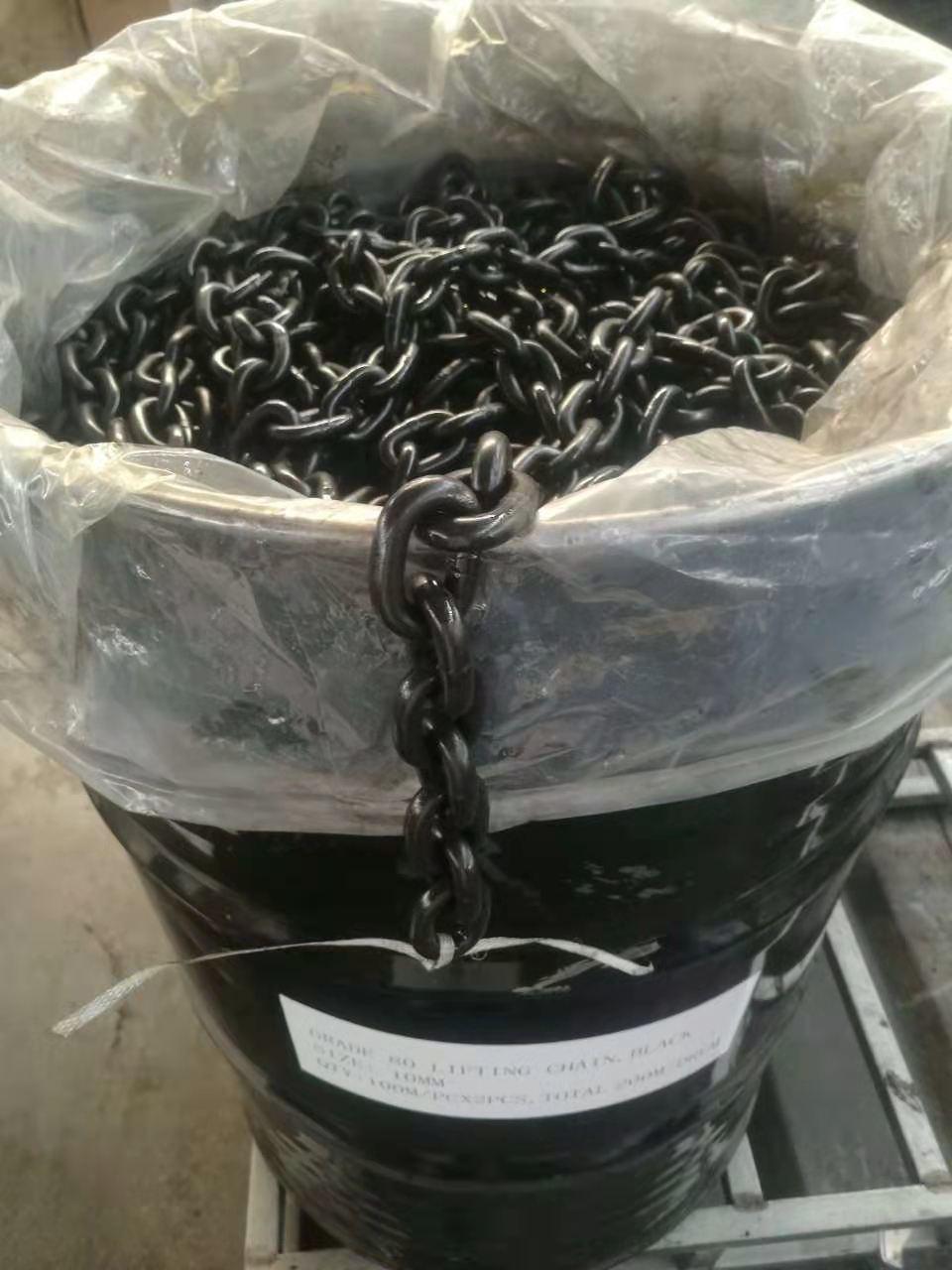

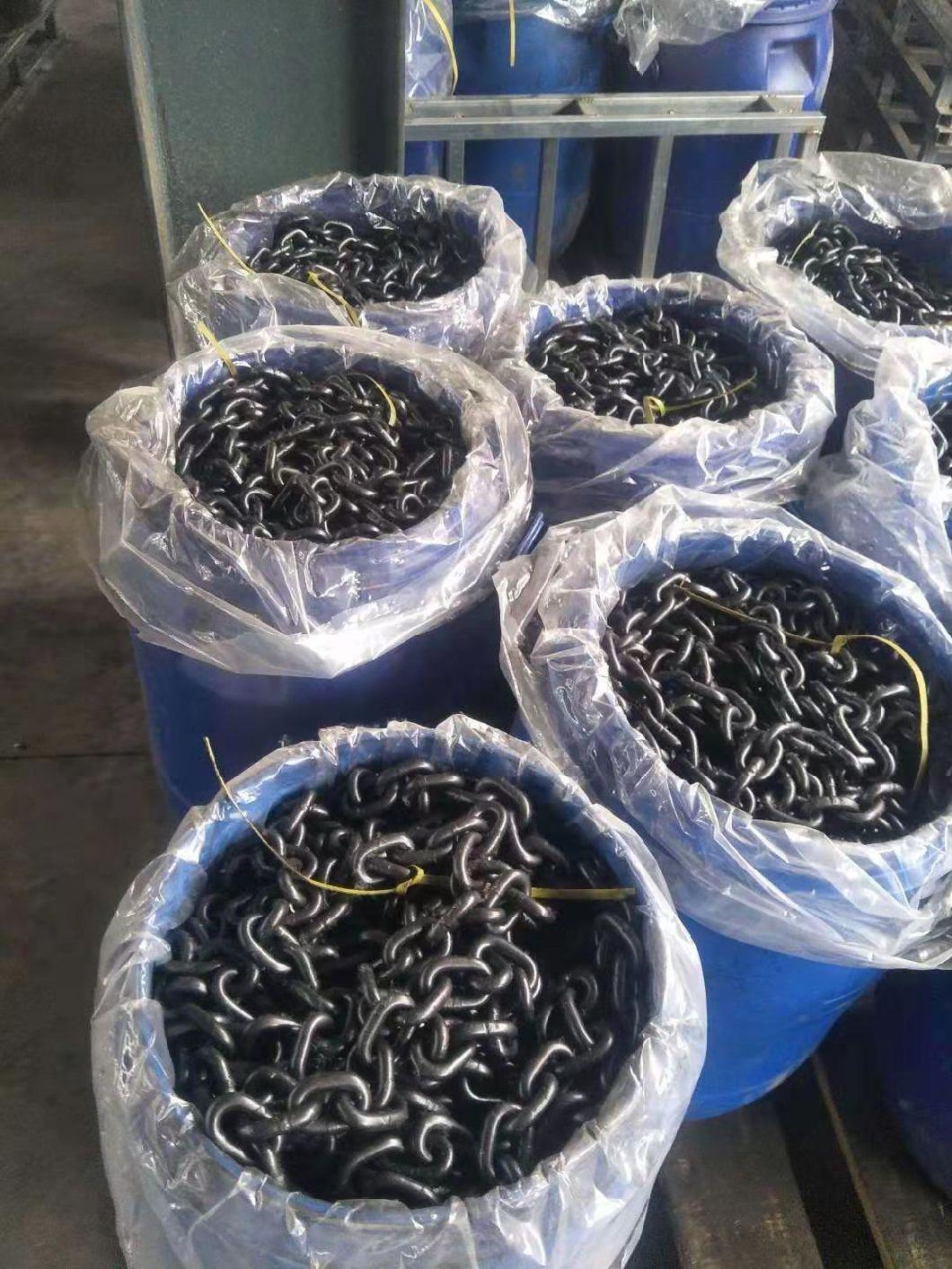

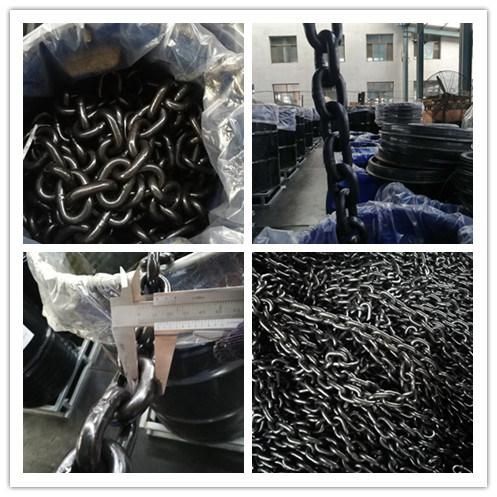

Pics of G80 black lifting chains:

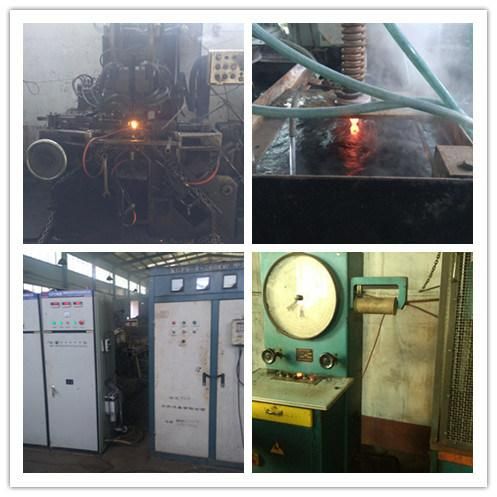

Prouction flow:
we use high quality manganese steel material, annealing, automatic knitting , automatic welding , automatic correction , heat treatment ,loading test ,polish,surface treatment,export packing
We specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
We are looking forward to making business with you!
