• Model NO.：1K130070
• N.W.：1.0 Kg
• Warranty：One Year
• Pressure Ability：0.2-0.8 M PA
• Air Inlet：G1,4
• Top Plate Hole/Stud：M8
• Bottom Plate Hole/Stud：M8
• Top Plate Dia：85 mm
• Bottom Plate Dia：85 mm
• Transport Package：Cartons
• Specification：16*16*16 cm
• Trademark：Neutral
• Origin：China
• HS Code：8708809000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 1K130070 N.W. 1.0 Kg Warranty One Year Pressure Ability 0.2-0.8 M PA Air Inlet G1/4 Top Plate Hole/Stud M8 Bottom Plate Hole/Stud M8 Top Plate Dia 85 mm Bottom Plate Dia 85 mm Transport Package Cartons Specification 16*16*16 cm Trademark Neutral Origin China HS Code 8708809000 Production Capacity 5000PCS/Month

Product Description

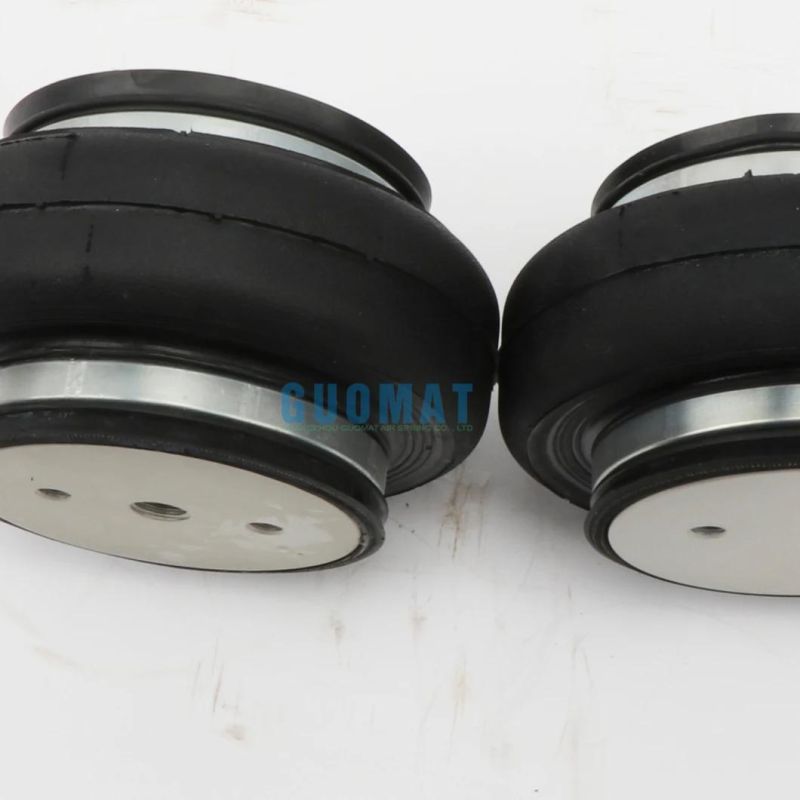

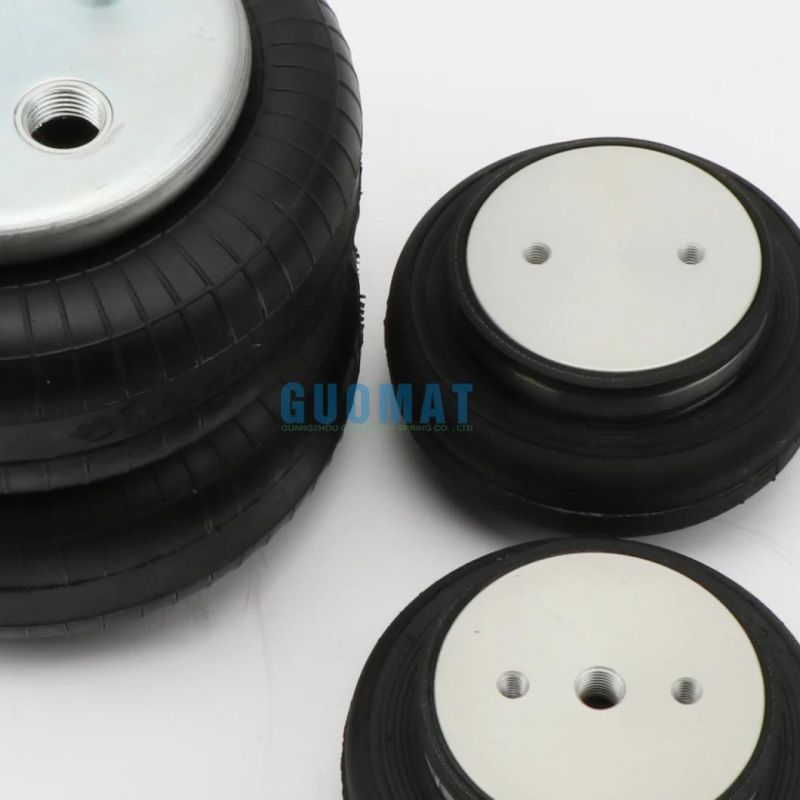

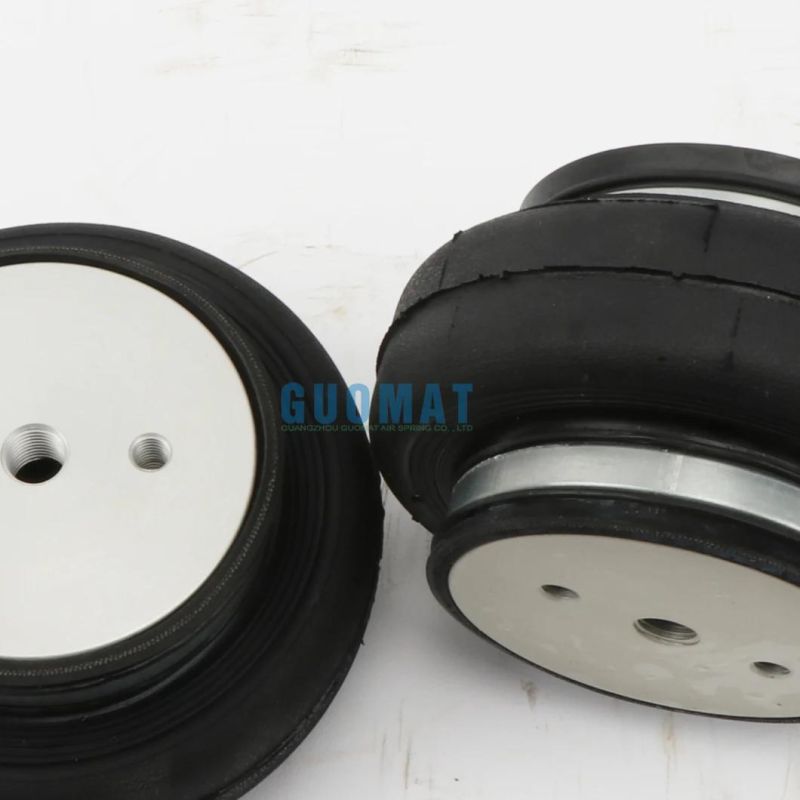

Single Small Vibration Industrial Air Spring GUOMAT 1K130070 Refer To Goodyear 1B5-500 With Aluminum Plate
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

OEM Manufacturer:



GUOMAT 1K130070

Goodyear Original:1B5-500

Guomat 1K130070 Industrial Convoluted Air Spring Specifications



Nut / Blind Nut

Top Cover Plate Screw number: 2 pcs

Bottom Cover Plate Screw number : 2 pcs

The Distance of Nut:44.5 mm

The Screw Of Nut: M8

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

Cover Plate

Top Cover Plate Diameter: 85 mm

Bottom Cover Plate Diameter: 85 mm

Rubber Bellows

Rubber Bellows Through Diameter: 130 mm

In 0.7 pa,Rubber Bellows Diameter :150 mm

The Working Stroke : MIN 50 mm to MAX 100 mm

Rubber Bellows Design Height :70 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

Without Piece Of Girdle Hoop



The shipper needs an air suspension device.

* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.

The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of durability,
Longer warranty period.
* Requires greater axis offset.





Air springTrucks, trailers and buses

Super-Cushion® air spring for truck, trailer bus, and cab and seat spring protection
Goods, providing constant trailers and providing long-term, trouble-free service.
Super-Cushion® air springs provide new high capacity for your trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers and buses
The body is longer than the steel spring, because the vibration is smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you want to add
A shaft, Super-Cushion® air spring is suitable.
