• Model NO.：ZJ-08
• Folded：Folded
• Customized：Customized
• Color：Pure
• Size：Common
• Materila：Metal
• Length：22 Inch
• Transport Package：White Box. Gift Box Will Request for Extra Cost an
• Trademark：OEM
• Origin：Ningbo
• Production Capacity：1000 Piece , Month

Basic Info.

Model NO. ZJ-08 Folded Folded Customized Customized Color Pure Size Common Materila Metal Length 22 Inch Transport Package White Box. Gift Box Will Request for Extra Cost an Trademark OEM Origin Ningbo Production Capacity 1000 Piece / Month

Product Description

Solar Panel Bracket/Stand/Support

Product Description

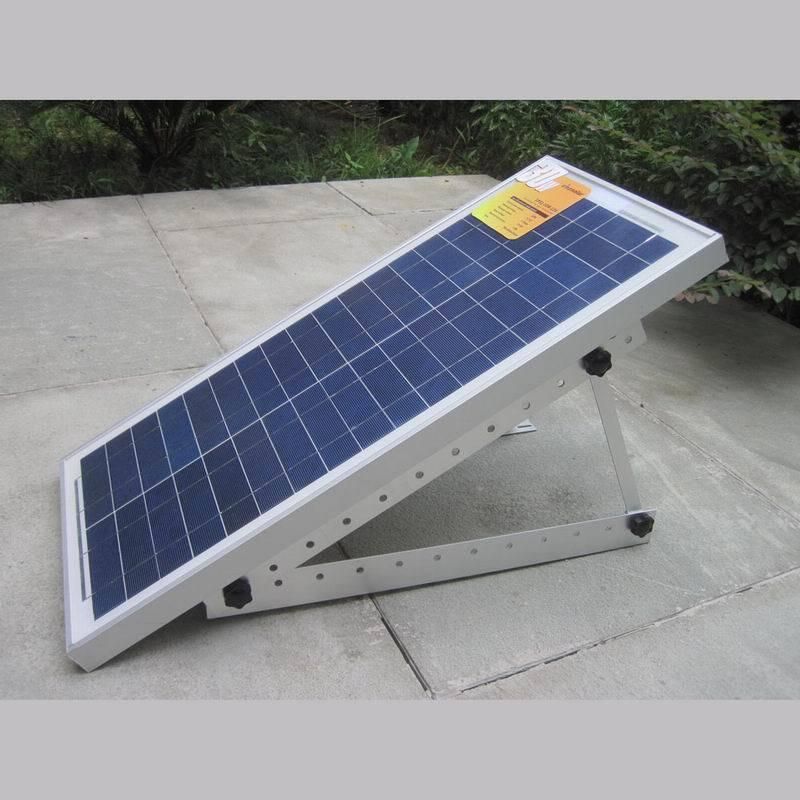

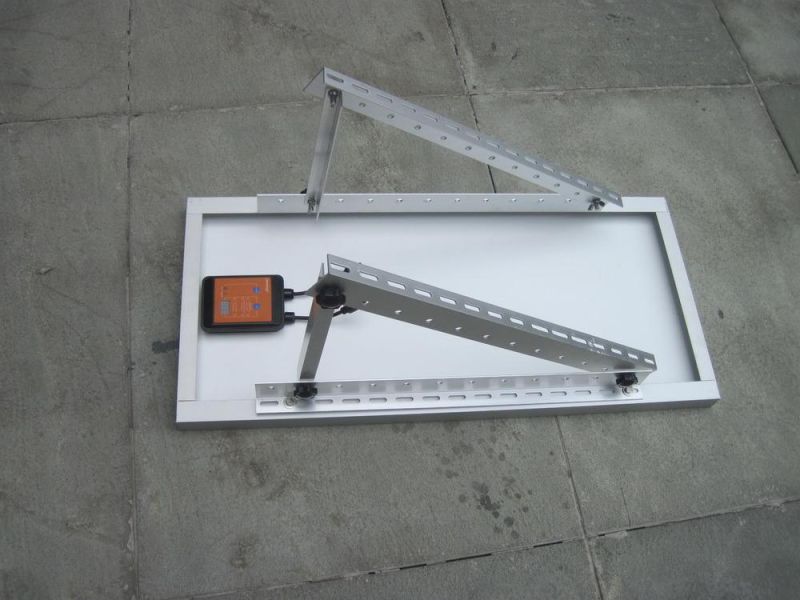

-Suitable for wall/ground/roof mounting for solar panel,specially on top of Caravan/RV/Boat/Marine etc
-Made from rust free aluminum with stainless steel hardware.( Fasteners for attaching solar panel to mount included)Easy to fix and install.
-Commonly mount the solar panel from 30W up to 300W.
-Gain up to 25% more solar panel efficiency by tilting your panels towards the sun instead of laying them flat.
-Design to adjusted with a range of 10° to 45° if the panel install on the ground, and within a range of 45° - 80° if the panel install on the wal
-Designed for solar systems,can be used on RV,MARINE,MOTORHOME,roofs, sheds, garages or other flat surfaces to tilt solar panels,or ground.
-Stainless Steel Screw and nuts included, parts list as following

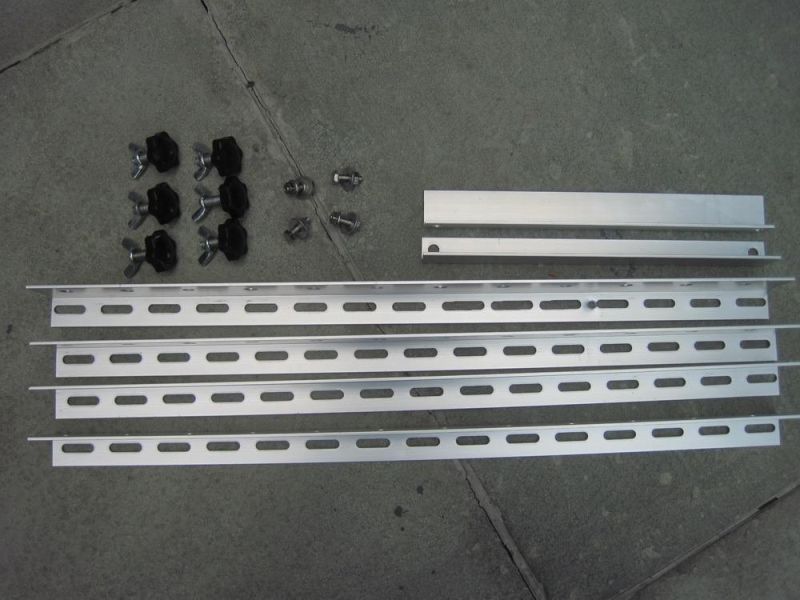

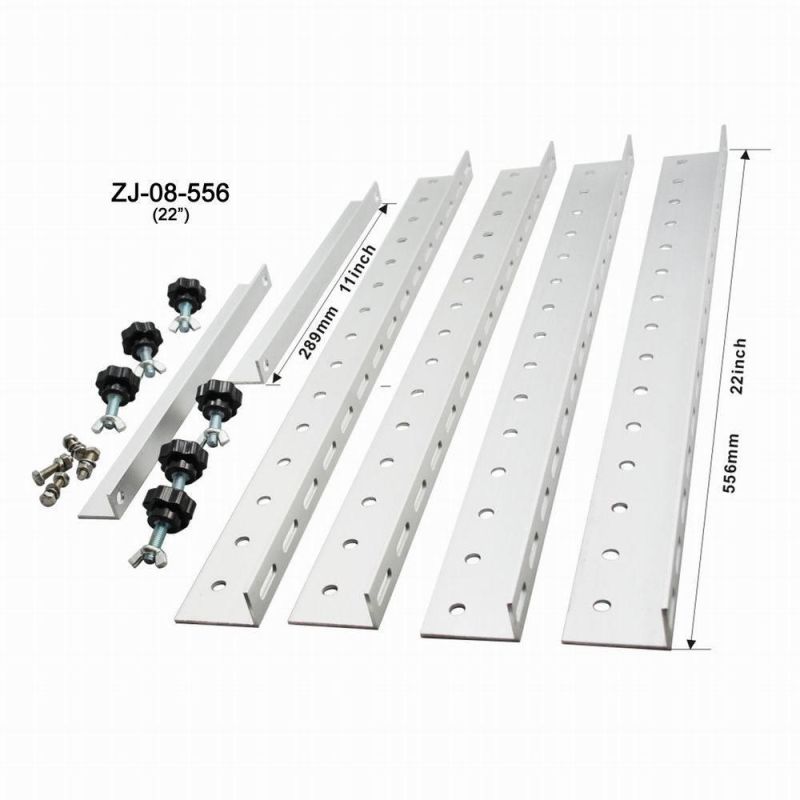

4 rails+2 legs+4 module bolts+4 flange nuts+6 of 5/16"wing bolts+ 6 of 5/16"wing nuts.

Packing size:
Inner box: 65x45x565mm/1set
G. W.: 1.40kg
Outer carton: 210x190x580mm 12set/ctn
G. W: 18kgs
