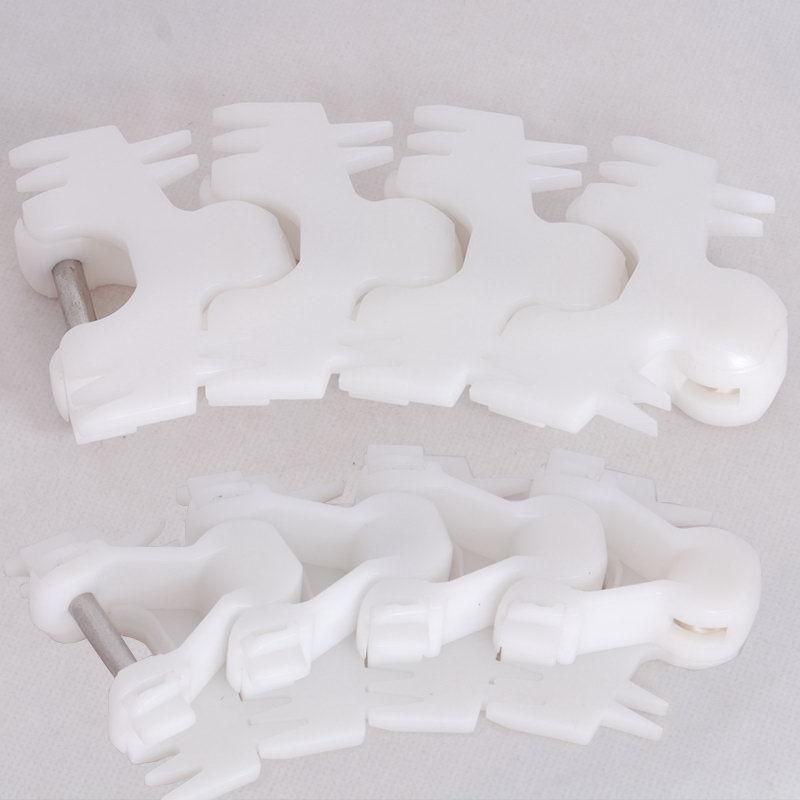

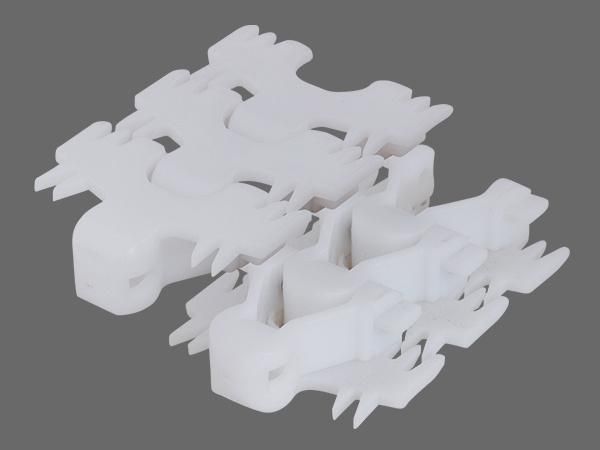

83 Finger Chain for Milk Processing Lines
Nantong Tuoxin Conveyor Equipment Co., Ltd.- Usage：Transportation Chain
- Material：Plastic
- Surface Treatment：Polishing
- Feature：Heat Resistant
- Chain Size：1,2"*3,32"
- Structure：Top Chain
Base Info
- Model NO.：83-1
- Color：Solid Color
- Chain Pitch：38mm
- Chain Colour：White
- Chain Width：83mm
- Structure (for Chain)：Plate Chain
- Transport Package：by carton
- Specification：SGS
- Trademark：tuoxin
- Origin：Jiangsu Nantong
- HS Code：3926901000
- Production Capacity：3000mtr,month
Description
Basic Info.
Model NO. 83-1 Color Solid Color Chain Pitch 38mm Chain Colour White Chain Width 83mm Structure (for Chain) Plate Chain Transport Package by carton Specification SGS Trademark tuoxin Origin Jiangsu Nantong HS Code 3926901000 Production Capacity 3000mtr/monthProduct Description
These chains used in a variety of industries including manufacturing, assembly, and packaging, for example, cosmetics, foodstuffs, paper, eletrical and Electronic sectors, mechanical, chemical and automotive industry.Max conveyor length per drive until 25m
Operating temperature -20¯ +60º C
Allowed max speed ca 50m/min
Packing: 1M 26PCS
Min curve radius: 150mm
Chain Width:83mm
Chain Pitch:38mm
| Chain Type | Plate Width | Working Load(max) | Sideflex Radius(min) | Backflex Radius(min) | Weight | ||||
| mm | inch | N(21ºC) | IBF(21ºC) | mm | inch | mm | inch | kg/m | |
| 83-1 | 83 | 3.25 | 2100 | 472 | 150 | 5.90 | 40 | 1.57 | 1.35 |
