• Model NO.：DIN3015-2
• Transport Package：Carton
• Trademark：OJ
• Origin：Yancheng
• Production Capacity：5000000PCS,Year

Basic Info.

Model NO. DIN3015-2 Transport Package Carton Trademark OJ Origin Yancheng Production Capacity 5000000PCS/Year

Product Description

According to DIN 3015 Part 2.
Available in eleven standard sizes specially designed for high mechanical requirements. (Group1 to Group11, Pipe O. D. 6mm~508mm).

Group 1 (06-16mm)

Group 2 (18-30mm)

Group 3 (30-42mm)

Group 4 (42-70mm)

Group 5 (70-90mm)

Group 6 (90-133mm)

Group 7 (133-168mm)

Group 8 (168-219mm)

Group 9 (219-324mm)

Group 10 (356-406mm)

Group 11 (508mm)

This product is suitable for oil, water and gas pipe's fastness in the hydraulic system in different areas such as the metallurgy, the construction machinery, the petroleum, the chemical industry, the ships, eletrical power and so on.

Material
Bolts: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304 / SUS316)
Cover Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)
Weld Plate: Carbon Steel(zinc coated / phosphated)/Stainless Steel(SUS304, SUS316)
Polypropylene (PP)/Polyamide(PA)/Aluminium(AL)
Working Temperature

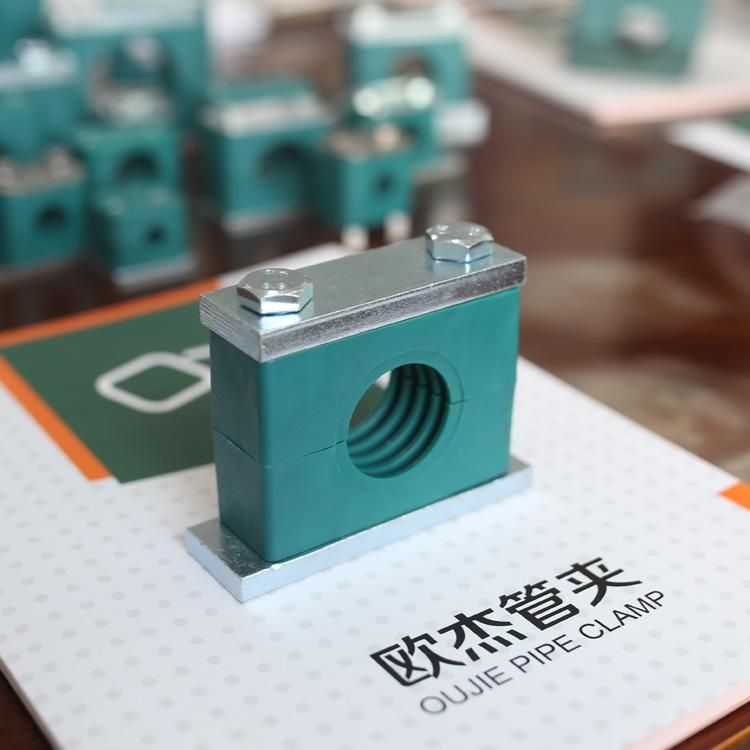

PP -30º C up to +90º C Colour dard green

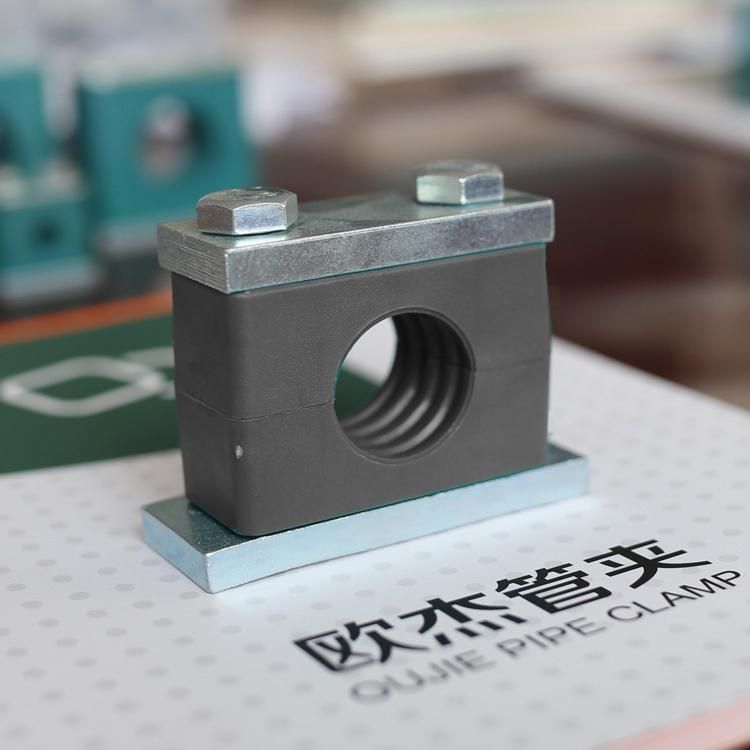

PA -40º C up to +120º C Colour black

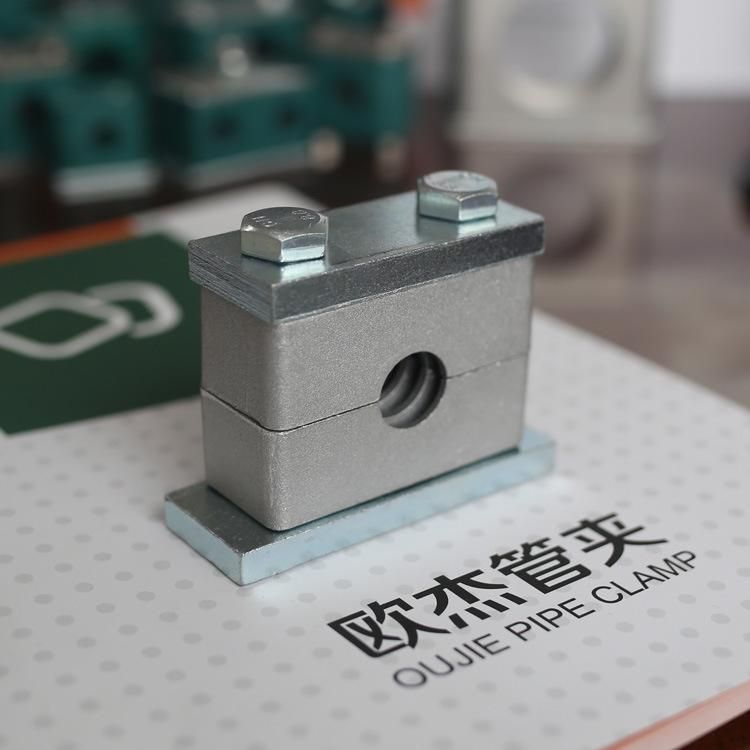

AL up to +300º C
