• Model NO.：M31062
• N.W.：3.5 Kg
• Warranty：One Year
• Pressure Ability：0.2-0.8 M PA
• Other OEM：6"X2
• Top Plate Dia：153.5 mm
• Bottom Plate Dia：153.5 mm
• Air Inlet：G1,2
• Bumper：Without
• Transport Package：Cartons
• Specification：24*24*24 cm
• Trademark：Norgren
• Origin：Europe
• HS Code：8708809000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. M31062 N.W. 3.5 Kg Warranty One Year Pressure Ability 0.2-0.8 M PA Other OEM 6"X2 Top Plate Dia 153.5 mm Bottom Plate Dia 153.5 mm Air Inlet G1/2 Bumper Without Transport Package Cartons Specification 24*24*24 cm Trademark Norgren Origin Europe HS Code 8708809000 Production Capacity 5000PCS/Month

Product Description

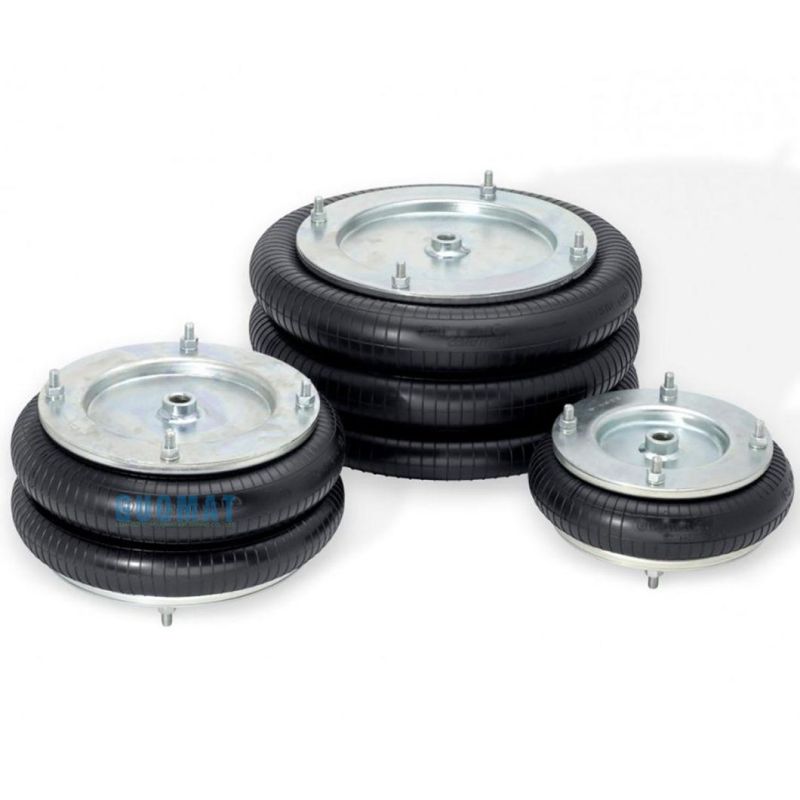

M31062 Norgren Air Spring Air Bellows 6X2 Industrial Air Spring with Stamping Flange and Plate For Machine Accessories
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump


Norgren: M/31062 OEM Reference:


Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP1482

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

Double Convoluted Air Spring 2B180-115 D185

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614


Specifications and Detail Technical Parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M8



Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8



 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



 Cover Plate

Top Cover Plate Diameter (Width): 153.5 mm



Bottom Cover Plate Diameter (Width): 153.5 mm



Material top and bottom plate:Aluminium



Rubber Bellows

Diameter max at 7 bar:175MM



Stroke of Rubber Bellows:80mm-195m



 Bumper block / Buffer block

Without Bumper Block

 Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



max load at 80 mm height and 8 bar:1415 daN



Other kinds of model air bellows:



Fires tone Air Spring Parts NO.: W01-R58-4070 - (6 x 2 Alu )



Fires tone Air Spring Parts NO.: W01-R58-4053 - (6 x 2 Steel )



Fires tone Air Spring Parts NO.: W01-R58-4078 - (6 x1 Alu )



Fires tone Air Spring Parts NO.: W01-R58-4081 (2 3/4" x3)



Fires tone Air Spring Parts NO.: W01-R58-4051 Dunlop Style 4,5 " x 2



Fires tone Air Spring Parts NO.: W01-R58-4052 - (6" x1 steel)



Fires tone Air Spring Parts NO.: W01-R58-4057 - (10 x1 steel)



Fires tone Air Spring Parts NO.: W01-R58-4054 - 8x1 Steel



Fires tone Air Spring Parts NO.: W01-R58-4028 - 8"x1 Epichlorhydrin



Fires tone Air Spring Parts NO.: W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)



Fires tone Air Spring Parts NO.: W01-R58-4090 - 8"x2 Butyl



Fires tone Air Spring Parts NO.: W01-R58-4055 - 8x2 Steel



Fires tone Air Spring Parts NO.: W01-R58-4060 (12 x1 steel)Fires tone Air Spring Parts NO.: W01-R58-4077 (12 x1 Herclor )



Fires tone Air Spring Parts NO.: W01-R58-4056 -8"x3 Steel



Fires tone Air Spring Parts NO.: W01-R58-4062 (12 x3 Steel)



Fires tone Air Spring Parts NO.: W01-R58-4065 (14 1/2 x3 Steel)



Fires tone Air Spring Parts NO.: W01-R58-4098 (14 1/2 x1 Herclor)



Fires tone Air Spring Parts NO.: W01-R58-4097 (14" 1/2 x2 Herclor)



Fires tone Air Spring Parts NO.: W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)



Fires tone Air Spring Parts NO.: W01-R58-4059 - (10" x3 steel)



Spar Part Bellow 8"x2 W01-R58-4045



Fires tone Air Spring Parts NO.: W01-R58-4064 -14" 1/2 x2



Fires tone Air Spring Parts NO.: W01-R58-4063 -14 1/2 x1



Bellow only 8" x 1 -- W01-R58-4085



Fires tone Air Spring Parts NO.: W01-R58-4048



W01-R58-4080 - 2 3/4" x 2



Fires tone Air Spring Parts NO.: W01-R58-4060- 12" x2 steel



Fires tone Air Spring Parts NO.: W01-R58-4070 - (6 x 2 V2a )



Fires tone Air Spring Parts NO.: W01-R58-4051E 4,5 x 2 Stainless Steel



Fires tone Air Spring Parts NO.: W01-R58-4050



W01-R58-4080 - 2 3/4" x 1

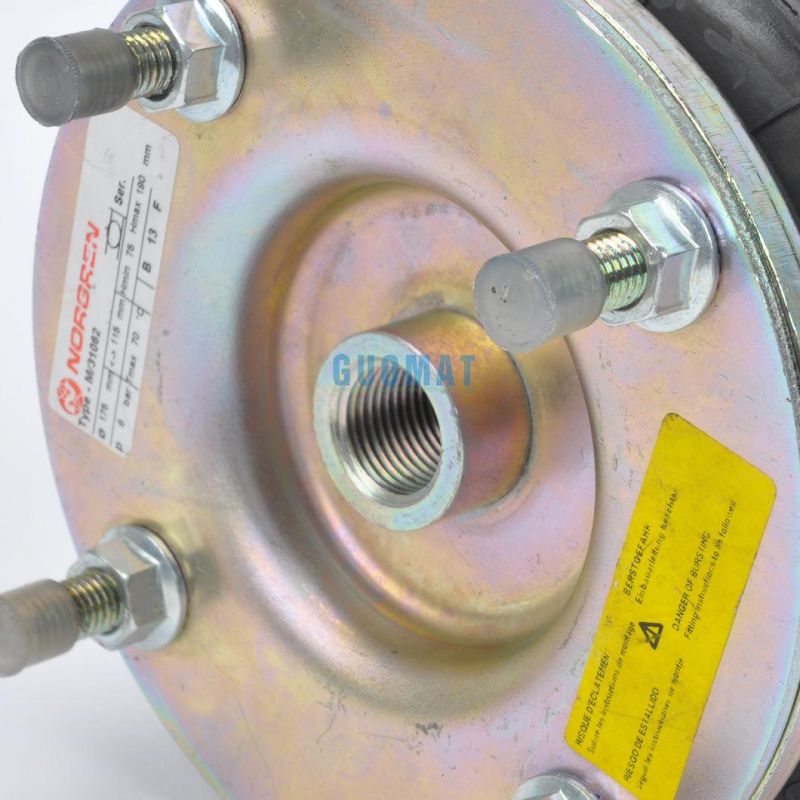

Details pictures 1 of M31062 Norgren Air Spring:

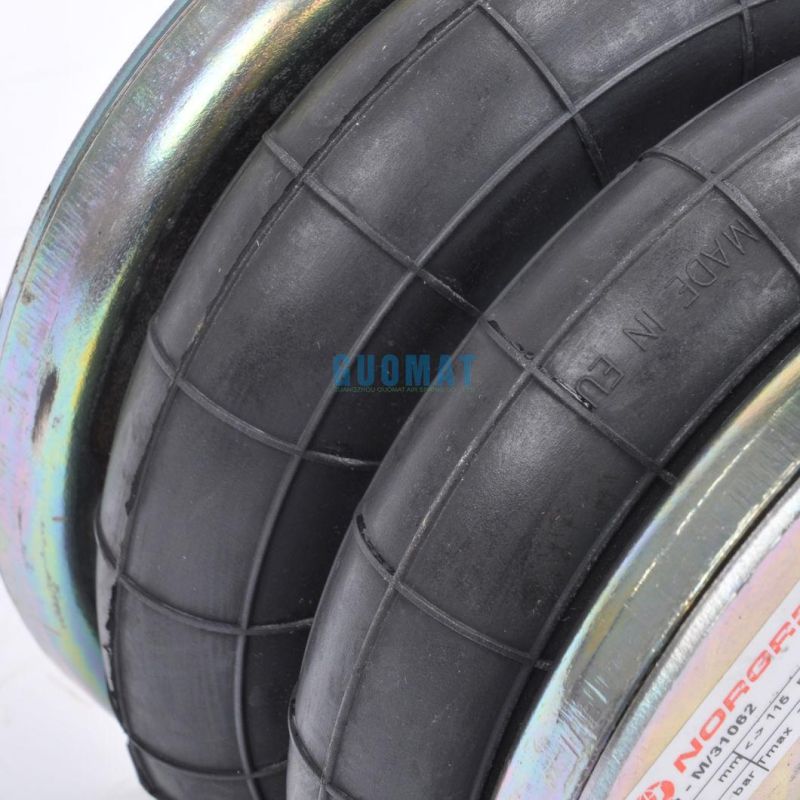

Details pictures 2 of M31062 Norgren Air Spring:

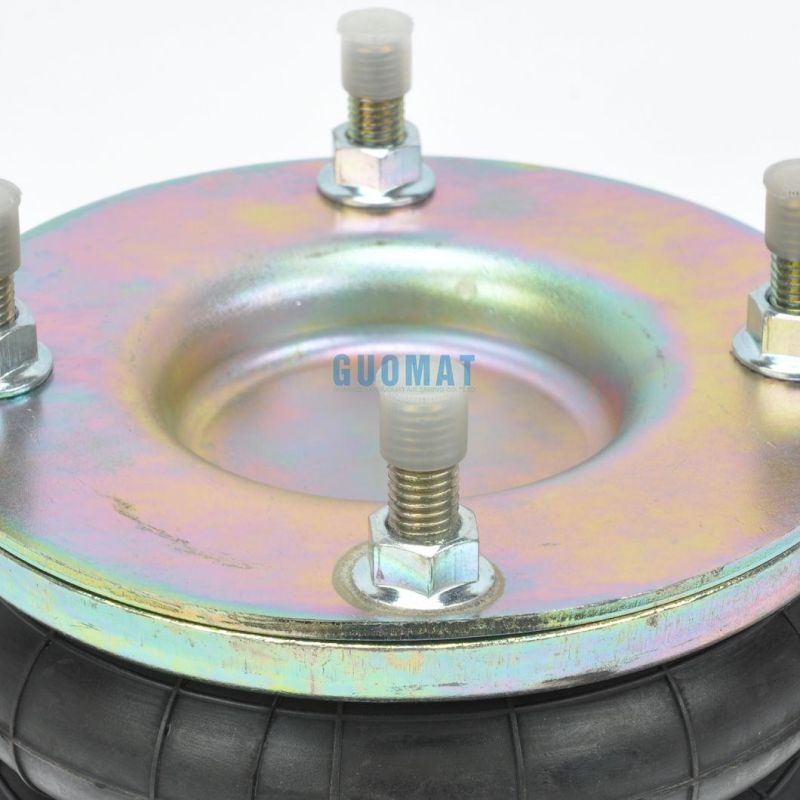

Details pictures 3 of M31062 Norgren Air Spring:
