• Model NO.：L110-30BC050X20
• Housing Thickness：1.5,2,2,2,2mm
• Offset：26mm-39mm
• Load Capacity：40,50,50,70,90kg
• Over Height：77.5,92,104,132,159mm
• Color：Black
• Bearing：Plain Bearing
• Mounting Type：Screws
• Transport Package：Export Carton for Instrumental Caster
• Specification：GB; ISO, BSCI, SGS, REACH, ROHS
• Trademark：DOUBLE RHOMUBS
• Origin：Hubei, China
• HS Code：87168000
• Production Capacity：500, 000PCS,Month for Casters

Basic Info.

Model NO. L110-30BC050X20 Housing Thickness 1.5/2/2/2/2mm Offset 26mm-39mm Load Capacity 40/50/50/70/90kg Over Height 77.5/92/104/132/159mm Color Black Bearing Plain Bearing Mounting Type Screws Transport Package Export Carton for Instrumental Caster Specification GB; ISO, BSCI, SGS, REACH, ROHS Trademark DOUBLE RHOMUBS Origin Hubei, China HS Code 87168000 Production Capacity 500, 000PCS/Month for Casters

Product Description

Parameter



Model No.	L110-30BC050X20	Offset	26mm
Wheel material	PP	Diameter of stem	3/8"
Wheel diameter	50mm	Length of stem	15mm
Wheel width	20mm	Brake	No
Overall height	75.5mm	Housing material	Steel housing with zinc plating
Load capacity	40kg	Housing thickness	1.5mm
Application	Instrument

Features
1. The wheel is made of high quality milky white PP material
Caster housing is made of gavanized steel housing.
2. There are four optional size: 50mm, 75mm, 100mm, 125mm, plain bearing, noiseless moving
3. Seven different caster housing:
    fixed plate caster housing,
    swivel plate caster housing,
    swivel plate with brkae caster housing,
    swivel screw caster housing,
    swivel screw with brake caster housing
    swivel bolt hole caster housing
    swivel bolt hole with brake caster housing
4. This caster is very popular with different clients for its high quality.
5. Applicable products: instruments, small carts, shelves.
6. Δ Packing: small carton with pallet or according to customer's needs

Double Rhombus do the best casters in China:
1. Scientific structure design;
2. Special rotation design;
3. High quality material to ensure the caster capability.
4. High quality materials purchased with strictly quality checking.
5. Producing strictly according to the ISO quality management system. Certification: ISO 9001: 2008/, OHASA18001: 1999, ISO 14001: 2004
6. Each product will be checked strictly before packing.
7. The most important thing is: We are professional manufacturer.


Payment and delivery:
1. Payment: By T/T. 40% advance payment, the balance before shipment
2. Delivery time: Three weeks after receiving the down payment


Company information

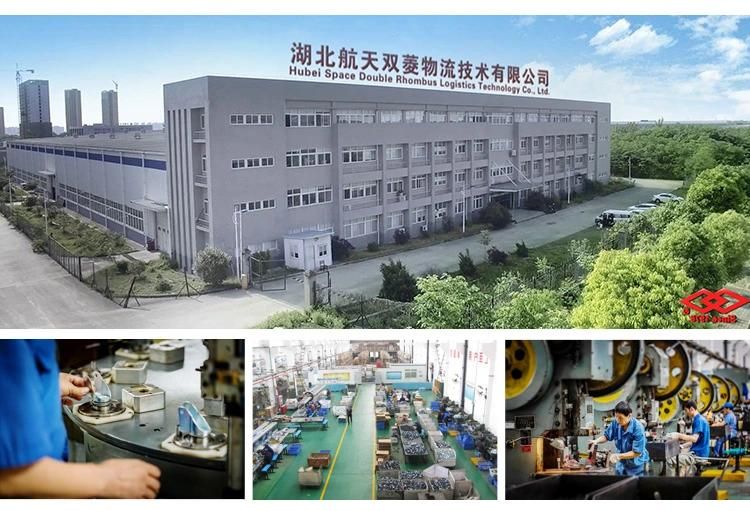

1) Our company was founded in 1978, it has gotten certificates of ISO9001 quality system, OHSAS 18001 health system and ISO 14001circumstance system already. The National Standard Bureau entrusted our company to compile the National standard GB/T14687-93 and GB/T14688-93 for industrial caster in 1993 and 2011.

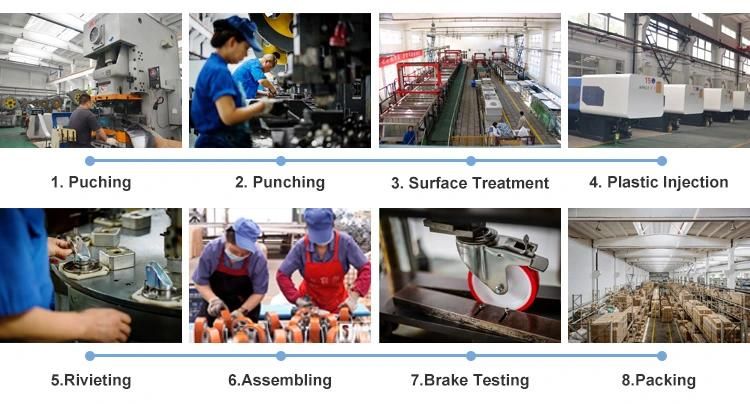

2) Our company has more than ten years export experience, professional manufacturing technology, and a strict quality control system. Most of our engineers and mechanics have more than 10 years experiences on manufacturing caster. Our factory has modern manufacturing processes, equipment and mature production lines for mould making, curved cutting, punching, welding, surface plating, machine assembling and capability tests for casters, airport trolley, airport counter, airport chair, queue stand, foldable hand truck.

3) We have our own development and design teams. If there is any product you are interested in, please send us an inquiry, if you couldn't find what you want, please also let us know, we could make it customized for you.


Sample service


Sample Available
Sample fee Paid by customer, but can be refund when mass production
Delivery fee Send by express or by air, paid by customer, but can be refund after mass production


Service

Quick response: Our customers will get our reply with 24 hours, and get our quote within 24 hours during working days. You will get our best service


FAQ: Information we need to know

Model No. Of products
Quantity





***If there are any caster you are interested in, please send us an inquiry, if you couldn't find what you want, please also let us know, we could make new caster specially.

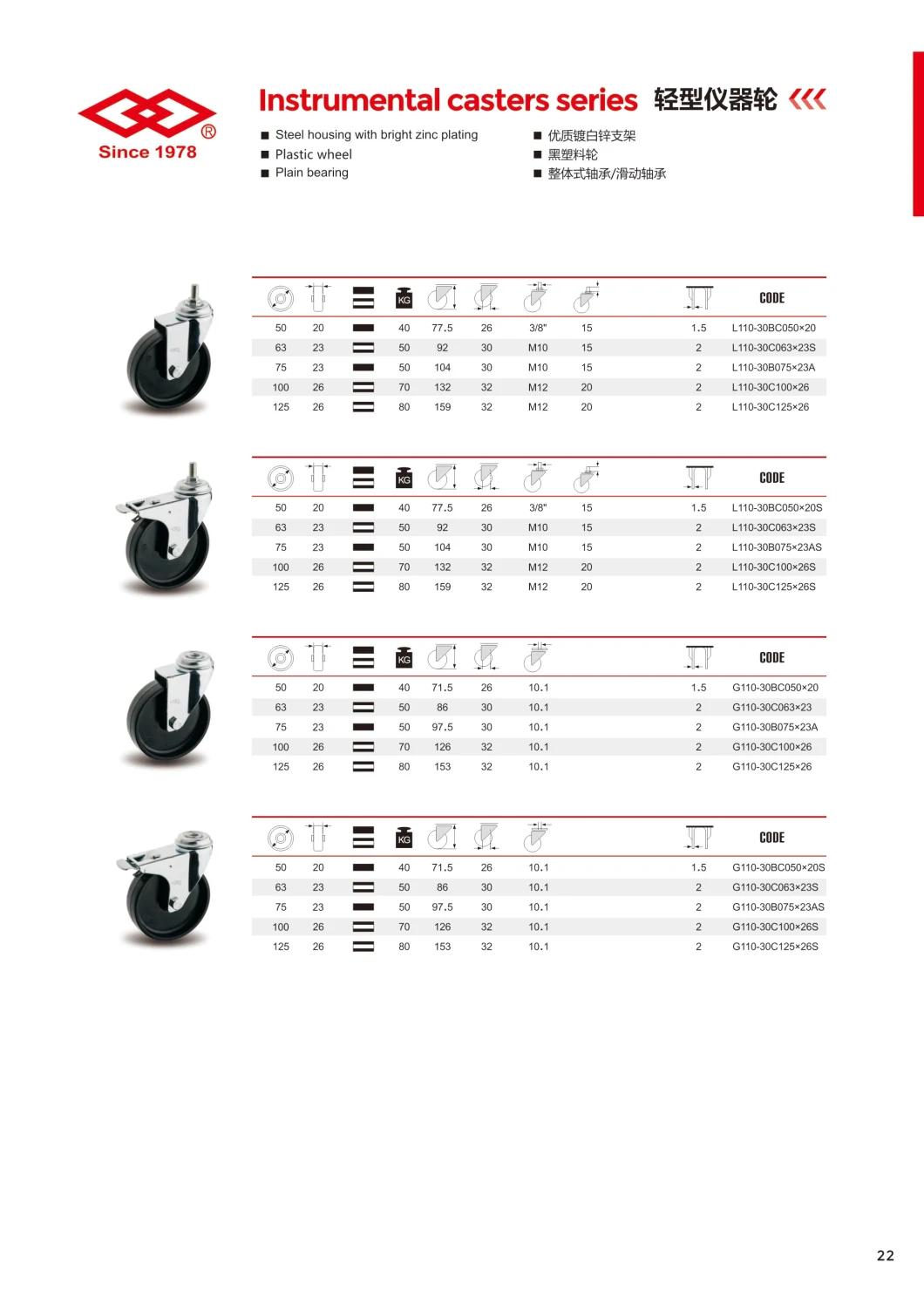

Wheel             diameter	Wheel width	Load capacity	Total height	Offset	Dia. of stem	Length of stem	Housing thickness	Model No.
50mm	20mm	40kg	77.5mm	26mm	3/8"	15mm	1.5mm	L110-30BC050X20
63mm	23mm	50kg	92mm	30mm	M10	15mm	2mm	L110-30C063X20S
75mm	23mm	50kg	104mm	30mm	M10	15mm	2mm	L111-30B075X23A
100mm	26mm	70kg	132mm	32mm	M12	25mm	2mm	L111-30C100X26
125mm	26mm	90kg	159mm	32mm	M12	25mm	2.mm	L111-30C125X26
