• Model NO.：G80 chain
• Color：Solid Color
• Place of Origin：Shanghai, China (Mainland)
• Brand Name：Hugo
• Model Number：80 Grade Chain
• Function：Drag Chain
• Standard or Nonstandard：Standard
• Diameter：10mm
• Unit Weight：2.2,M
• Breaking Load：125kn
• Test Load：Test Load
• Dedicated Chain Type：Hoist Chain
• Transport Package：Carton, Plywood, Pallet
• Specification：CE ISO TUV SGS
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：7315
• Production Capacity：10000,Month

Basic Info.

Model NO. G80 chain Color Solid Color Place of Origin Shanghai, China (Mainland) Brand Name Hugo Model Number 80 Grade Chain Function Drag Chain Standard or Nonstandard Standard Diameter 10mm Unit Weight 2.2/M Breaking Load 125kn Test Load Test Load Dedicated Chain Type Hoist Chain Transport Package Carton, Plywood, Pallet Specification CE ISO TUV SGS Trademark HUGO Origin Shanghai, China HS Code 7315 Production Capacity 10000/Month

Product Description

Wholesale Lifting Chain Grade 100 12mm





Features for the g80 lifting chain:
Surface treatment:
Electro galvanized link chain, hot dipping galvanized link chain, zinc plated (white, blue, yellow, color zinc plating), blackened link chain, self color link chain, black oxide link chain)
1. CE certificate
2. 80 Grade, breaking load>800Mpa
3. Material: 20Mn2 mild alloy steel
4. The tensile extension under breaking load is more than 17%
5. Surface finish: blackening, polishing, zinc coating, etc.
6.warranty:1 year
7.OEM available
8. "1st time" trial orders available

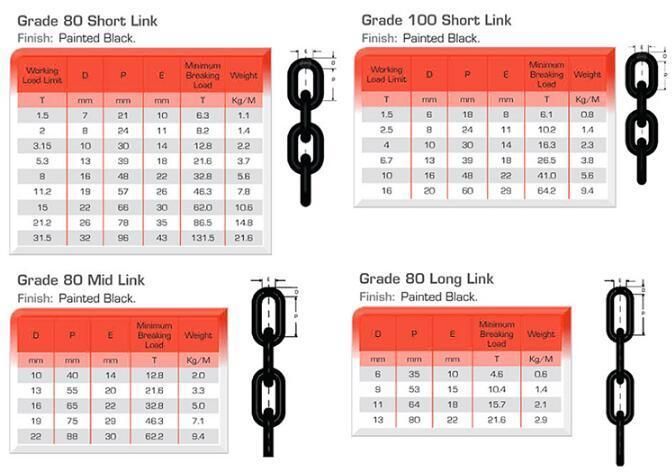

Specification for the g80 lifting chain:

Material Diameter inch	Inside Length mm	Inside Width mm	Max Working Load kn	Test Load kn	Min Breaking Load kn	Weight kg/m
6±0.2	18±0.5	8	9.8	25	40	0.79
7±0.3	21±0.6	10.3	14.7	40	60	1.10
8±0.3	24±0.7	10.8	19.6	50	80	1.45
10±0.4	30±0.9	13.5	31.4	80	125	2.20
13±0.5	39±1.2	17.5	49.0	125	200	3.70
