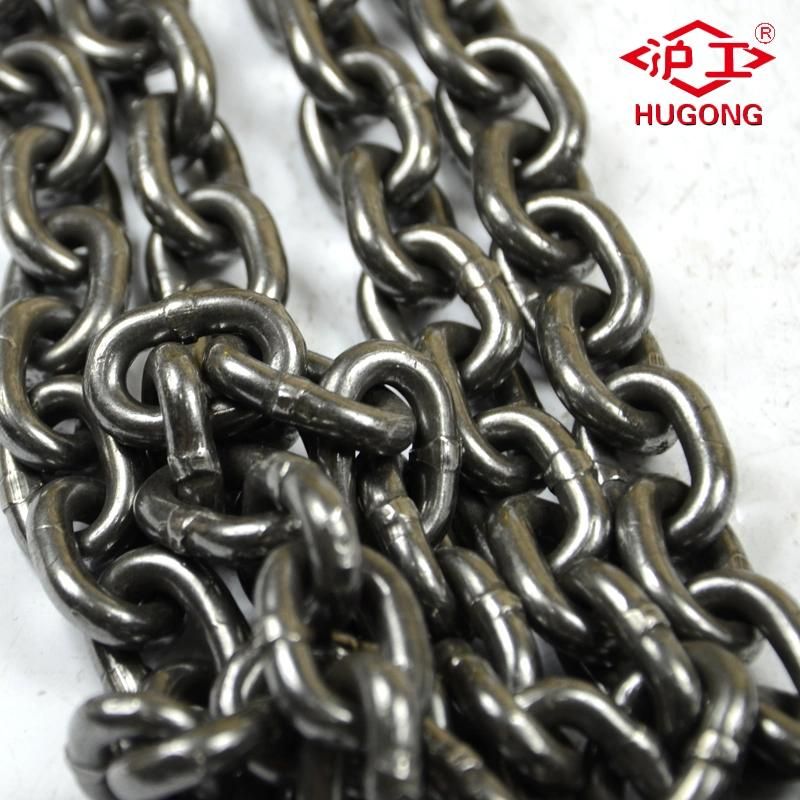

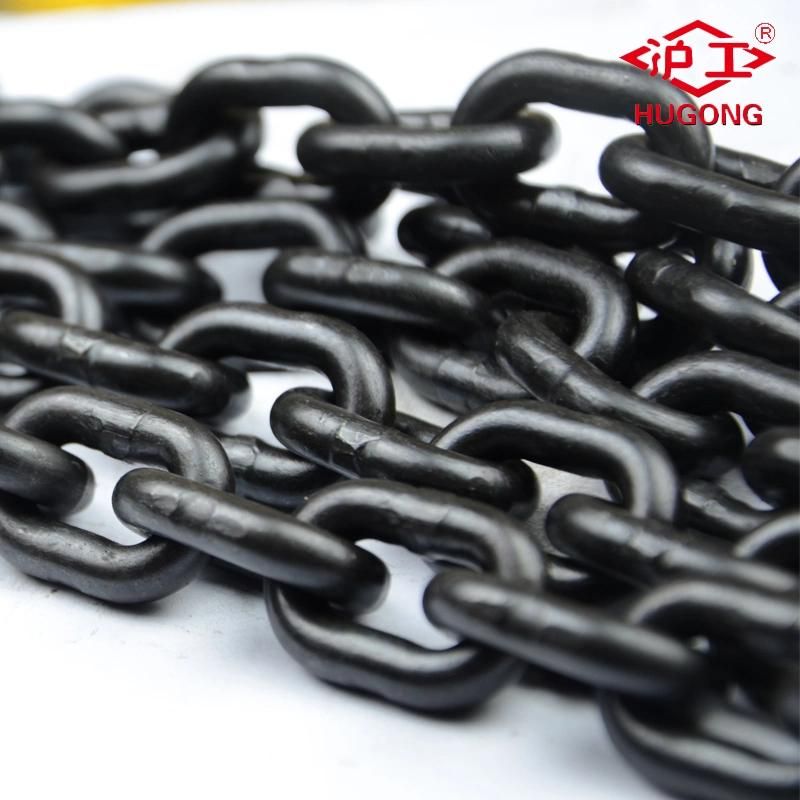

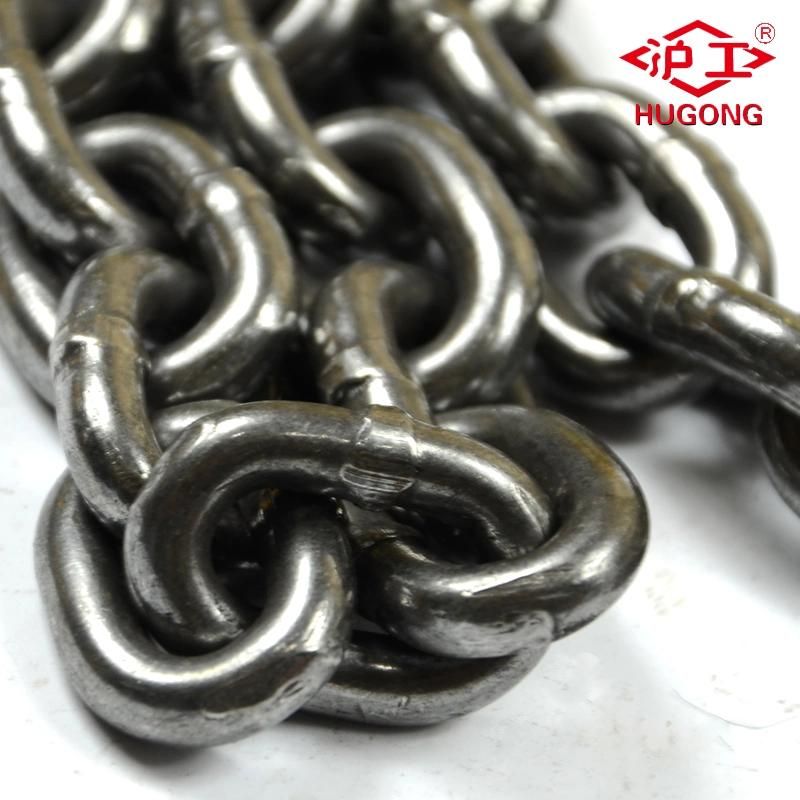

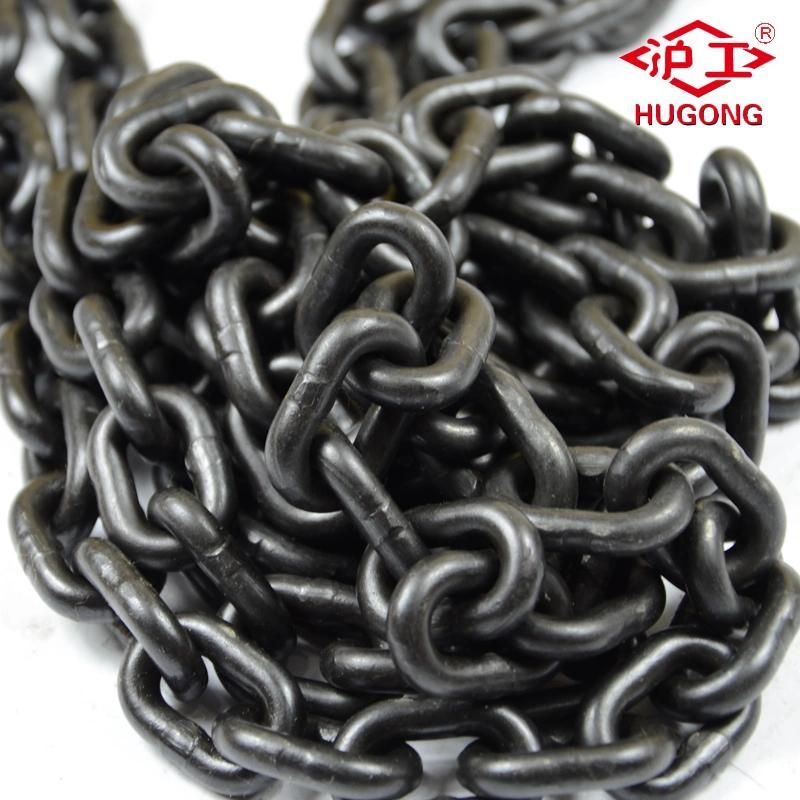

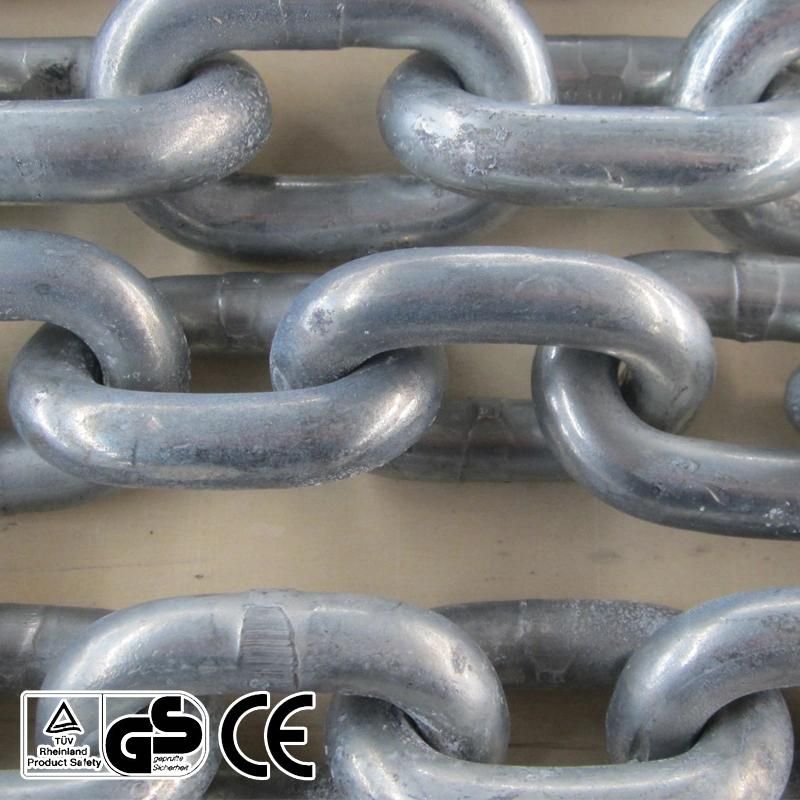

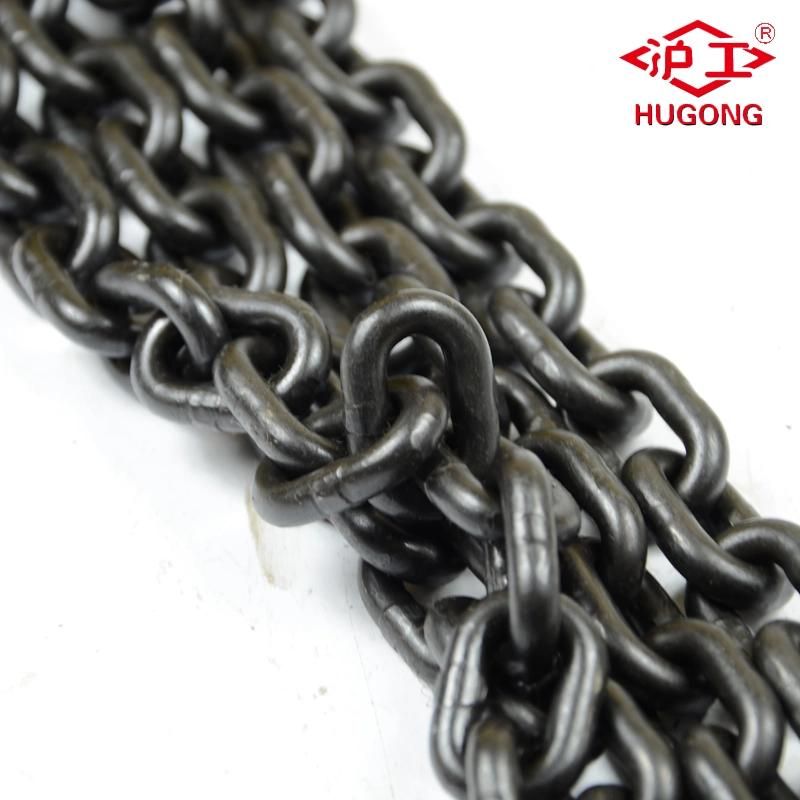

Wholesale Hugo Plain 20mn Alloy Steel G80 Lift Chain
Shanghai Yiying Crane Machinery Co., Ltd.- Usage：G80 Lift Chain
- Material：Carburizing
- Surface Treatment：Black,Yellow,Red,Green,Galvanized
- Feature：Heat Resistant
- Chain Size：Diameter From 6mm to 50mm
- Structure：Welded Chain
Base Info
- Model NO.：DA,DAT,DA
- Color：Black,Yellow,Red,Green,Grey
- Grade：G80 G100
- Alloy Steel：20mn2
- Zinc Galvanized：Hot or Electric

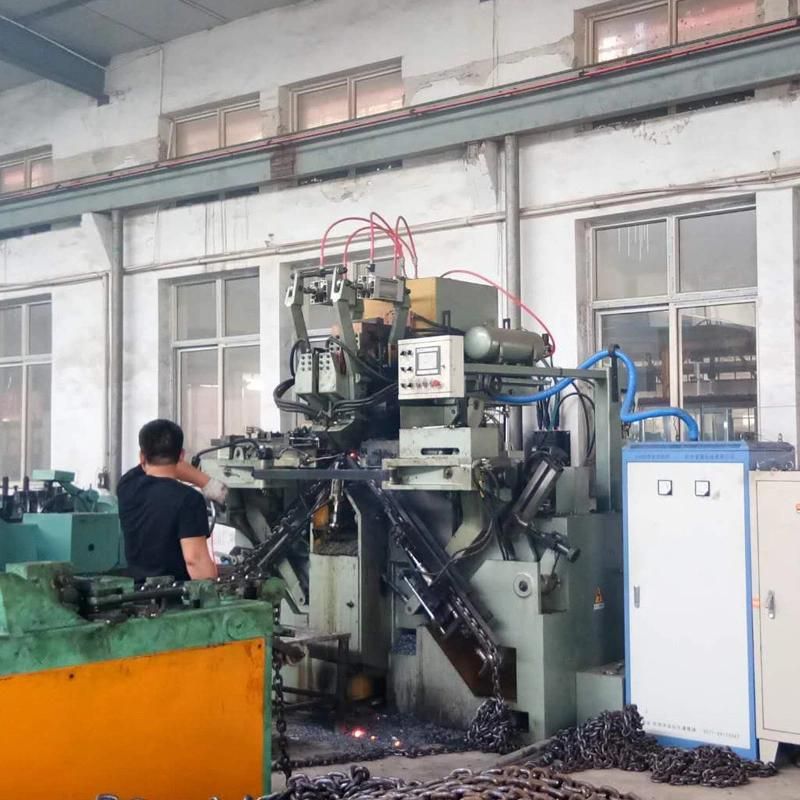

- Production Machine：Automated Welding Machine
- Quench Machine：Automated Quenching Machine
- Transport Package：500kgs,Bucket, 2buckets,Pallet, 24pallets,Contain
- Specification：Diameter 1,4inch to 2inch
- Trademark：HUGO
- Origin：Hebei Province, China
- HS Code：7315820000
- Production Capacity：3000meters,Day
Description
Pitchmmrance B1 B2 Weight Working load inkg DTload Breakin g rance mm min max load mm mm mm min mm kg/m T DAT DT kn kn 4 +-0.2 12 0.25 4.8 13.6 0.35 500 400 250 12.6 20.1 5 +-0.2 15 0.3 6 17 0.54 800 630 400 19.6 31.4 6 +-0.2 18 0.35 7.2 20.4 0.8 1.1 900 560 28.3 45.2 7 +-0.3 21 0.4 8.4 23.8 1.1 1.5 1.2 750 38.5 61.6 8 +-0.3 24 0.5 9.6 27.2 1.4 2 1.6 1 50.3 80.4 9 +-0.4 27 0.5 10.8 30.6 1.8 2.5 2 1.25 63.6 102 10 +-0.4 30 0.6 11.2 34 2.2 3.2 2.5 1.6 78.5 126 11 +-0.4 31 0.6 13.2 37 2.7 3.8 3 1.9 95 152 12 +-0.5 36 0.7 14.4 40.8 3.1 4.5 3.6 2.2 113 181 13 +-0.5 39 0.8 15.6 44.2 3.7 5.3 4.2 2.6 133 212 14 +-0.6 42 0.8 16.8 47.6 4.3 6 5 3 154 246 16 +-0.6 48 0.9 19.2 54.4 5.6 8 6.3 4 201 322 18 +-0.9 54 1 21.6 61.2 7 10 8 5 254 407 20 +-1.0 60 1.2 24 68 8.7 12.5 10 6.3 314 503 22 +-1.1 66 1.3 26.4 74.8 10 15 12.5 7.5 380 608
