• Model NO.：M type
• Handle Material：Carbon Steel
• Power Source：Manual
• Surface Treatment：Galvanized
• Weight：0.2kg

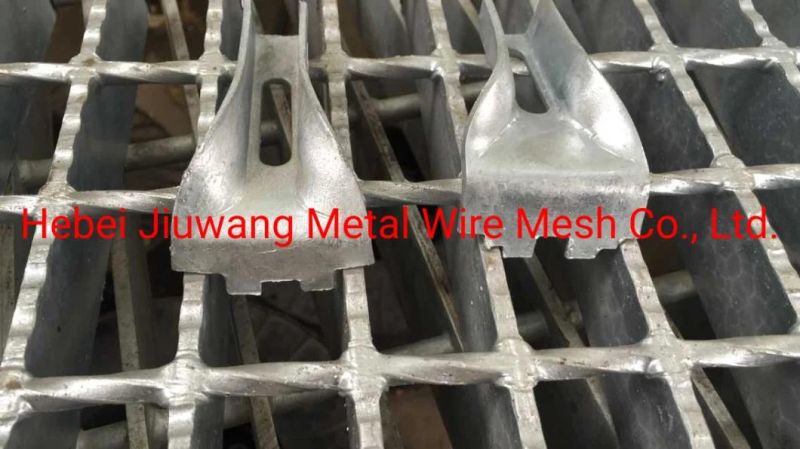

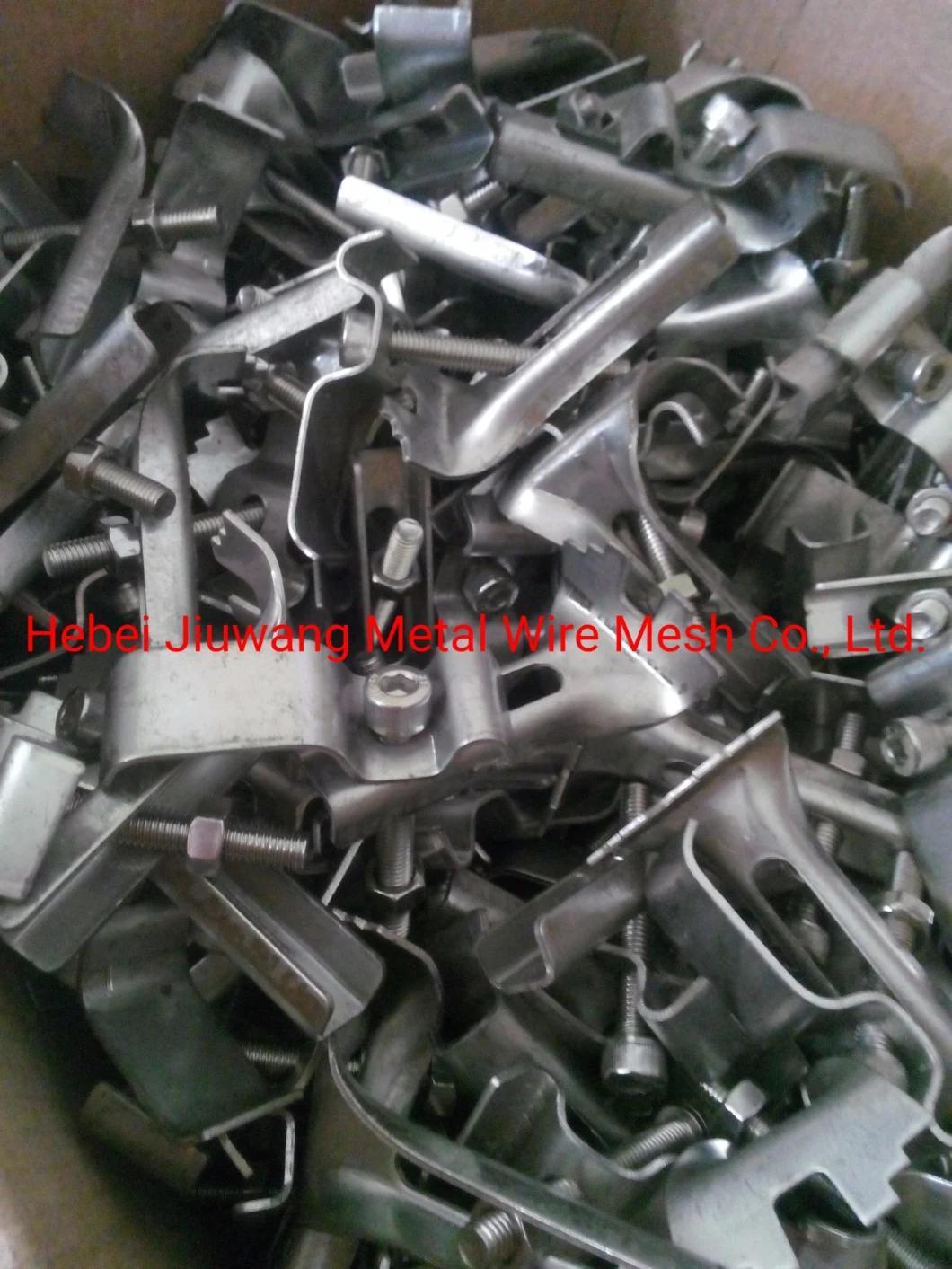

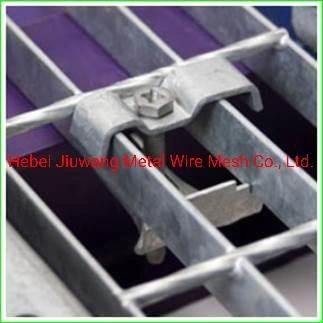

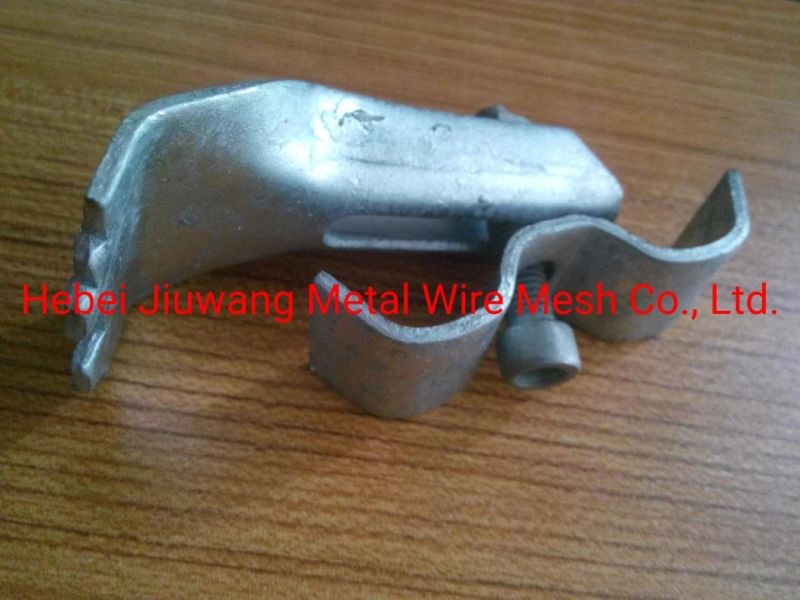

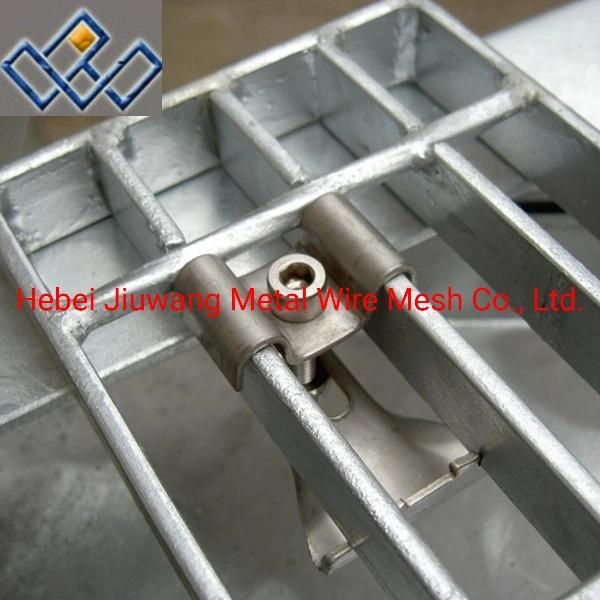

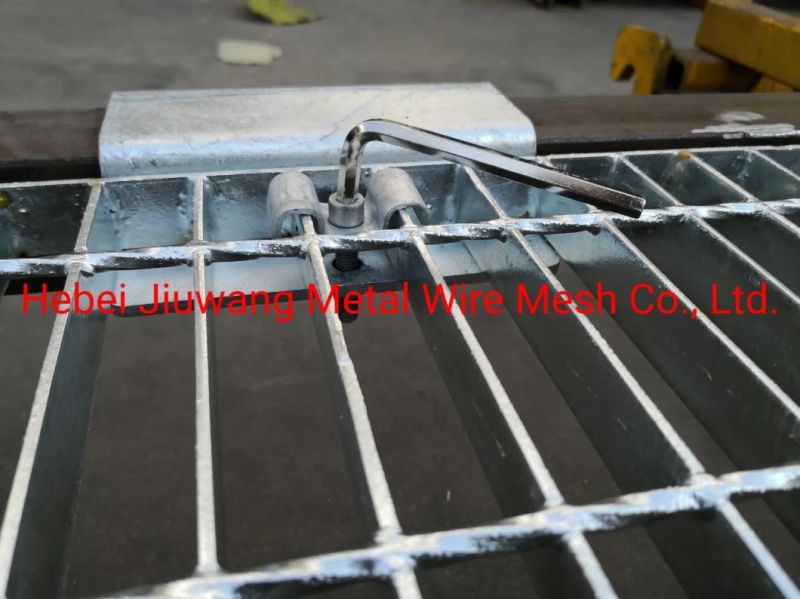

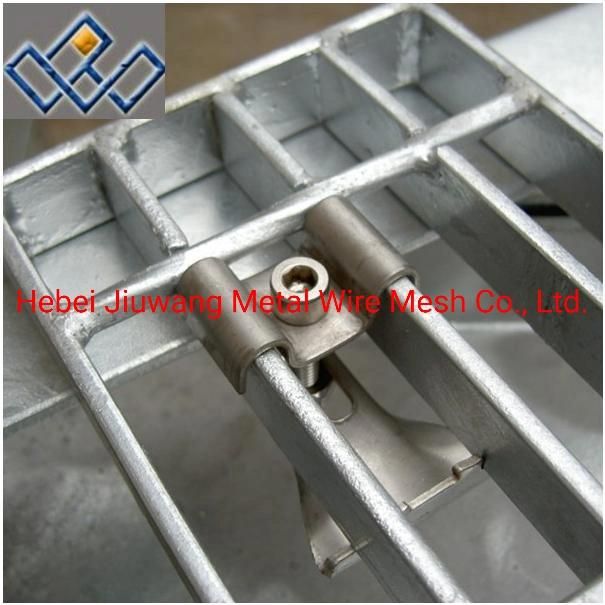

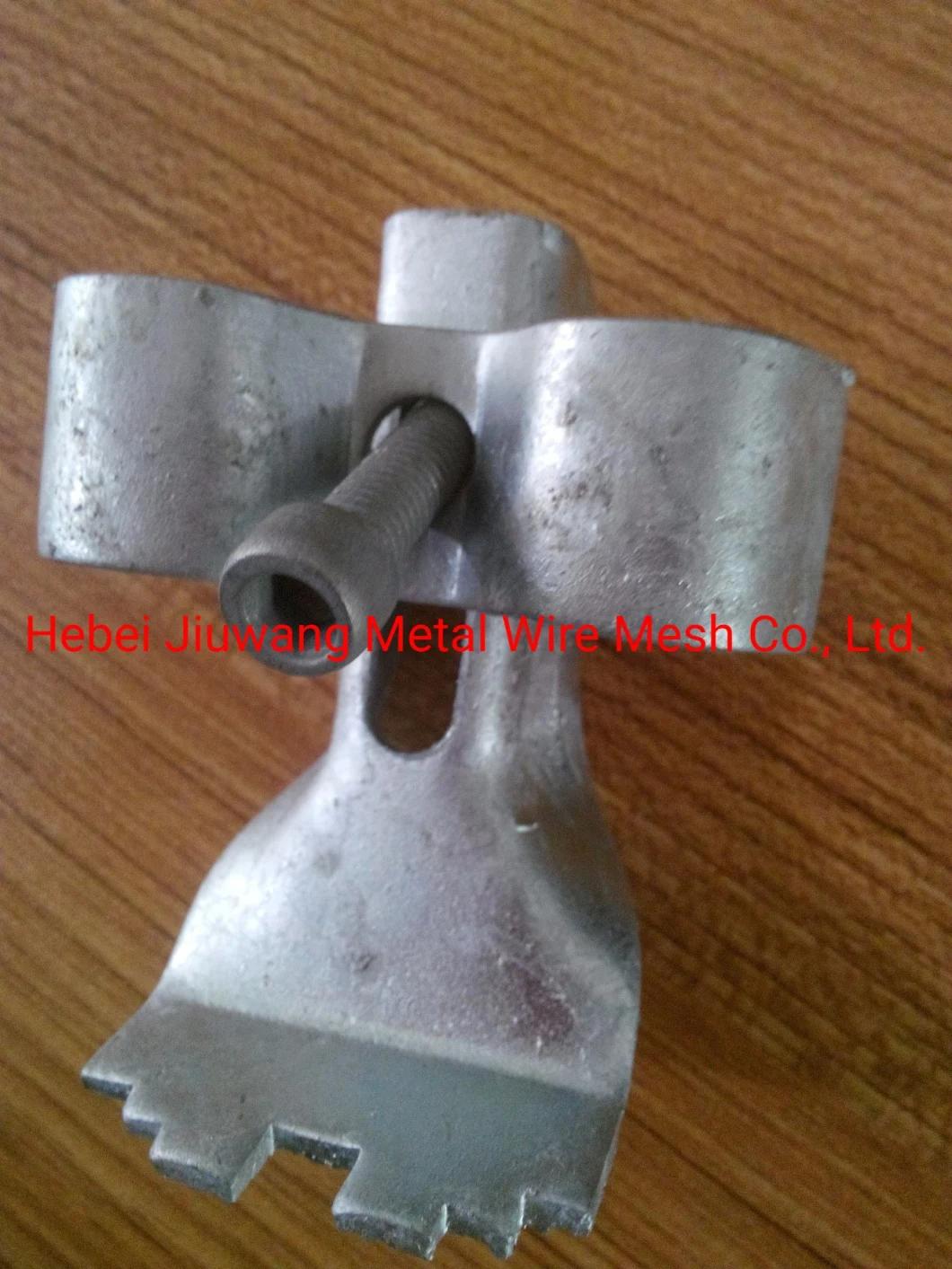

• Product Name：Grating Clamps
• Transport Package：Naked or as Customers′ Request
• Specification：ISO9001
• Trademark：Jiuwang
• Origin：Hebei Anping
• HS Code：7308900000
• Production Capacity：100000

Bearing bar pitch
  Cross bar pitch
 load steel size ( Width ×Thickness)
20×3
25×3
32×3
40×3
20×5
25×5
30
100
G203/30/100
G253/30/100
G323/30/100
G403/30/100
G205/30/100
G255/30/100
50
G203/30/50
G253/30/50
G323/30/50
G403/30/50
G205/30/50
G255/30/50
40
100
G203/40/100
G253/40/100
G323/40/100
G403/40/100
G205/40/100
G255/40/100
50
G203/40/50
G253/40/50
G323/40/50
G403/40/50
G205/40/50
G255/40/50
60
50
-
G253/60/50
G253/60/50
G403/60/50
G205/60/50
G255/60/50
Bearing bar pitch
Cross bar pitch
load steel size (Width ×Thickness)
32×5
40×5
45×5
50×5
55×5
60×5
30
100
G325/30/100
G405/30/100
G455/30/100
G505/30/100
G555/30/100
G605/30/100
50
G325/30/50
G405/30/50
G455/30/50
G505/30/50
G555/30/50
G605/30/50
40
100
G325/40/100
G405/40/100
G455/40/100
G505/40/100
G555/40/100
G605/40/100
50
G325/40/50
G405/40/50
G455/40/50
G505/40/50
G555/40/50
G605/40/50
60
50
G325/60/50
G405/60/50
G455/60/50
G505/60/50
G555/60/50
G605/60/50

3. Anping metal walking grates introduction--  325 steel grating

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted
application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence


Application:

Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.

Fields of Application:

Light chemical industry, Petro-chemistry, Machinery industry, Textile chemistry, Port engineering, Oil and grease chemistry, Agriculture husbandry, Horticulture, Steel industry, Waste disposal, Food processing, Aquatic breeding, Fertilizer industry, Pharmaceutical industry, Parking lots, Cement plants, Oil refinery, Mining and refinery, Power plants, Public utility, Marine engineering, Shipbuilding, Construction material industry, Defense projects, Airport projects, Water plants, Sewage disposal, Paper and pulp industry, Construction industry, Transportation industry, Automotive industry

Materials:
Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

Advantages:

Steel grating offers the following advantages compared with steel grid sheets:
Steel grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to installation and durable for uses.

Specific application:

Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:

Features:

Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.

The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
Hot-DIP galvanized treatment: Good rust-proof property, maintenance-free replacement.
Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.

Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.

High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Specifications: More specifications and sizes optional for meeting various environment, load, span, sizes and shapes.

Surface Treatment:
Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize the grating on their own.

Galvanized: Hot DIP Galvanizing can give a hygienic and clean maintenance free bright finish.


our company profile
Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.

CHOOSE US BECAUSE WE HAVE

1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanized steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements. Material: Carbon steel or stainless steel

Surface Treatment: Hot-dipped galvanized, PVC coated, electro galvanized, plain and so on.

Size: Standard or non-standard, making as the customers drawings.

Packing: Naked or packing as the customers request.
