China Hangzhou Dele 10mm*30mm High Quality G80 Lifting Link Chain
Dele Electrical (Hangzhou) Co., Ltd.- Usage：Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
- Material：Iron
- Surface Treatment：Polishing
- Feature：Fire Resistant
- Chain Size：Standard
- Structure：Combined Chain
Base Info
- Model NO.：DLCB-10mm
- Color：Accept
- Working Load Limit：0.28-21.3t
- Function：Steel Structure Hanging
- Weight：0.21-13.7kg,M
- Certification：Ce,ISO9001
- Application：Load Lifting
- Transport Package：Drum Packing
- Specification：3-26mm
- Trademark：DELE
- Origin：China
- HS Code：731582
- Production Capacity：1000000 Meters,Month
Description

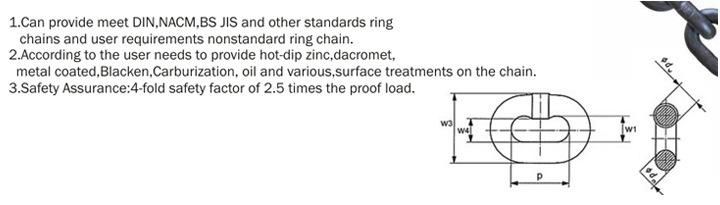

BreakingLoad min.KNInside min.w1 Inside max.w3 3*9 3.8 10.7 0.21 0.28 7.1 11.3 4*12 5 14.3 0.35 0.5 12.6 20.1 5*15 6.3 17.9 0.54 0.8 19.6 31.4 6*18 7.5 21 0.79 1.1 27 45.2 6.3*19 7.9 22.6 0.86 1.25 31.2 49.9 7*21 9 24.5 1.07 1.5 37 61.6 8*24 10 28 1.38 2 48 80.4 9*27 11.3 32.2 1.76 2.5 63.6 12 10*30 12.5 35 2.2 3.2 76 125 11.2*33.6 14 40.1 2.71 4 98.5 158 11*43 12.6 36.5 2.33 3.8 92 154 12*36 15 42 3.1 4.6 109 181 12.5*38 15.5 42.2 3.3 4.9 117 196 13*39 16.3 46 3.8 5 128 214 14*42 18 49 4.13 6.3 150 250 14*50 17 48 4 6.3 150 250 15*46 20 52 5.17 7 168 280 16*48 20 56 5.63 8 192 320 16*49 24.5 59.5 5.71 8 192 320 16*64 23.9 58.9 5.11 8 192 320 18*54 23 63 6.85 10 246 410 18*54 21 60 6.6 10 246 410 19*57 23.7 63.2 7.7 11.3 270 450 20*60 25 70 8.6 12.5 300 500 22*65 28 74.2 10.7 15.3 366 610 22*66 28 77 10.2 15.3 366 610 22*86 26 74 9.5 15.3 366 610 24*72 32 82 12.78 18 432 720 24*86 28 79 11.6 18 432 720 26*78 35 91 14.87 21.3 510 720 26*92 30 86 13.7 21.3 510 850
