• Model NO.：forged chain
• Color：Solid Color
• Process：Forged
• Transport Package：Plywood Box
• Specification：P142,P200,P260
• Trademark：Wan
• Origin：Hubei
• HS Code：7117190000
• Production Capacity：10000pieces,Month

Basic Info.

Model NO. forged chain Color Solid Color Process Forged Transport Package Plywood Box Specification P142/P200/P260 Trademark Wan Origin Hubei HS Code 7117190000 Production Capacity 10000pieces/Month

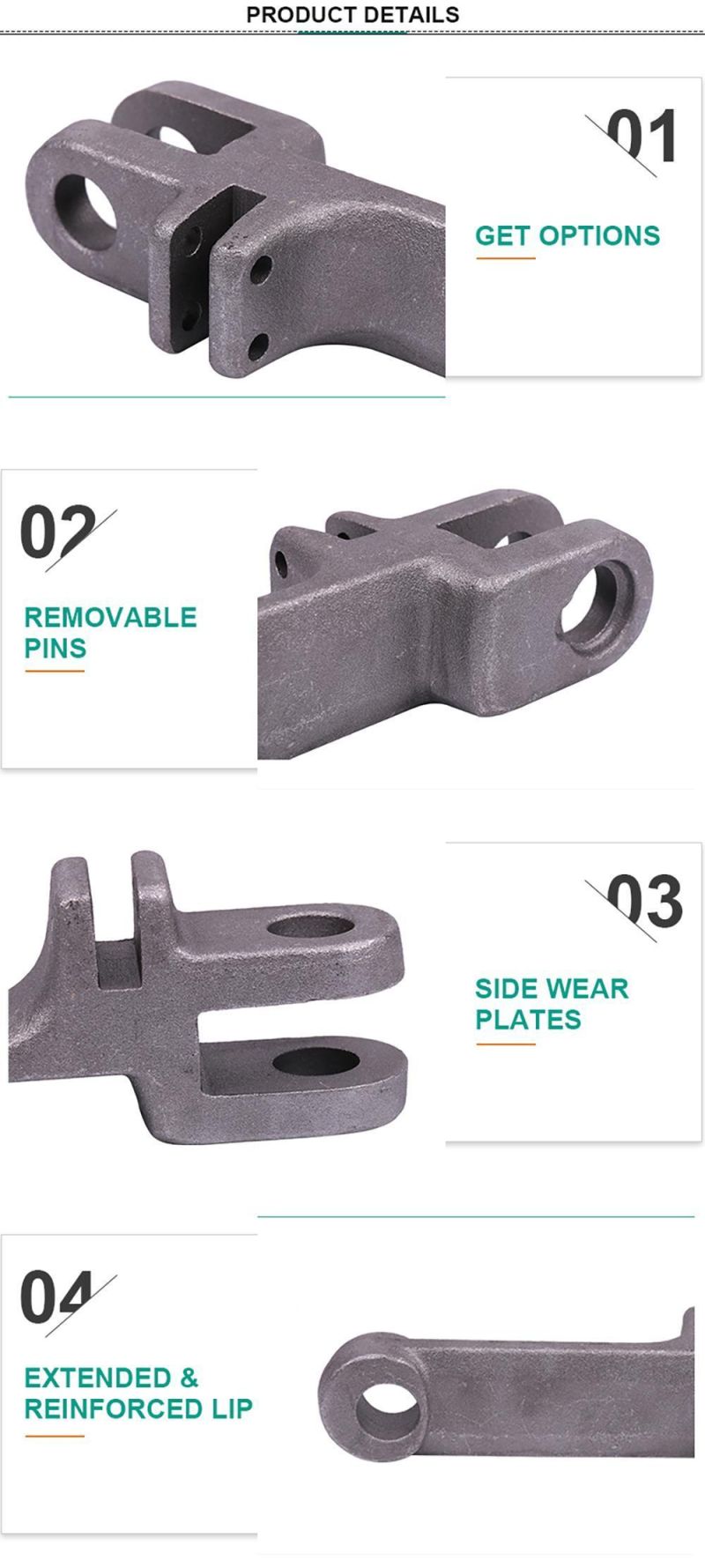

Product Description

DESCRIPTION

Craft	forging
Model	P100-P260
Material	40Cr(hardness 30-37HRC),35CrMo(hardness38-42HRC), 42CrMo(hardness38-42HRC),20CrMnTi(carburization:45-55HRC,Carburized layer0.35-0.55mm)
Production capacity	120000 pieces/month
OEM/ODM	Available
Heat treatment	Mesh belt continuous operation furnace, stable quality
Testing method	Hardness testing,Mechanical performance testing,Impact test, Magnetic particle inspection

MODEL	P	T	t	h	H	b	d
S16	100	30	15	27	8	16	14
Z16	100	40	18	35	12	20	17
S20	125	34	16	33	10	18	17
Z20	125	50	24	48	15	26	20
S30	142	46	22	49	14	23.5	25
Z30	142	64	28.5	50	18	30.5	25
142N	142	43	19	50	12.2	21	25
YD315	142	60	28	50	15	30	25
X3001	142	35	15	40	13	17	18
3001	142	50	23	40	12	25	21
G261A 142N	142	43	19	50	13	21	25
G262A	142	62	29	51	16	30	25
142STD A-1106	142	43	20	52.5	13	21	25
142HVY A-1110	142	62	28.5	50	16	30	25
142X50X19	142	42	18.5	50	13	20	25
142X55X29	142	62	28.5	55	15.5	30	25
150	150	38	18	40	10	20	18
YD250	150	38	18	40	10	19	18 20
S25	160	48	23	40	13	25	20
Z25	160	58	28	55	18	30	25
P160E	160	43	20	50	12	22	25
MS32	200	42	20	50	12	22	20 25
MS55	200	80	35	70	25	38	28 30 33 35
YD310	200	43	20	47	12	22	20
ML40	200	48	23	58	18	25	25
NJB640	200	52	25	60	25	28	25
3006	200	65	30	70	24	33	28 30 32
MG20	200	70	27	70	20	29	28 30 35
A-1173	142	42	19.5	50	13	21.3	25
A-1174	142	42	19.5	50	13	21.3	25
A-3634	216	64	26	72	20	28.5	35
P260	260	72	32	75	20	34	32
X63	250	60	28	70	20	30	25

About WANXIN
Found in 2003,Hubei Wanxin Precision Casting&Forging Inc. is a manufacturer for construction machinery parts such as excavator bucket teeth,bucket adapter,side cutter,side protector;forged pipe clamp
for concrete pump truck;drop forged chain for scraper conveyor.

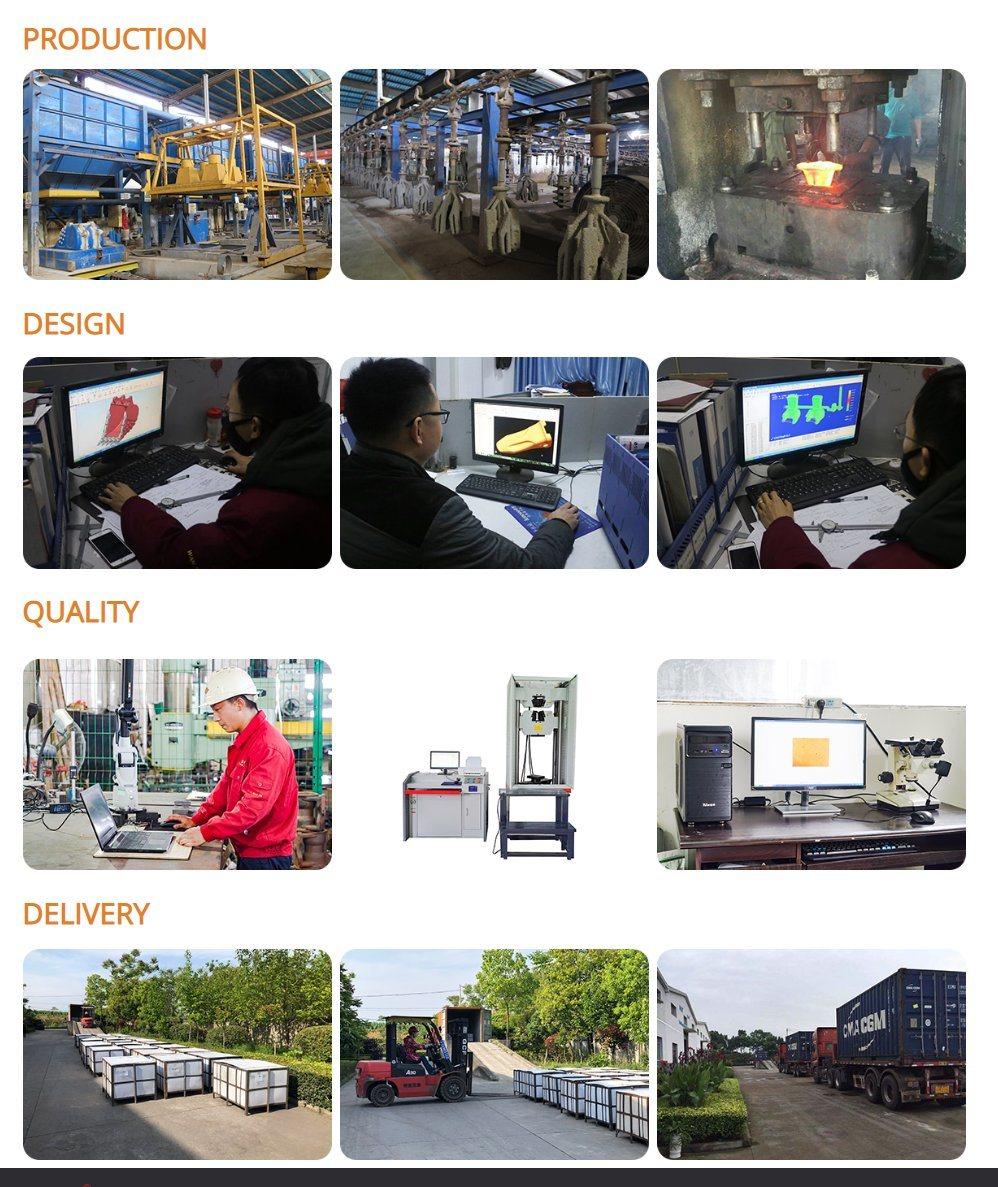

About Production Process

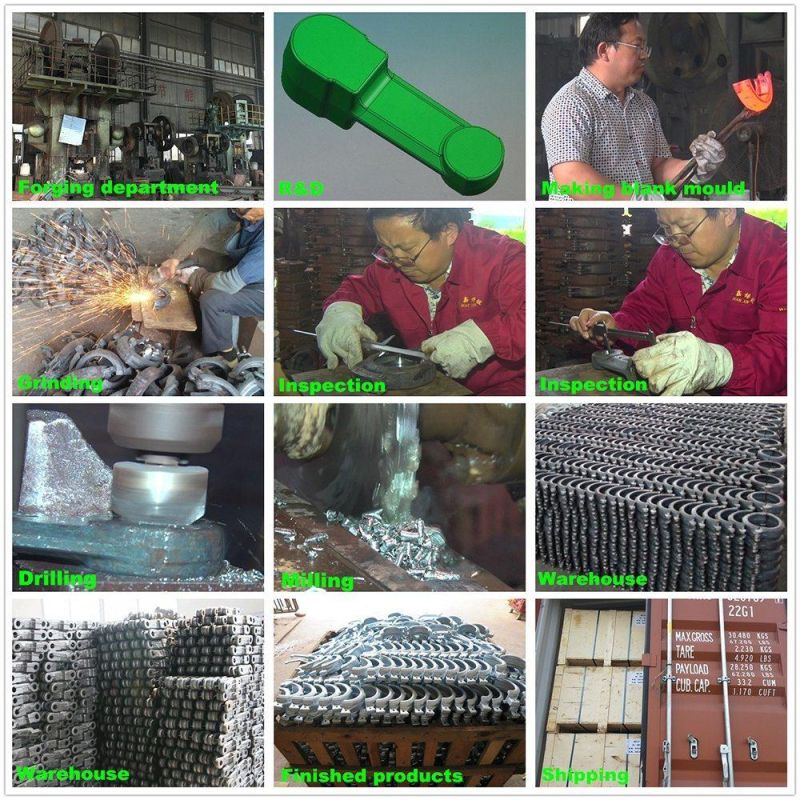

we have 400T/1000T/1600T/2500T friction press machine,one 1250T horizontal forging and upsetting machine,and one 4800T Multidirectional hydraulic forging machine for 0.1KG-50KG forgings.So we can totally make wear parts as customer's drawing or sample.

About Quality Control
we have a QC team and inspection machine like
chemical composition analyzer,mechanical property test machine and 3D detector etc.

About PLUS
Found in 2020,Hubei Plus Import&Export Trading Co.,Ltd. is WANXIN's sales company who is responsible for foreign trade business.

Why Choose WANXIN&PLUS?
1.we are professional manufacturer for 19 years experience in our industry.
2.we have different casting line and forging line for 0.1KG-2TONS parts.
3.we have passed qualification and quality review many times by some famous company like
ESTI,SUNWARD,ZOOMLION,CASCADE etc.

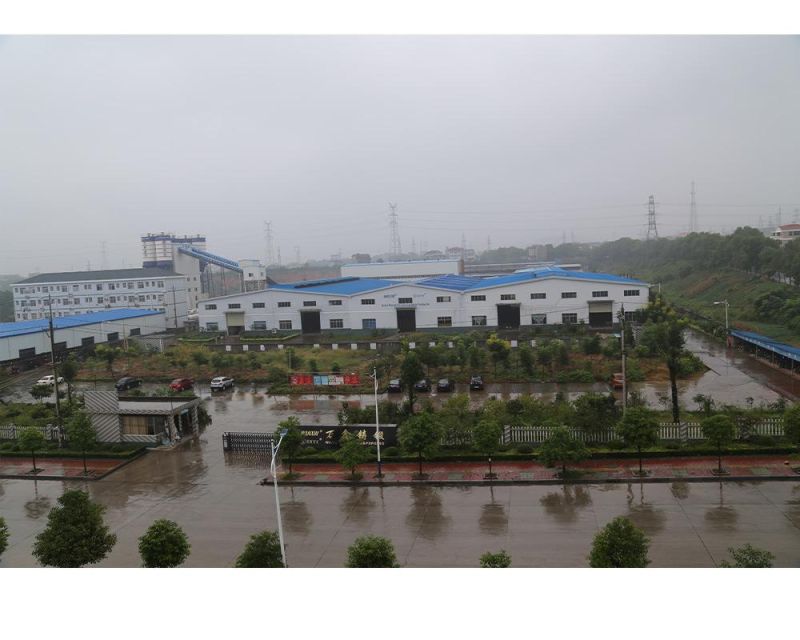

We are in Yichang city,Hubei province-Hometown of the Three Gorged Dam!
Welcome to visit our factory and success together!


FAQ
Q1.Are you a manufacturer or a trading company?
we are totally manufacturer of machinery parts.

Q2.Can i get samples for checking the quality?
we can provide free samples,but you need to pay the freight.

Q3.What's your MOQ?
For normal prodcuts,we don't have MOQ.
For customerized products,we will tell you MOQ based on your drawing.

Q4.What's your delivery time?
it's about 7-45 days based on your quantity.

Q5.What's your payment terms?
Amount<5000usd,t />Amount≥5000USD,T/T 30% as deposit,balance before delivery.

Q6.Can i visit your factory?
we always welcome you to visit our factory.
You can can take air plane to SANXIA airport or take high-speed rail to Yichang station,
we will pick you up in advance.

Q7.What kind of products do you provide?
We mainly produce excavator bucket teeth including casting teeth and forging teeth;
drop forged chain for scraper conveyor;forged pipe clamp for concrete pump;new patented
one piece casting bucket&ripper;and we can also make 0.1KG-2TONS parts as your drawing or sample.

Q8.How long should we take a quotation?
After receiving detailed information,we will quote you within 24 hours.

Q9.How about the quality?
We can produce according to customer's requirement,such as chemical composition and mechanical property.
we are supplier for ESTI,SUNWARD,ZOOMLION,these famous brand etc.

Q10.How about the warranty?
we guarantee all our spare parts against breakage.
if any of these parts break under normal working conditions we will provide a new part free of charge.
