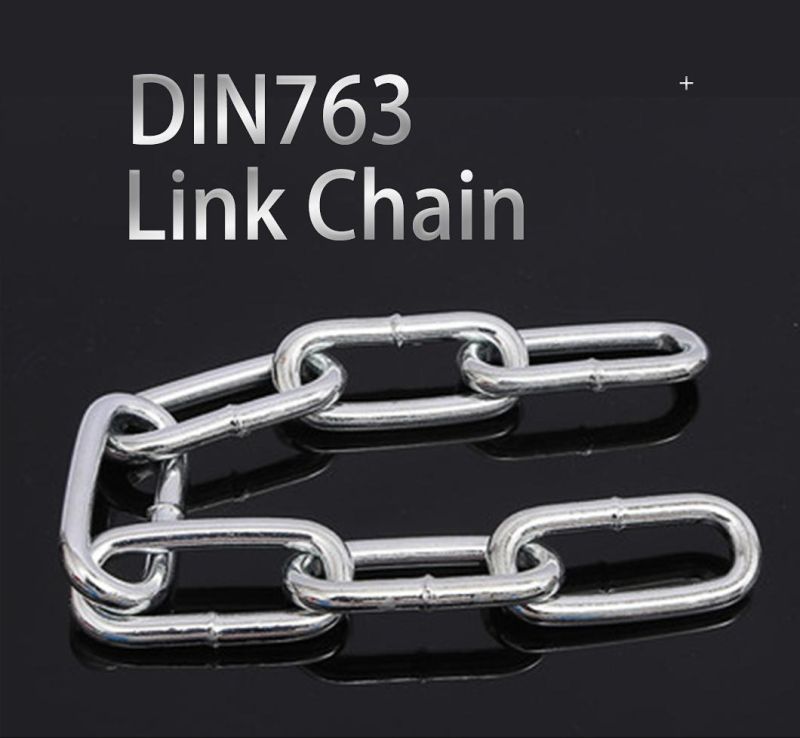

Top-Rated DIN 763 766 Stainless Steel Link Chain 304 316
China Honyuan Machinery Co., Limited- Usage：Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
- Material：Iron
- Surface Treatment：Electroplating
- Feature：Heat Resistant
- Chain Size：1,2"*3,32"
- Structure：Welded Chain
Base Info
- Model NO.：HY630
- Color：Solid Color
- MOQ：1ton
- Transport Package：Reel
- Specification：Q235 Steel
- Trademark：Honyuan
- Origin：China
- HS Code：73121000
- Production Capacity：50000000meter,Year
Description
Overview
Product Description Size Inside Length Outside Width Working Load Breaking Load Grade MM MM MM KG N N 2 12 22 8 7 6 500 1250 A C 2.5 14 24 10 11 10 750 2000 A C 3 16 26 12 16.5 15 1120 2800 A C 3.5 18 28 14 22.5 20 1500 3850 A C 4 19 32 16 30 27 2000 5000 A C 4.5 20 34 18 39.5 35 2500 6300 A C 5 21 35 20 50 43 3150 7750 A C 5.5 23 38.5 22 60.5 52 3800 9500 A C 6 24 42 24 73 63 4500 11500 A C 6.5 26 45.5 26 86 74 5400 13500 A C 7 28 49 28 100 86 6000 15000 A C 8 32 52 32 130 100 8000 20000 A C 8.5 34 56 34 149 125 9000 22500 A C 9 36 59 36 165 141 10000 25000 A C 10 40 65 40 205 175 12500 31000 A C 11 44 72 44 250 211 15000 38000 A C 12 48 78 48 290 255 18000 45000 A C 13 52 82 52 345 295 21200 53000 A C
Payment Term
Weight Per 100M
Certifications
Payment Term
