Five to Six Axes Helicoil Spring Forming Making Machine Car Coiler

Dongguan Hua Yi Da Spring Machinery Co., Ltd.
  • Function：Pressed, Phonation, Buffer, Drive, Restoration, Measurement, Forming
  • Material：Stainless Steel
  • Usage：Industrial, Auto, Furniture, Motorcycle, Home Appliance, Car
  • Load Type：Bend
  • Production Process：Cold Roll
  • Shape：Cylinder

Base Info

  • Model NO.：HYD-QC-10
  • Number of Axes：Five to Six Axes
  • Wire Diameter：M4-M10
  • Feeding Length：Unlimited
  • Machine Dimension：1000*700*1650mm
  • Machine Weight：500kg
  • Machine Voltage：3-380VAC 50Hz
  • Transport Package：Standard Wooden Box
  • Specification：SGS, BV, TUV
  • Trademark：HYD
  • Origin：Dongguan
  • HS Code：84633000
  • Production Capacity：100 PCS,Year

Description

Basic Info.

Model NO. HYD-QC-10 Number of Axes Five to Six Axes Wire Diameter M4-M10 Feeding Length Unlimited Machine Dimension 1000*700*1650mm Machine Weight 500kg Machine Voltage 3-380VAC 50Hz Transport Package Standard Wooden Box Specification SGS, BV, TUV Trademark HYD Origin Dongguan HS Code 84633000 Production Capacity 100 PCS/Year

Product Description

Five to Six Axes Helicoil Spring Forming Making Machine Car Coiler

1.Production Description:

   HYD-QC-10 is with five to six axes,cnc computer,fully automatic helicoil spring machine.The wire diameter of this machine is M4-M10,this is newest design currently.



2.Technical Details


Model
 		HYD-QC-10

Number of Axis
 		6 Axes

Wire Diameter
 		M4-M10

Max Wire Feed Speed
 		141m/min

Wire Diameter
 		M4-M10

Control System
 		1 Set

Tooling Set
 		6 Sets

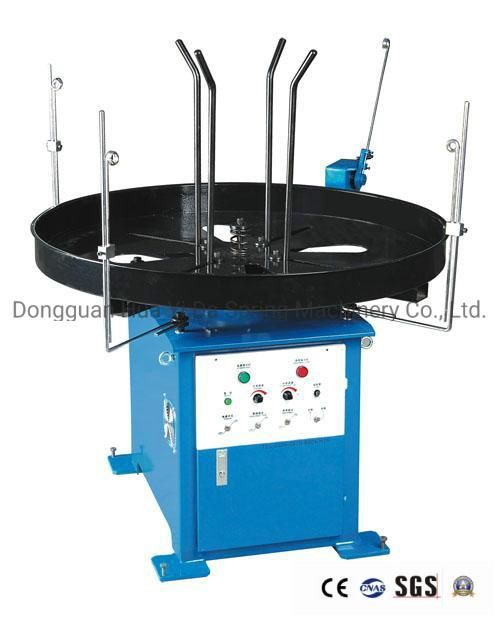

Decoiler Equipment
 		1 Set

Machine Dimension
 		1000*700*1650mm

Machine Weight
 		500KG


3.Packaging and Delivery
Packaging: standard Export Fumugated Wooden Case
Delivery: 2 - 3 Weeks After Payment


Automatic Helicoil Spring Forming Machine Coiler with Five To Six Axes

Five to Six Axes Helicoil Spring Forming Making Machine Car Coiler
Five to Six Axes Helicoil Spring Forming Making Machine Car CoilerFive to Six Axes Helicoil Spring Forming Making Machine Car Coiler

5. FAQ

1. Q: What information will be helping to get an accurate quotation from us?
  A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?
  A:  The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

4. Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.
