2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96
Qingdao Powerful Machinery Co., Ltd.- Usage:Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
- Material:Carbon Steel, Alloy Steel
- Surface Treatment:Hot DIP Galvanized
- Feature:Heat Resistant
- Chain Size:1,4" - 7,8"
- Structure:Welded Chain
Base Info
- Color:Solid Color
- Condition:New
- Inside Length:1.24" - 3.03"
- Inside Width:0.38" - 1.08"
- Sample:Available
- Working Load Limit:2600 - 24500 Lbs
- Proof Test Min:3900 - 36750 Lbs
- Breaking Force Min:7800 - 73500 Lbs
- Safety Factor:4:1
- Finish:Zinc, Plain, High Polish
- Surface:Self Colored, Galvanized, Hot DIP Galvanized, etc.
- Delivery Time:in 30 Days
- Payment:30% Prepaid
- Certifications:BV, ISO, CE, SGS, etc.
- Customized Service:Available
- Quality:Strictly Tested and Controled
- Transport Package:Nude Package, Steel Drum, Steel Reel, etc.
- Specification:7 - 22 MM
- Trademark:Powerful Machinery
- Origin:China
- HS Code:7315820000
- Production Capacity:1000 Ton,Month
Description
Basic Info.
Color Solid Color Condition New Inside Length 1.24" - 3.03" Inside Width 0.38" - 1.08" Sample Available Working Load Limit 2600 - 24500 Lbs Proof Test Min 3900 - 36750 Lbs Breaking Force Min 7800 - 73500 Lbs Safety Factor 4:1 Finish Zinc, Plain, High Polish Surface Self Colored, Galvanized, Hot DIP Galvanized, etc. Delivery Time in 30 Days Payment 30% Prepaid Certifications BV, ISO, CE, SGS, etc. Customized Service Available Quality Strictly Tested and Controled Transport Package Nude Package, Steel Drum, Steel Reel, etc. Specification 7 - 22 MM Trademark Powerful Machinery Origin China HS Code 7315820000 Production Capacity 1000 Ton/MonthProduct Description
2mm-26mm G30/G43/G70 Professional Chain Factory For Electro Galvanized Smooth Proof Coil Chain NACM96![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/e6/cc/42/a4/b04055c67537c1b13795d0f1b8ac4efb.jpg)

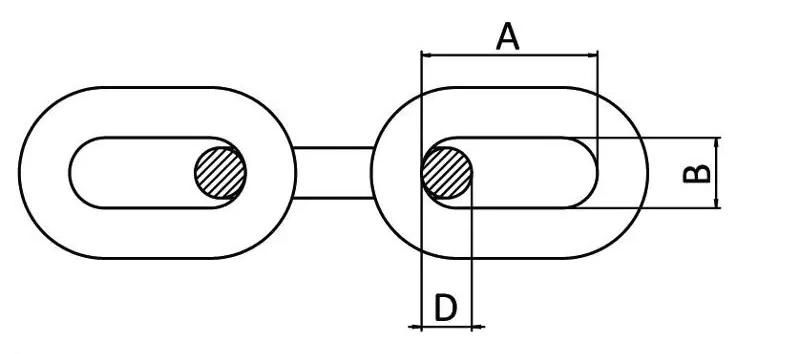

Nominal Size | Material | Working Load Limit | Proof Test | Breaking Force | Inside Length | Inside Width | |||||||
D | Diameter | (Min) | (Min) | A | B | ||||||||
MM | IN | MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
7 | 1/4 | 7 | 0.276 | 1180 | 2600 | 17.3 | 3900 | 34.6 | 7800 | 31.5 | 1.24 | 9.8 | 0.38 |
8.7 | 5/16 | 8.7 | 0.343 | 1770 | 3900 | 26 | 5850 | 52 | 11700 | 32.8 | 1.29 | 11.2 | 0.44 |
10 | 3/8 | 10.3 | 0.406 | 2450 | 5400 | 36 | 8100 | 72 | 16200 | 35 | 1.38 | 14 | 0.55 |
11.9 | 7/16 | 11.9 | 0.468 | 3270 | 7200 | 48 | 10800 | 96 | 21600 | 41.6 | 1.64 | 16.6 | 0.65 |
13 | 1/2 | 13.5 | 0.531 | 4170 | 9200 | 61.3 | 13800 | 122.6 | 27600 | 45.5 | 1.79 | 18.2 | 0.72 |
16 | 5/8 | 16 | 0.63 | 5910 | 13000 | 86.5 | 19500 | 173 | 39000 | 56 | 2.2 | 20 | 0.79 |
20 | 3/4 | 20 | 0.787 | 9180 | 20200 | 134.7 | 30300 | 269.4 | 60600 | 70 | 2.76 | 25 | 0.98 |
22 | 7/8 | 22 | 0.866 | 11140 | 24500 | 163.3 | 36750 | 326.6 | 73500 | 77 | 3.03 | 27.5 | 1.08 |

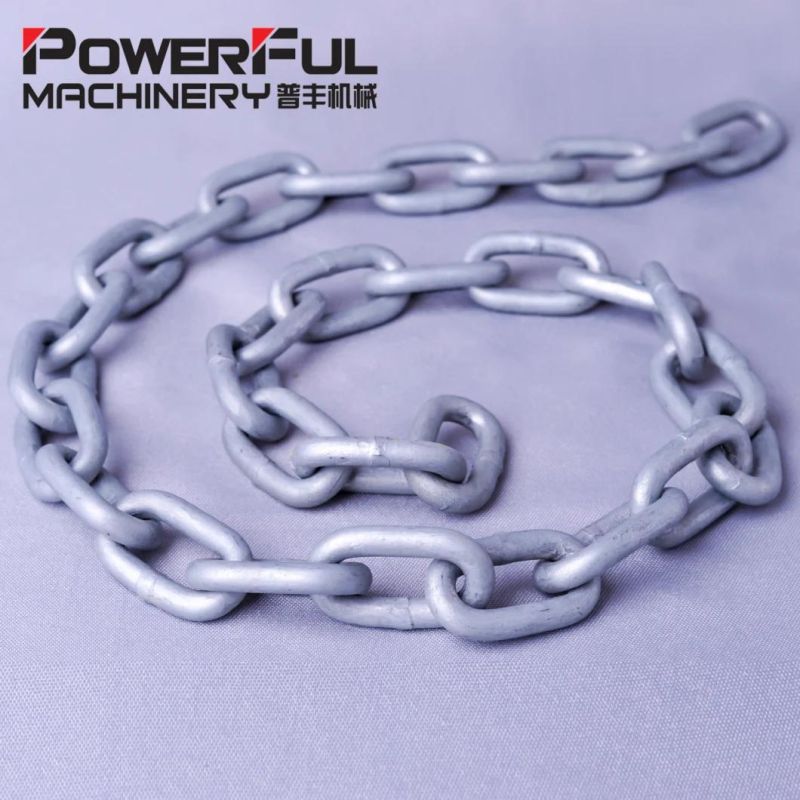

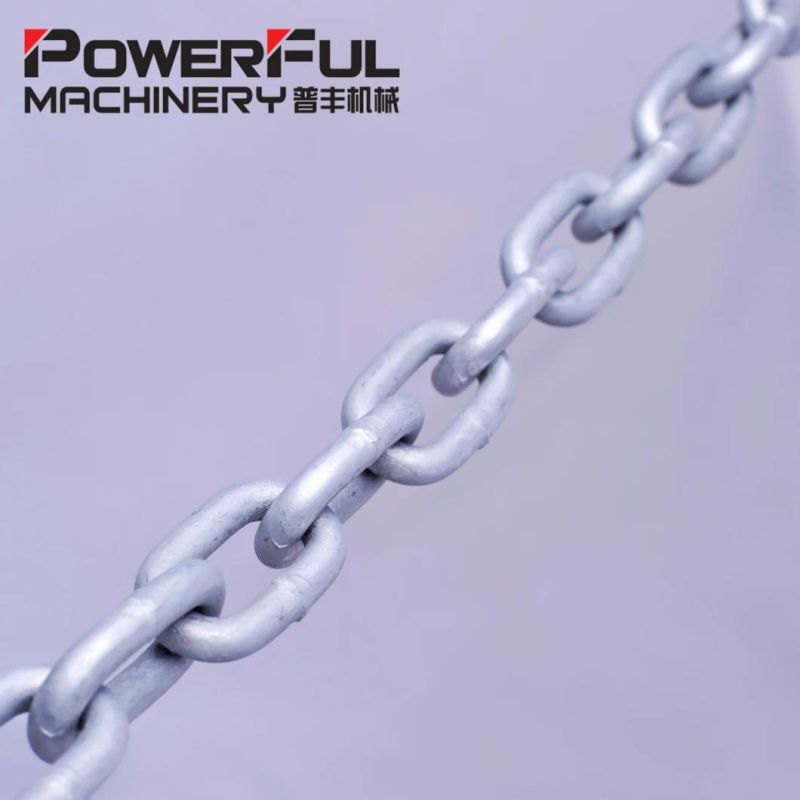

Features
*High strength carbon steel or alloy steel chain with good wear charcteristics ideal for most tie down applications are widely used in industry, construction, agricultural and lumbering operations.
*Available in self-colored, shot blast, electro-galvanized, powder coated and hot galvanized finishes.
*Not Recommended for overhead Lifting. For these applications, G80 or G100 Alloy Chain should be used.
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/cd/77/df/e1/9edf1287850e28d20ed56192622ab67e.jpg)
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/a1/a8/c9/08/5842347522428184f669acb600d186e4.jpg)
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/02/61/c7/7b/977d72660ac12e4d2f72c8ddc5e3f577.jpg)
Packaging
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/d8/35/c3/c0/1b11dd02d7ec64c90e6494fcb11018f4.jpg)
Hot Sale Products
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/5f/1c/ff/b0/20fc6a7e20f7600fc422258da22e046e.jpg)

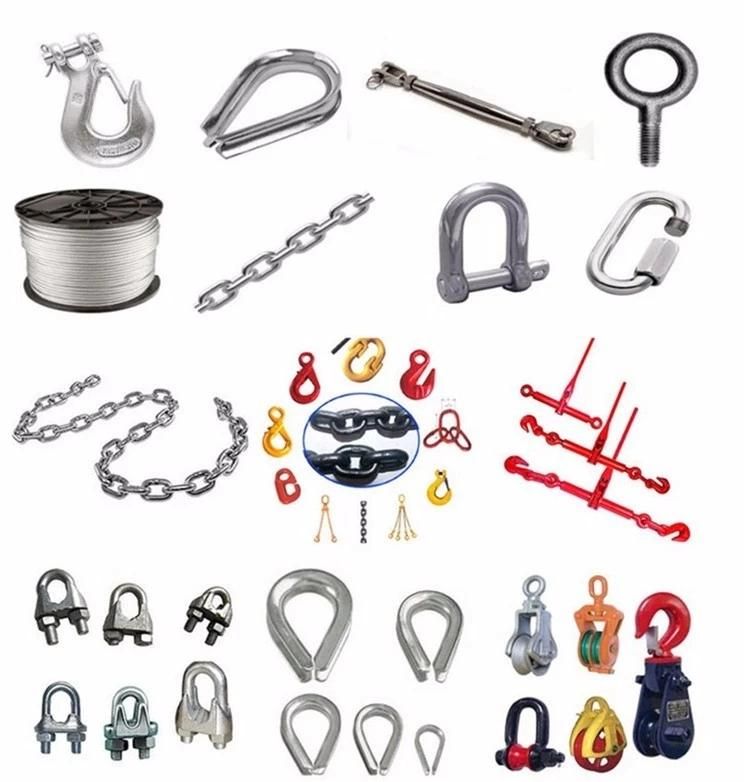

Our most popular products include Chains, Anchor Chains, Hooks, Shackles, Turnbuckles, Load Binders, Eye Bolts & Eye Nuts, Wire Rope, Wire Rope Clips, Wire Rope Thimble, Swivels, Snap Hook, Rings and links, Webblings, Pulley&Block, Sockets, Stainless Steel Products, etc.
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/bb/af/62/b2/482ef1226aac949a852968a7d8fe7470.jpg)
NOTE
*The sizes are various.
*Customized service is available.
*The materials can be high quality Carbon Steel, Alloy Steel, Stainless Steel, Plastic, Polyester Fibre, etc.

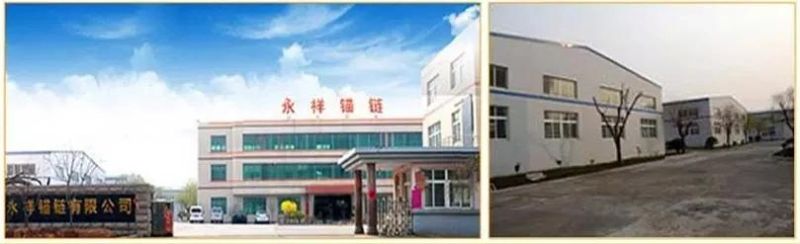

Our Factory
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/54/2e/22/f9/63220b154d1a7bcd4f8090a172519292.jpg)
We started as an anchor chain factory, Yongxiang Anchor Chain Co. Ltd, about 20 years ago in Qingdao, China, and gradually developed into a big manufacturer of marine hardware supplies. At the same time, in order to meet the growing demands from our clients in various business areas, we established our tradingbrand - Powerful Machinery, and expanded our scope to rigging hardware and fasteners, and also set up solid partnership with other factories.
Now we're proud to say that POWERFUL MACHINERY has ranked as the top supplier on marine & rigging hardware in the northern China!
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/0e/7f/33/6f/f10a266da2cbf0fa5ae2512a7492bf1a.jpg)

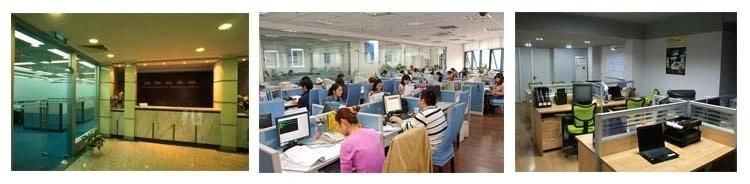

Our Office
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/50/0a/b7/33/e174275af627b8c273beb968f909db07.jpg)
Qingdao Powerful Machinery Co., Ltd has eastablished for about 11 years, we specializing in producing and exporting rigging hardwares, high grade chains, blocks & pulleys, steel wire rope, stainless steel and so on. Our products are all designed, manufactured and assembled under strict quality control. We have a professional QC team to do inspections. And we can offer favorable prices, good quality and one-stop sourcing service. We are all ready for every customer and to be the pioneer is our mission.
All members of our company will be very honored if you contact us. We are looking forward to cooperating with you in the near future!
Exhibitions
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/de/e3/38/49/6f5e0a2e4d002cfee3237071f54a649f.jpg)
![2mm-26mm G30/G43/G70 Professional Chain Factory for Electro Galvanized Smooth Proof Coil Chain Nacm96](http://www.966507.com/uploads/image/2021/c3/b2/a3/cb/e9fe823474b09d2ff660353a99f6240f.jpg)
Powerful Machinery FAQ
1.Are you a factory or trading company?
We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies.At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories.Now we're proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in China.
2.Where is your factory located?
Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You're welcomed to visit us any time for future cooperation.
3.What products do you supply?
As mentioned above, Qingdao Powerful Machinery is capable of supplying:
All kinds of marine supplies, Chains, Rigging hardwares, Fasteners and related hardwares
4.Do you produce them all?
We produce all kinds of chains in our factory, other products in our partner factories.By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.
5.How do you control quality?
By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery.For partner factories, we use a comprehensive system of quality standards to evaluate the production line.Also our professional QC team will implement the onsite check and finish product check before delivery.
6.Why are you more trustworthy than the other factories?
Quick Response:
We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we'll figure out a one-stop solution for your business to save your time and effort.
7.How do I pay?
We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
8.How do I receive the goods?
With our professional transport agents, we are capable of delivery products to most ports all over the world.Door-to-door service is also supported.
FOB, C&F, CIF are most commonly used trade terms.
Our Advantages
1. Quick Response:
Reply your inquiry in 24 working hours.
2. Full English Service:
Experienced staff answer all of your questions in professional and fluent English.
3. OEM & ODM:
Customized size, length and design are available.
4. Creative One-Stop Solutions:
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
We Listen, We Learn & We Love our Costumers!
Best Service, Best Quality & Best Price will be offered!
