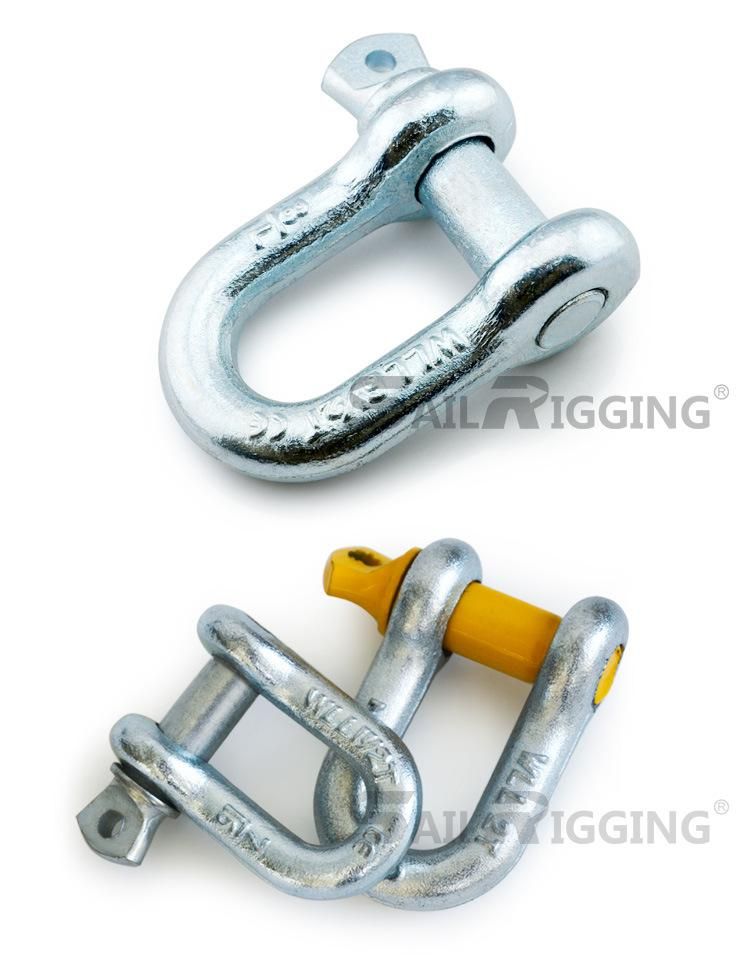

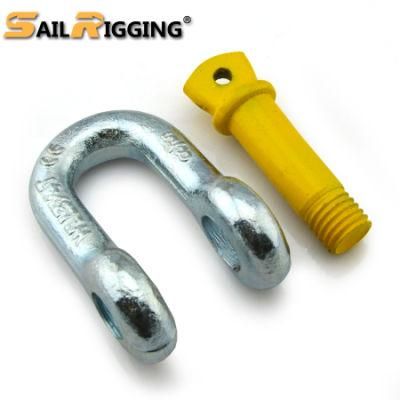

ISO Alloy Steel 17tons Forged Colorpin G210 Metal Shackles
Qingdao Sail Rigging Co., Ltd.- Material：Steel
- Shape：D Shape, D
- Usage：Industrial
- Color：Yellow
- Condition：New
- Type：Us Type
Base Info
- Model NO.：G-210
- Surface：Galvanized
- Certification：CE, ISO, SGS
- Package：Carton and Iron Pallet
- Transport Package：Sack+Pallet
- Specification：CE, ISO, SGS
- Trademark：sail rigging
- Origin：China
- HS Code：73269090
- Production Capacity：3 Ton,Day
Description

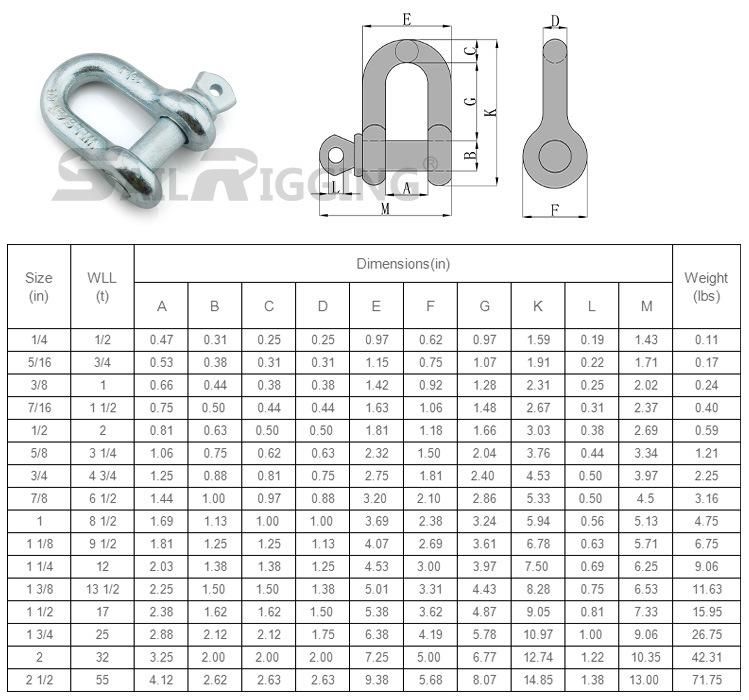

DimensionsWeight Each size load (in.) (lbs.) (in.) limit (tons) A B C D E F G K L M G-210 S-210 1/4 1/2 0.47 0.31 0.25 0.25 0.97 0.62 0.97 1.59 0.19 1.43 0.11 5/16 3/4 0.53 0.38 0.31 0.31 1.15 0.75 1.07 1.91 0.22 1.71 0.17 3/8 1 0.66 0.44 0.38 0.38 1.42 0.92 1.28 2.31 0.25 2.02 0.28 7/16 11/2 0.75 0.5 0.44 0.44 1.63 1.06 1.48 2.67 0.31 2.37 0.43 1/2 2 0.81 0.63 0.5 0.5 1.81 1.18 1.66 3.03 0.38 2.69 0.59 5/8 31/4 1.06 0.75 0.63 0.63 2.32 1.5 2.04 3.76 0.44 3.34 1.25 3/4 43/4 1.25 0.88 0.81 0.75 2.75 1.81 2.4 4.53 0.5 3.97 2.63 7/8 61/2 1.44 1 0.97 0.88 3.2 2.1 2.86 5.33 0.5 4.5 3.16 1 81/2 1.69 1.13 1 1 3.69 2.38 3.24 5.94 0.56 5.13 4.75 11/8 91/2 1.81 1.25 1.25 1.13 4.07 2.69 3.61 6.78 0.63 5.71 6.75 11/4 12 2.03 1.38 1.38 1.25 4.53 3 3.97 7.5 0.69 6.25 9.06 13/8 131/2 2.25 1.5 1.5 1.38 5.01 3.31 4.43 8.28 0.75 6.83 11.63 11/2 17 2.38 1.63 1.62 1.5 5.38 3.62 4.84 9.05 0.81 7.33 15.95 13/4 25 2.88 2 2.12 1.75 6.38 4.19 5.78 10.97 1 9.06 26.75 2 32 3.25 2.25 2.36 2.1 7.25 5 6.77 12.74 1.13 10.35 42.31 21/2 55 4.12 2.75 2.63 2.63 9.38 5.68 8.07 14.85 1.38 13 71.75
