Factory Directly Quality G80 Alloy Steel Lifting Sling Load Chain
Weifang First Rigging Co., Ltd.- Usage：Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain, Lifting Chain
- Material：Alloy
- Surface Treatment：Polishing
- Feature：Heat Resistant
- Chain Size：6mm-42mm
- Structure：Welded Chain
Base Info
- Model NO.：FST-G80
- Color：Self Color
- Process：Welded+Heat Treatment+Surface Treatment
- Certificate：ISO9001
- Brand：First Rigging
- Trade Term：Fob, CFR, CIF
- HS：73158200
- Payment：T,T
- Manufacturer：Yes
- Lead Time：Within 15 Works Days After Receive Deposit
- Product Name：Mine Chain
- Place of Origin：China
- Packaging：Packed in Wooden Case,Iron Drum, Then in Pallets
- Transport Package：Packed in Wooden Case,Iron Drum, Then in Pallets
- Specification：G80
- Trademark：First Rigging
- Origin：Shandong, China
- HS Code：7315820000
- Production Capacity：150 Tons,Month
Description
unit weight
(kg/m)nominal
d (mm) tolerance
(mm) p (mm) tolerance
(mm) inner W1
min. (mm) outer W2
max. (mm) 6 ± 0.24 18 ± 0.5 7.8 22.2 0.8 7 ± 0.28 21 ± 0.6 9.1 25.9 1.1 8 ± 0.32 24 ± 0.7 10.4 29.6 1.4 10 ± 0.4 30 ± 0.9 13 37 2.2 13 ± 0.52 39 ± 1.2 16.9 48.1 4.1 16 ± 0.64 48 ± 1.4 20.8 59.2 6.2 18 ± 0.9 54 ± 1.6 23.4 66.6 8 19 ± 1 57 ± 1.7 24.7 70.3 9 20 ± 1 60 ± 1.8 26 74 9.9 22 ± 1.1 66 ± 2.0 28.6 81.4 12 23 ± 1.2 69 ± 2.1 29.9 85.1 13.1 24 ± 1.2 72 ± 2.1 30 84 14.5 25 ± 1.3 75 ± 2.2 32.5 92.5 15.6 26 ± 1.3 78 ± 2.3 33.8 96.2 16.8 28 ± 1.4 84 ± 2.5 36.4 104 19.5 30 ± 1.5 90 ± 2.7 37.5 105 22.1 32 ± 1.6 96 ± 2.9 41.6 118 25.4 36 ± 1.8 108 ± 3.2 46.8 133 32.1 38 ± 1.9 114 ± 3.4 49.4 140.6 35.8 40 ± 2 120 ± 4.0 52 148 39.7 45 ± 2.3 135 ± 4.0 58.5 167 52.2 48 ± 2.4 144 ± 4.3 62.4 177.6 57.2 50 ± 2.6 150 ± 4.5 65 185 62
The technological requirements

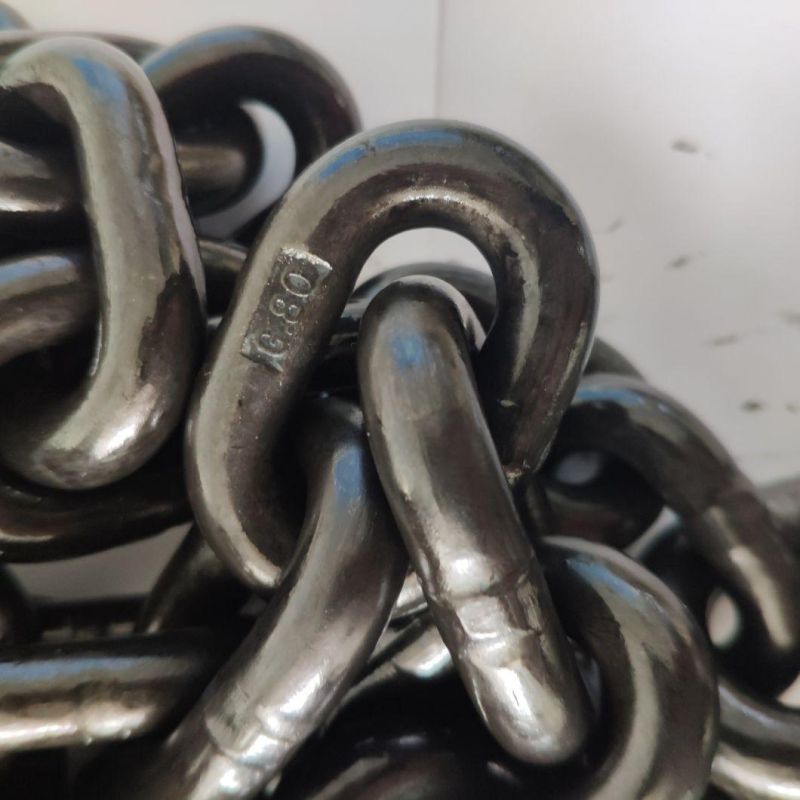

In the manufacturing process, only the use of high-quality alloy steel, and strict control of the process, the chain up to G80. Our G80 chain achieves a factor of 4 safety. The surface of the chain can be polished, blackened, hot-dip galvanizing, painting, hanging plastic, electroplating, dachro and other processing. We can also print "G80" or other marks according to your request.
Company profile
Founded in 1998, Weifang First Rigging Co., Ltd., formerly known as Changle Chain Factory, is located in Changle Country of Shandong Province known as "The Gem City of China", and specializes in producing and marketing chain and rigging related products at home and abroad.
Our company has independent import and export operating rights, and can handle the certifications of CCS, LR, DNV and other famous classification societies for products. Our products are sold to dozens of countries such as Europe, America and Middle East as well as more than ten provincial and municipal regions in China, and. are widely applied to the fields of ships, steel, petrochemical industry, coal mine, etc.
In the principle of "Quality-honoring & Promise-keeping", our company meets the requirements of all the customers through service innovation, changes the original production state through technical innovation, improves the product quality through process innovation, and continuously goes to standardization, elaboration, process and scientification through the business thought of constant innovation. Absolute sincerity will move a heart of stone. Our company is willing to cooperate with domestic and foreign new/old customers in utmost sincerity, to create a common future!

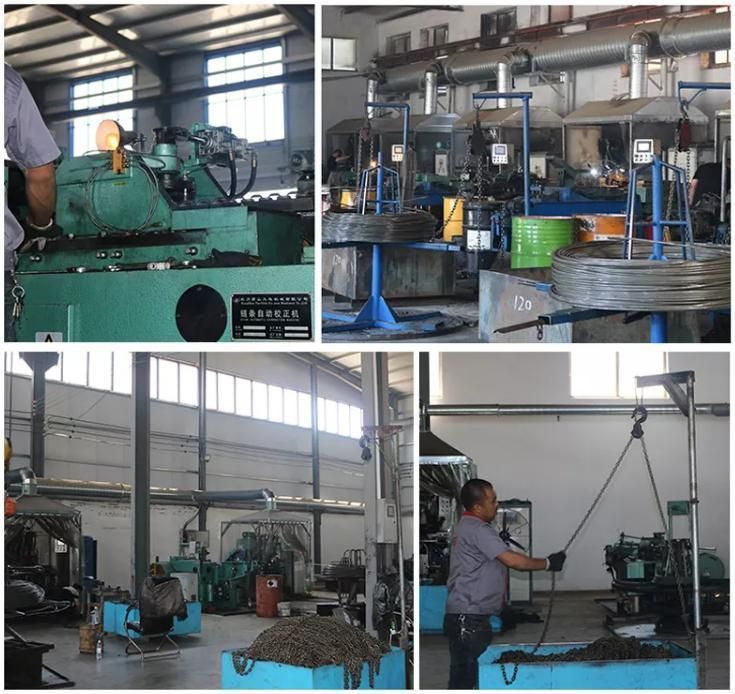

Factory production picture

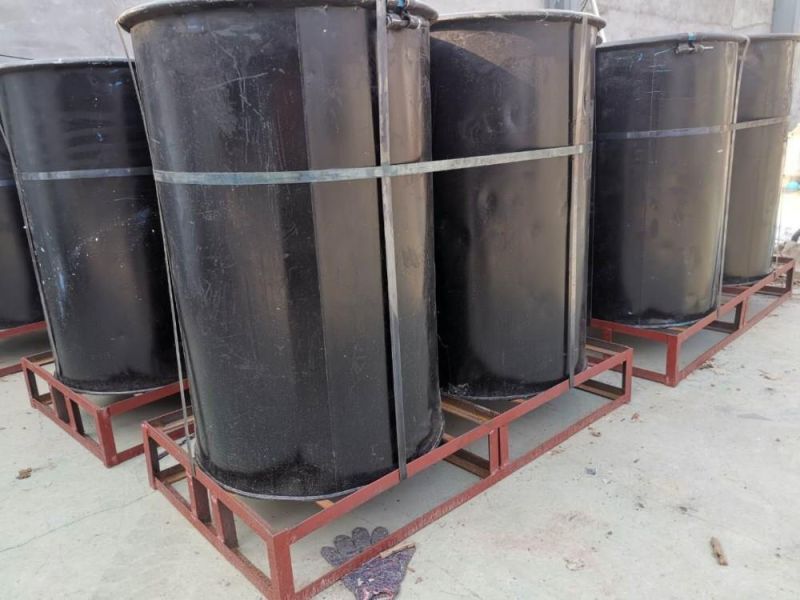

Packaging and delivery: Packing details: in bulk, in wooden cases, in iron drums, and then in pallets or according to your requirements Delivery details: usually within 15-20 working days after receipt of your irrevocable L/C or advance payment.
(kg/m)
d (mm)
(mm)
(mm)
min. (mm)
max. (mm)
The technological requirements
In the manufacturing process, only the use of high-quality alloy steel, and strict control of the process, the chain up to G80. Our G80 chain achieves a factor of 4 safety. The surface of the chain can be polished, blackened, hot-dip galvanizing, painting, hanging plastic, electroplating, dachro and other processing. We can also print "G80" or other marks according to your request.
Company profile
Founded in 1998, Weifang First Rigging Co., Ltd., formerly known as Changle Chain Factory, is located in Changle Country of Shandong Province known as "The Gem City of China", and specializes in producing and marketing chain and rigging related products at home and abroad.
Our company has independent import and export operating rights, and can handle the certifications of CCS, LR, DNV and other famous classification societies for products. Our products are sold to dozens of countries such as Europe, America and Middle East as well as more than ten provincial and municipal regions in China, and. are widely applied to the fields of ships, steel, petrochemical industry, coal mine, etc.
In the principle of "Quality-honoring & Promise-keeping", our company meets the requirements of all the customers through service innovation, changes the original production state through technical innovation, improves the product quality through process innovation, and continuously goes to standardization, elaboration, process and scientification through the business thought of constant innovation. Absolute sincerity will move a heart of stone. Our company is willing to cooperate with domestic and foreign new/old customers in utmost sincerity, to create a common future!
Factory production picture
Packaging and delivery: Packing details: in bulk, in wooden cases, in iron drums, and then in pallets or according to your requirements Delivery details: usually within 15-20 working days after receipt of your irrevocable L/C or advance payment.
Our services
We can make the products according to customer's requirement.
2. We have more than 50 professional technical team to provide the best after-sales service.
3. Fast delivery time.
4. We have CE, TUV and SGS certifications.
We are a professional crane manufacturer with more than 20 years of experience since 1998.

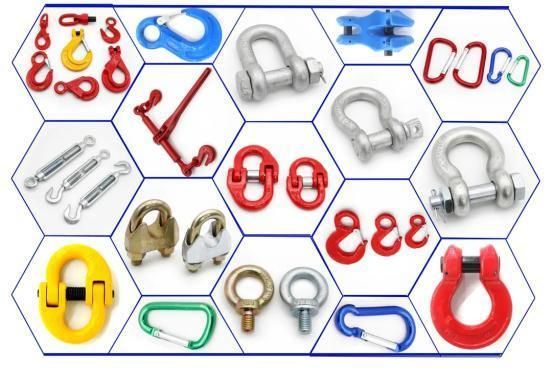

We also have many different products.
