• Model NO.：3mm--50mm
• Product Name：DIN741 Rigging Hardware Galvanized Fasteners Wire
• Process：Casting
• Size：3mm-50mm
• Material Type：Malleable
• Type：DIN741
• Color：Zinc Plated
• U Bolt：Forged
• Surface：Electric Galvanized
• MOQ：1000 PCS
• Samples：for Free
• Packaging：PP Bag Then on Pallet(Carton on Pallet)
• Dlivery Time：About 15-30 Days After Confirmed The Order
• Place of Origin：Shandong, China (Mainland)
• Transport Package：Carton or Bag, Then in Pallet.
• Specification：3mm-50mm
• Trademark：customized
• Origin：Shandong, China
• HS Code：7326909000
• Production Capacity：25tons Per Month

Basic Info.

Model NO. 3mm--50mm Product Name DIN741 Rigging Hardware Galvanized Fasteners Wire Process Casting Size 3mm-50mm Material Type Malleable Type DIN741 Color Zinc Plated U Bolt Forged Surface Electric Galvanized MOQ 1000 PCS Samples for Free Packaging PP Bag Then on Pallet(Carton on Pallet) Dlivery Time About 15-30 Days After Confirmed The Order Place of Origin Shandong, China (Mainland) Transport Package Carton or Bag, Then in Pallet. Specification 3mm-50mm Trademark customized Origin Shandong, China HS Code 7326909000 Production Capacity 25tons Per Month

Product Description

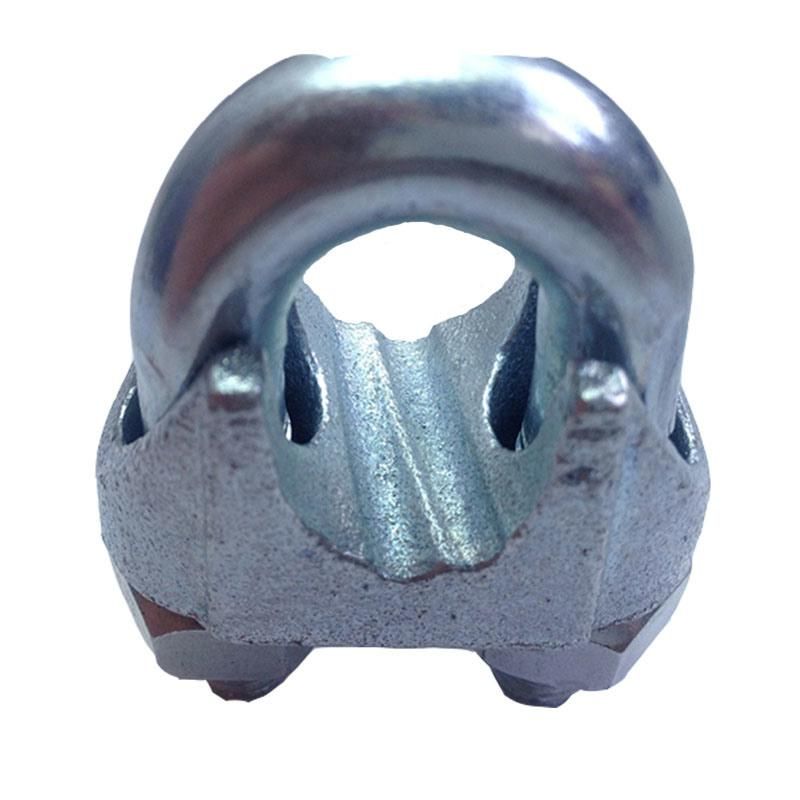

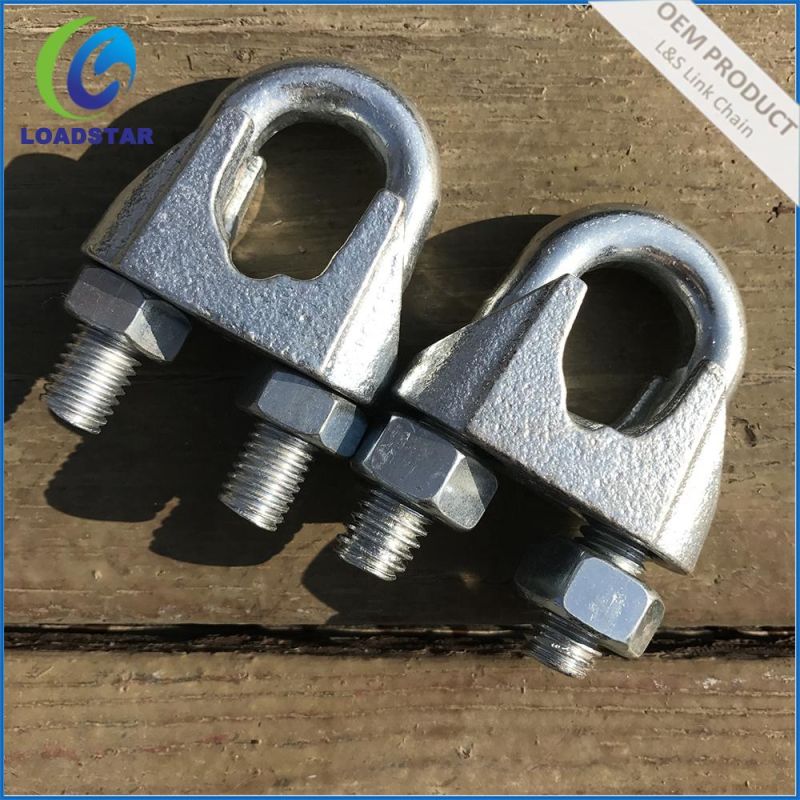

             Din741 Rigging Hardware Galvanized Fasteners Wire Rope Clips


Din741 Rigging Hardware Galvanized Fasteners Wire Rope Clips

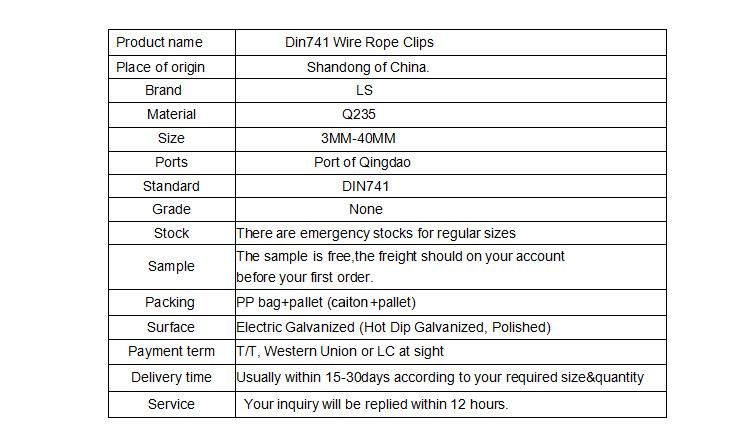

Material; Malleable(Carton steel, Alloy Steel, Stainless steel304/316).

Size: 3mm-50mm

Surface: Electro Galivanized(Hot Dip Galivanized, Polished).

Standard: DIN741

Stock: There are emergency stocks for regular sizes.

Packing method: PP bag+pallet(Catton+pallet).

Using range: Fastener in Industry and Construction; Suitable for wire rope.

Sample: The sample is free, the freight should on your account before your first order.

Payment term: 30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.

Delivery time; Usually within 15-30days according to your required size&quantity.

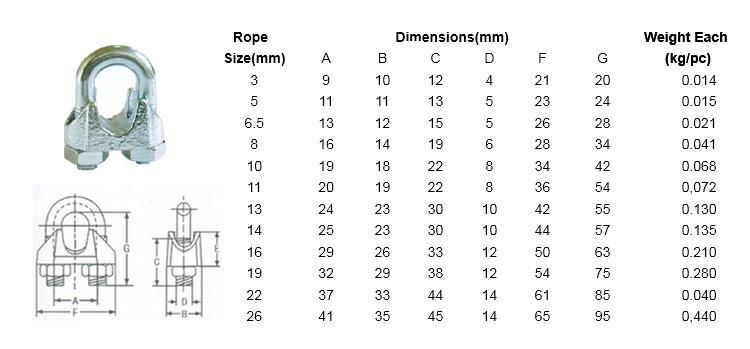

size	in	A	B	C	D	E	F	G	100/WTkg
mm	1/8	9	10	12	4	10	21	16	1.4
3	3/16	11	11	13	5	10	23	19	1.5
5	1/4	13	12	15	5	11	26	23	2.1
6.5	5/16	16	14	19	6	15	30	28	4.1
8	3/8	19	18	22	8	17	34	34	6.8
10	7/16	20	19	22	8	18	36	36	7.2
11	1/2	24	23	30	10	21	42	45	13
13	9/16	25	23	30	10	22	44	47	13.5
14	5/8	29	26	33	12	26	50	51	21
19	3/4	32	29	38	12	30	54	63	28
22	7/8	37	33	44	14	34	61	71	40
26	1	41	35	45	14	37	65	81	44
30	11/8	48	37	50	16	43	74	94	66
34	11/4	52	42	55	16	50	80	104	85
40	11/2	58	45	60	16	55	88	124	104

Wire rope clips are widely used in various industries.

Fastener in Industry and Construction; Suitable for wire rope.

We produce best and professional service. We are friend of factories, and hope will be your friend and partner on business.

Din741 Rigging Hardware Galvanized Fasteners Wire Rope Clips
,
