• Color：Solid Color
• Name：G80 Chain
• Chain Style：Link Chain
• Surface：Galvanizing, Black, Polishing
• Chain Material：20mn2
• Chain Diameter：6-22mm
• Chains Init Weight：22kg
• Breaking Load：125kn
• Chain Packing：Iron Drum
• Warranty：One Year
• Delivery Time：5 Days
• Transport Package：Iron Drum
• Specification：CE ISO
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：7515119000
• Production Capacity：4500mt,Day

Basic Info.

Color Solid Color Name G80 Chain Chain Style Link Chain Surface Galvanizing, Black, Polishing Chain Material 20mn2 Chain Diameter 6-22mm Chains Init Weight 22kg Breaking Load 125kn Chain Packing Iron Drum Warranty One Year Delivery Time 5 Days Transport Package Iron Drum Specification CE ISO Trademark HUGO Origin Shanghai, China HS Code 7515119000 Production Capacity 4500mt/Day

Product Description

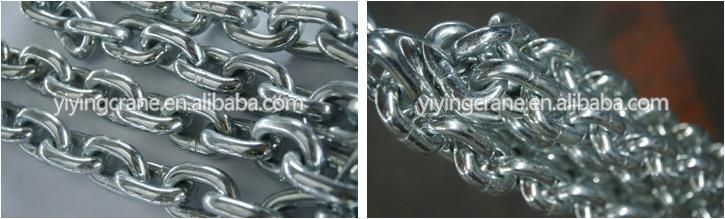

Alloy Steel High Tensile G80 Black Link Chain

Details:
Lifting g80 chains name: g80 chain
Lifting g80 chains style: G80 iron link chain

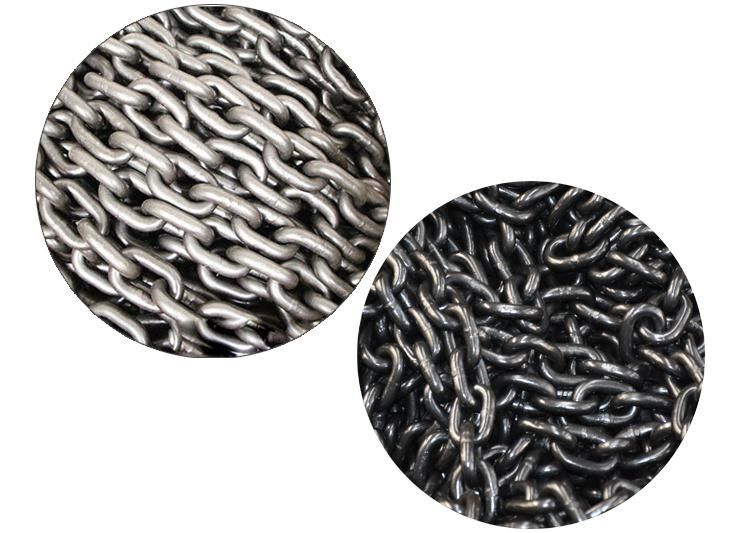

Lifting g80 chains surface: galvanizing, black, polishing
Lifting g80 chains material: 20Mn2
Lifting g80 chains diameter: 6-22mm or to as your request
Lifting g80 chains init weight: 2.2kg/m
Lifting g80 chains breaking load: 125KN
Lifting g80 chains packing: steel drums with pallets



Size(G80)	Unit Weight	pitch	width	Breaking force	Work Load	Test Load	Quantity	Unit Price (fob shanghai)	Total Amount
8mm	1.38kg/m	10mm	48mm	80.4kn	2.0t	27kn	1000m	usd2.40/m	usd2400
10mm	2.20kg/m	30mm	35mm	126kn	3.20t	76kn	1000m	usd2.74/m	usd2740
13mm	3.80kg/m	39mm	46mm	214kn	5.30t	128kn	1000m	usd4.92/m	usd4920
16mm	5.70kg/m	48mm	56mm	320kn	8.00t	192kn	1000m	usd7.86/m	usd7860
18mm	6.85kg/m	548mm	63mm	400kn	10.00t	250kn	1000m	usd11.93/m	11930usd
20mm	8.60kg/m	60mm	70mm	500kn	12.50t	300kn	1000m	usd16.08/m	usd16080

MARKET:

Asia

Australasia

Central/South America

Eastern Europe

Mid East/Africa

North America

Western Europe



Our service:
1. Many OEM producers choose our products .
2. We have more than 50 professional technical teams, provide best global after-sales service.
3. Fast delivery time.
4. All products have acquired the CE, ISO, PICC.SGS, TUV certificate.
5. We are one of the market leaders in crane hoist designing and manufacturing in China.


1. What is the advantage of your products?
We are professional manufacturer in crane hoist field and market research experience for over 2 decades. We are not only selling lifting devices, but also provide best hoisting solution to our customers all over the world.

2.Can you help me design or modify products as we request?
We have hoist "research and development" capability and efficient team, OEM  & ODM are welcome. We will try our best to make it come true as long as you have a good idea.

3.What is the delivery time?
5 days after payment for the hoists in stock. And due to material shortage or holidays. We will inform you via email or phone immediately
