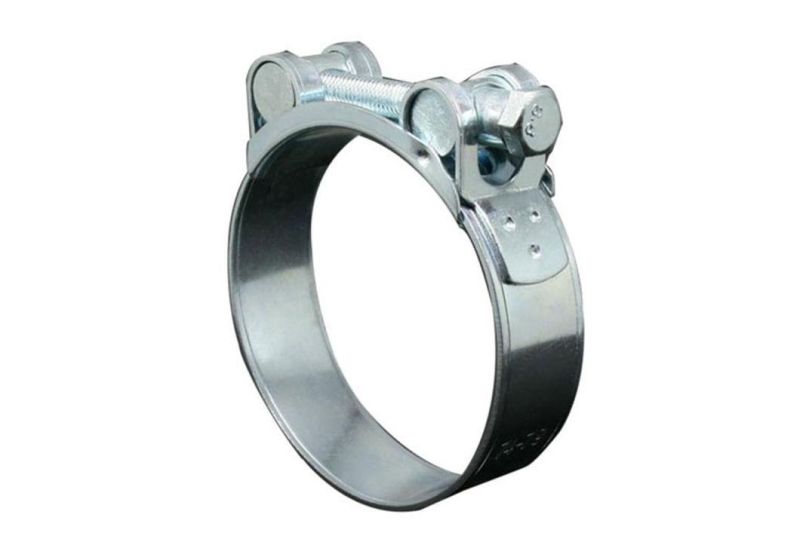

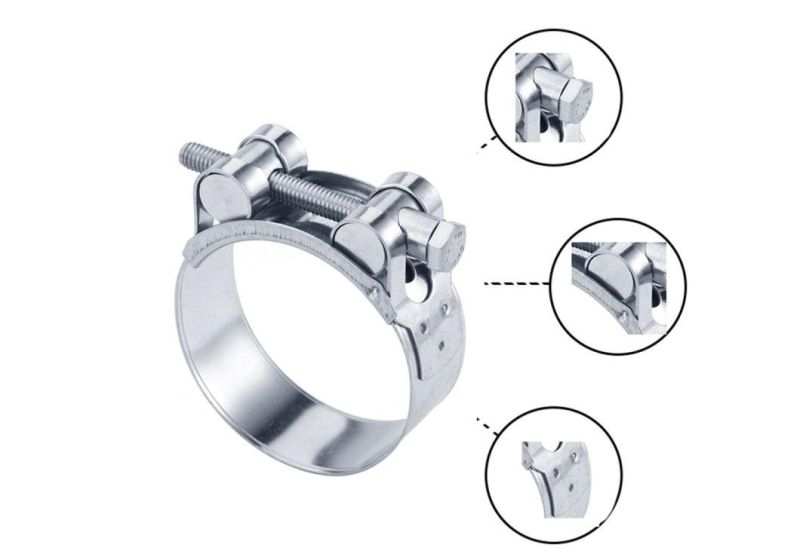

Wide Band Heavy Duty Hose Clamp

QINGDAO SINDKO INTERNATIONAL TRADE CO., LTD.
  • Material：Metal
  • Usage：Heavy Duty Clamp, Pipe Clamp
  • Structure：T-Clamp
  • Standard：Standard, Nonstandard
  • Condition：New
  • Brand：Customized

Base Info

  • Model NO.：Hose clamp

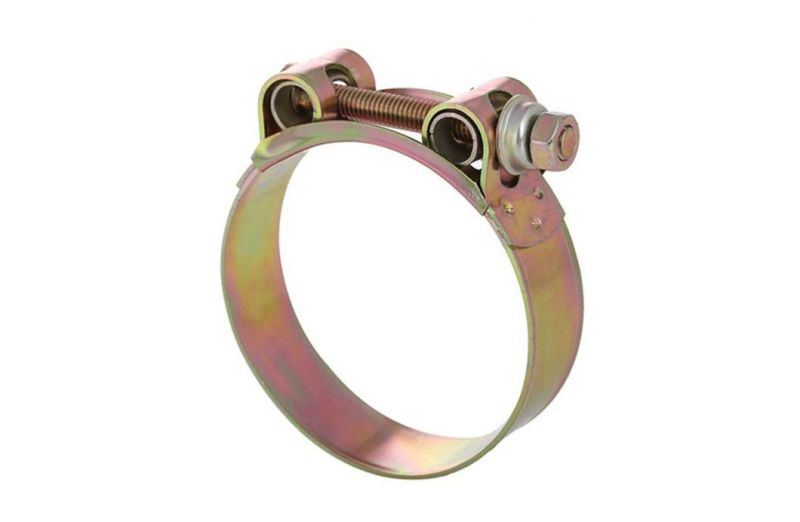

  • Finishing：Blue-White Zinc Plated or Yellow Galvanized
  • Band Width：18mm,20mm,22mm,24mm,26mm
  • Band Thickness：0.5mm,0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,1.7mm
  • Combination：W1,W2,W4

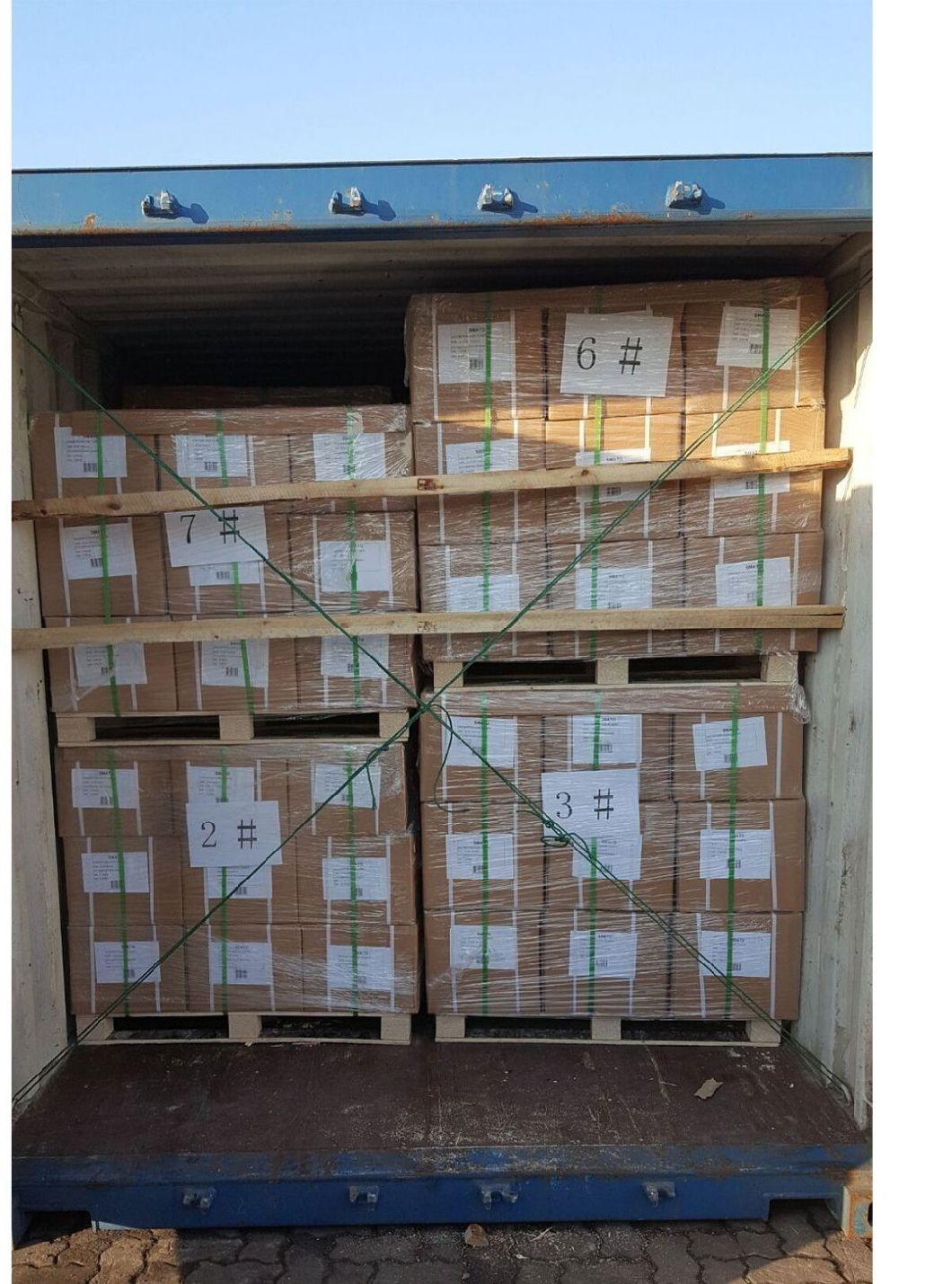

  • Transport Package：Bulk in Carton and Palletized
  • Specification：17-19mm to 240-252mm
  • Trademark：Customized
  • Origin：Tianjin, China
  • HS Code：73269090
  • Production Capacity：3000000 Pieces Per Month

Description

Product NamePower robust clampMaterialW1:Steel,zinc plated
W2:Band and housing stainless steel,steel screw

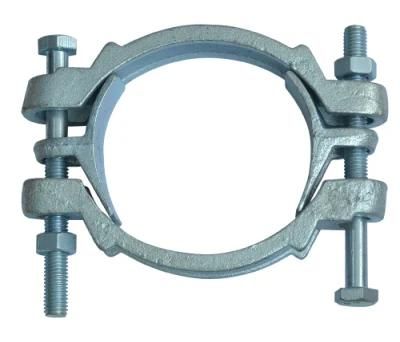

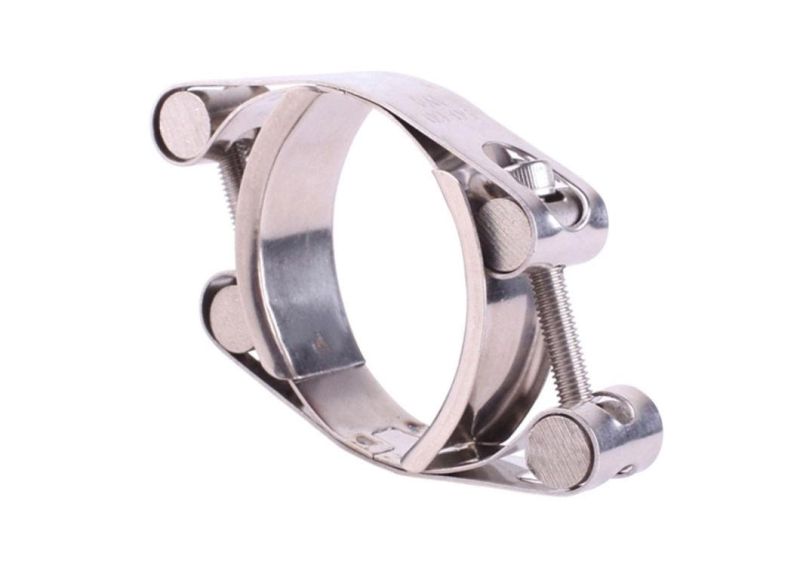

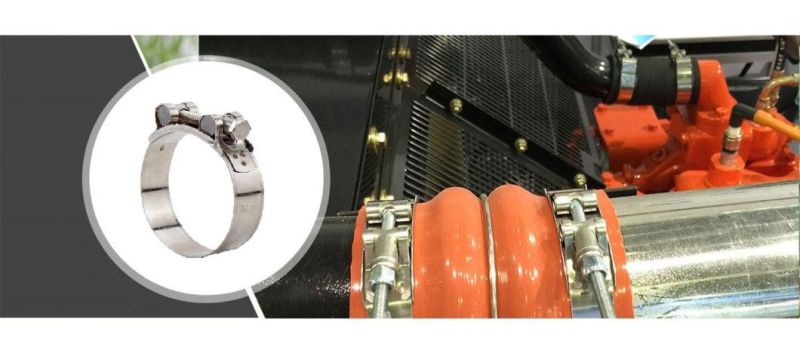

W4:All stainless steel(SS201,SS301,SS304,SS316)BandNon-perforatedScrew TypeHexagon boltPackageBulk in carton then palletizedCertificationISO/SGSDelivery time30-35days per 20ft containerPower robust clamp include robust clamp solid nut,double ring,single type and double type.They are all have a larger strong torque.Widely used in places with strong fastening force.Wide Band Heavy Duty Hose Clamp

Wide Band Heavy Duty Hose Clamp

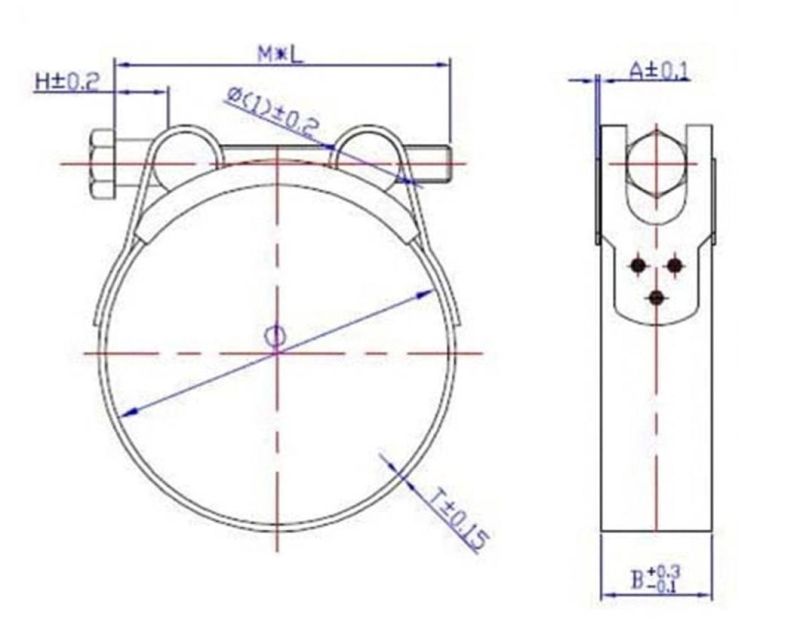

 SizeBand size(WxT)(mm)Bolt size(mm)Breaking Tonque(Nm)W1W2,W417-1918x0.618x0.5M5x40≥5Nm20-2218x0.618x0.5M5x40≥5Nm23-2518x0.618x0.5M5x40≥5Nm26-2818x0.618x0.5M5x40≥5Nm29-3120x0.820x0.6M6x50≥15Nm32-3520x0.820x0.6M6x50≥15Nm36-3920x0.820x0.6M6x50≥15Nm40-4320x0.820x0.6M6x50≥15Nm44-4722x1.222x0.8M6x55≥15Nm48-5122x1.222x0.8M6x55≥15Nm52-5522x1.222x0.8M6x55≥15Nm56-5922x1.222x0.8M6x55≥15Nm60-6322x1.222x0.8M6x55≥15Nm64-6722x1.222x0.8M6x60≥15Nm68-7324x1.524x0.8M8x60≥25Nm74-7924x1.524x0.8M8x60≥25Nm80-8524x1.524x0.8M8x60≥25Nm86-9124x1.524x0.8M8x60≥25Nm92-9724x1.524x0.8M8x60≥25Nm98-10324x1.524x0.8M8x60≥25Nm104-11224x1.524x0.8M8x70≥25Nm113-12124x1.524x0.8M8x70≥25Nm122-13024x1.524x0.8M8x70≥25Nm131-13926x1.726x1.0M10x85≥40Nm140-14826x1.726x1.0M10x85≥40Nm149-16126x1.726x1.0M10x85≥40Nm162-17426x1.726x1.0M10x105≥40Nm175-18726x1.726x1.0M10x105≥40Nm188-20026x1.726x1.0M10x105≥40Nm201-21326x1.726x1.0M10x105≥40Nm214-22626x1.726x1.0M10x105≥40Nm227-23926x1.726x1.0M10x105≥40Nm240-25226x1.726x1.0M10x105≥40NmOur product
Wide Band Heavy Duty Hose Clamp

Wide Band Heavy Duty Hose Clamp
Wide Band Heavy Duty Hose Clamp

Wide Band Heavy Duty Hose Clamp

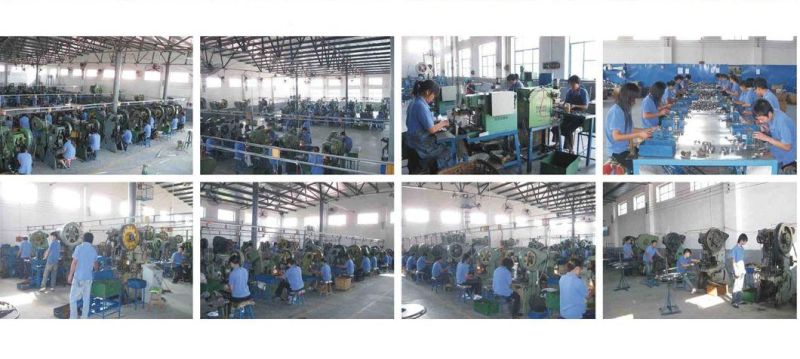

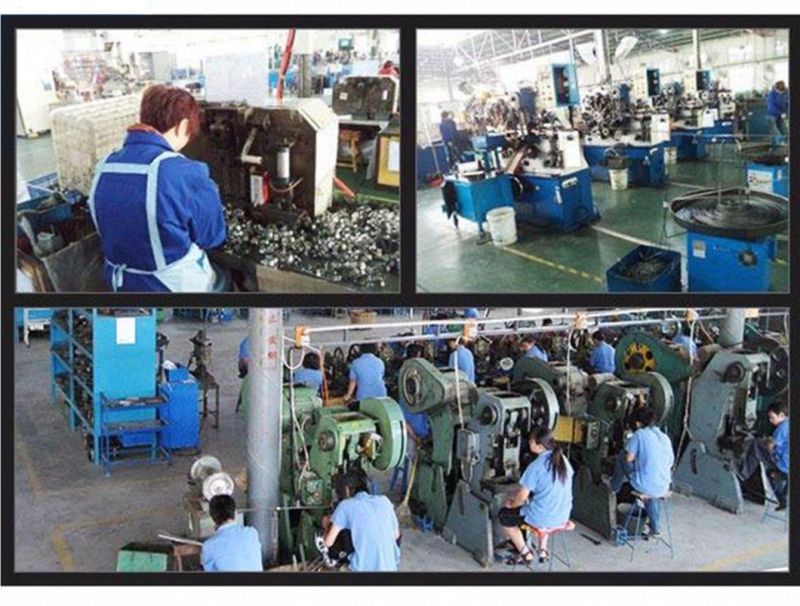

Wide Band Heavy Duty Hose ClampWorkshop photos
Wide Band Heavy Duty Hose Clamp
Wide Band Heavy Duty Hose ClampTransaction and Customer evaluation
Wide Band Heavy Duty Hose Clamp

Wide Band Heavy Duty Hose Clamp
Why Choose Us
1.We are focused on hose clamp more than 15 years,we got rich manufacture and exporting expereince.Our products are widely sold all over the world and highly approved by our customers.Good quality,reasonable price and perfect service always are our tend.
2.We have a scientific production line,reasonable production plan,we ensure that every order on time delivery.
3.We can accept customize product for you.
4.We test every size before shipment to control the quality.
We are appreciated for your interest on our products and hope you can get useful information from our website.If you need more information or any enquiry,pls feel free to contact us.
