• Model NO.：L111-34E125X32S
• Housing Thickness：1.5,2,2,2.5mm
• Offset：26,30,32,39mm
• Load Capacity：40,50,70,90kg
• Total Height：75.5,105,135,163.5mm
• Transport Package：Export Carton or Pallet for Instrumental Caster
• Specification：GB, ISO, BSCI, SGS, REACH, ROHS
• Trademark：Double Rhombus
• Origin：Hubei, China
• HS Code：87169000
• Production Capacity：500000PCS,Month for Instrumental Caster

Basic Info.

Model NO. L111-34E125X32S Housing Thickness 1.5/2/2/2.5mm Offset 26/30/32/39mm Load Capacity 40/50/70/90kg Total Height 75.5/105/135/163.5mm Transport Package Export Carton or Pallet for Instrumental Caster Specification GB, ISO, BSCI, SGS, REACH, ROHS Trademark Double Rhombus Origin Hubei, China HS Code 87169000 Production Capacity 500000PCS/Month for Instrumental Caster

Product Description

Parameter


Model No.	L110-34E125X32S	Offset	39mm
Wheel material	TPR+PP	Diameter of stem	M12
Wheel diameter	125mm	Length of stem	25mm
Wheel width	32mm	Brake	Yes
Overall height	158.5mm	Housing material	Steel housing with zinc plating
Load capacity	90kg	Housing thickness	2.5mm
Application	Instrument

Features
1. The wheel center is plastic with TPR wheel tread. And the TPR wheel can protect your floor.
Caster housing is made of gavanized steel housing.
2. There are four optional size: 50mm, 75mm, 100mm, 125mm, ball bearing, noiseless moving
3. Seven different caster housing:
    fixed plate caster housing,
    swivel plate caster housing,
    swivel plate with brkae caster housing,
    swivel screw caster housing,
    swivel screw with brake caster housing
    swivel bolt hole caster housing
    swivel bolt hole with brake caster housing
4. This caster is very popular with different clients for its high quality.
5. Applicable products: instruments, small carts, shelves.
6. Δ Packing: small carton with pallet or according to customer's needs

Double Rhombus do the best casters in China:
1. Scientific structure design;
2. Special rotation design;
3. High quality material to ensure the caster capability.
4. High quality materials purchased with strictly quality checking.
5. Producing strictly according to the ISO quality management system. Certification: ISO 9001: 2008/, OHASA18001: 1999, ISO 14001: 2004
6. Each product will be checked strictly before packing.
7. The most important thing is: We are professional manufacturer.


Payment and delivery:
1. Payment: By T/T. 40% advance payment, the balance before shipment
2. Delivery time: Three weeks after receiving the down payment


Company information
1) Our company was founded in 1978, it has gotten certificates of ISO9001 quality system, OHSAS 18001 health system and ISO 14001circumstance system already. The National Standard Bureau entrusted our company to compile the National standard GB/T14687-93 and GB/T14688-93 for industrial caster in 1993 and 2011.

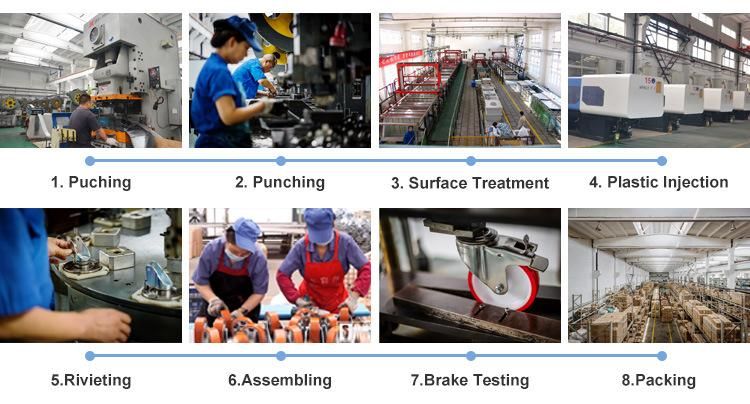

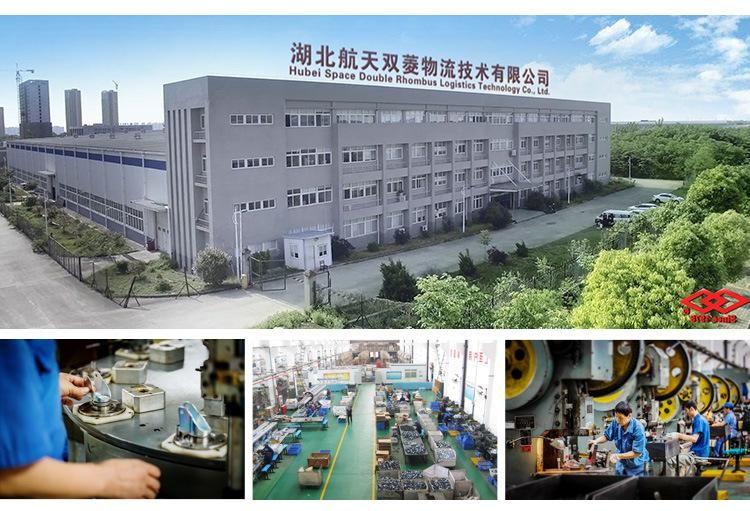

2) Our company has more than ten years export experience, professional manufacturing technology, and a strict quality control system. Most of our engineers and mechanics have more than 10 years experiences on manufacturing caster. Our factory has modern manufacturing processes, equipment and mature production lines for mould making, curved cutting, punching, welding, surface plating, machine assembling and capability tests for casters, airport trolley, airport counter, airport chair, queue stand, foldable hand truck.

3) We have our own development and design teams. If there is any product you are interested in, please send us an inquiry, if you couldn't find what you want, please also let us know, we could make it customized for you.


Sample service


Sample Available
Sample fee Paid by customer, but can be refund when mass production
Delivery fee Send by express or by air, paid by customer, but can be refund after mass production


Service

Quick response: Our customers will get our reply with 24 hours, and get our quote within 24 hours during working days. You will get our best service


FAQ: Information we need to know

Model No. Of products
Quantity


***If there are any caster you are interested in, please send us an inquiry, if you couldn't look for your caster, please also let me know, we could make new caster specially.


Dia.	Width	Load capacity	Over height	Offset	Dia of stem	Length of stem	Thickness housing	Code
50mm	20mm	40kg	73mm	26mm	3/8"	15mm	1.5mm	L110-34E050x20IS
75mm	25mm	50kg	100mm	30mm	M10	15mm	2mm	L111-34E075x25S
100mm	30mm	70kg	132.5mm	32mm	M10	25mm	2mm	L111-34E100x30S
125mm	32mm	90kg	161mm	39mm	M10	25mm	2.5mm	L111-34E125x32S
