Dele G80 Black Hoist Lifting Chain Link Chain
Dele Electrical (Hangzhou) Co., Ltd.- Usage：Transmission Chain
- Material：Alloy
- Surface Treatment：Electroplating
- Feature：Heat Resistant
- Chain Size：1,2"*3,32"
- Structure：Combined Chain
Base Info
- Model NO.：Chain-G80
- Color：Multi-Colored
- Product Name：763 Chain
- Function：Marine Chain
- MOQ：1000m
- Brand Name：Dele
- Transport Package：Drum
- Specification：CE
- Trademark：gold lux
- Origin：Made in China
- HS Code：731582
- Production Capacity：100000,Month
Description

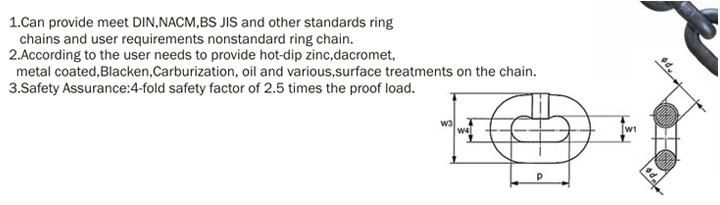

size dxp(mm)width Approx Weight(kg/m) Working
LoadLimit(t) Test Load(KN) Breaking Load
min. FN inside min.w1 outside max. w3 3x9 3.8 10.7 0.21 0.28 7.1 11.3 4x12 5 14.3 0.35 0.5 12.6 20.1 5x15 6.3 17.9 0.54 0.8 19.6 31.4 6x18 7.5 21 0.79 1.1 12.7 45.2 6.3x19 7.9 22.6 0.86 1.25 31.2 49.9 7x21 9 24.5 1.07 1.5 37 61.6 8x24 10 28 1.38 2 48 80.4 9x27 11.3 32.2 1.76 2.5 63.6 102 10x30 12.5 35 2.2 3.2 76 125 11.2x33.6 14 40.1 2.71 4 98.5 158 11x43 12.6 36.5 2.33 3.8 92 154 12x36 15 42 3.1 4.6 109 181 12.5x38 15.5 42.2 3.3 4.9 117 196 13x39 16.3 46 3.8 5 128 214 14x42 18 49 4.13 6.3 150 250 14x50 17 48 4 6.3 150 250 15x46 20 52 5.17 7 168 280 16x48 20 56 5.63 8 192 320 16x49 24.5 59.5 5.71 8 192 320 16x64 23.9 58.9 5.11 8 192 320 18x54 23 63 6.85 10 246 410 18x54 21 60 6.6 10 246 410 19x57 23.7 63.2 7.7 11.3 270 450 20x60 25 70 8.6 12.5 300 500 22x65 28 74.2 10.7 15.3 366 610 22x66 28 77 10.2 15.3 366 610 22x86 26 74 9.5 15.3 366 610 24x72 32 82 12.78 18 432 720 24x86 28 79 11.6 18 432 720 26x78 35 91 14.87 21.3 510 720 26x92 30 86 13.7 21.3 510 850
Payment term L/C l/c amount above 40.000 usd,we can accept L/C at sight
T/T
EXW 30% T/T in advance,paid the balance before shipment
FOB CIF 30% T/T in advance,paid the balance against copy of B/L
cfr(c&f) paypal amount lower than 4000usd
west Delivery time 15~35days after receiving payment for one container We welcome use trade assurance,you`ll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
