• Model NO.：New
• Working Pressure：20-80bar
• Transport Package：Standard Export Carton
• Specification：CE, ISO
• Trademark：CY SPRAY
• Origin：Dong Guan, China
• HS Code：84249090
• Production Capacity：1000PCS Per Day

Basic Info.

Model NO. New Working Pressure 20-80bar Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per Day

Product Description

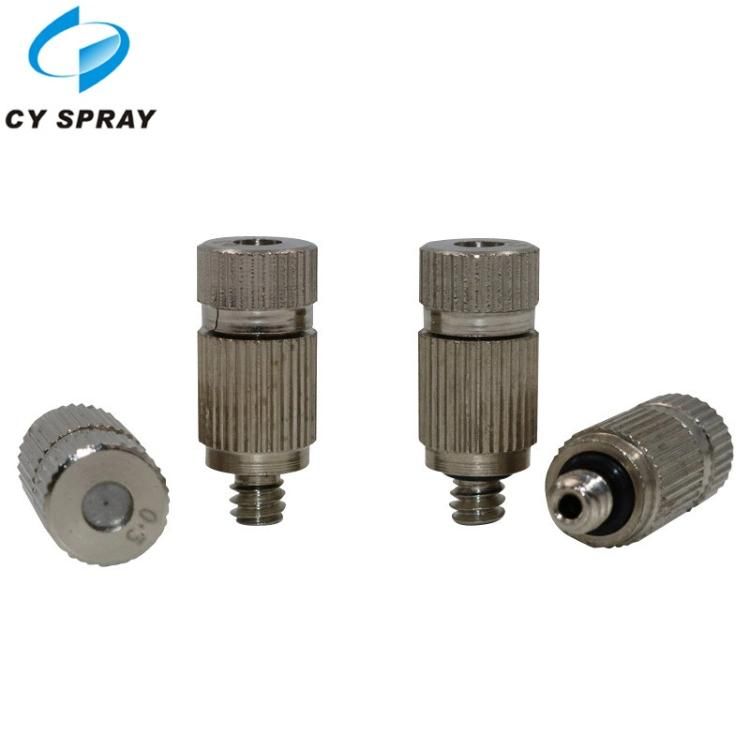

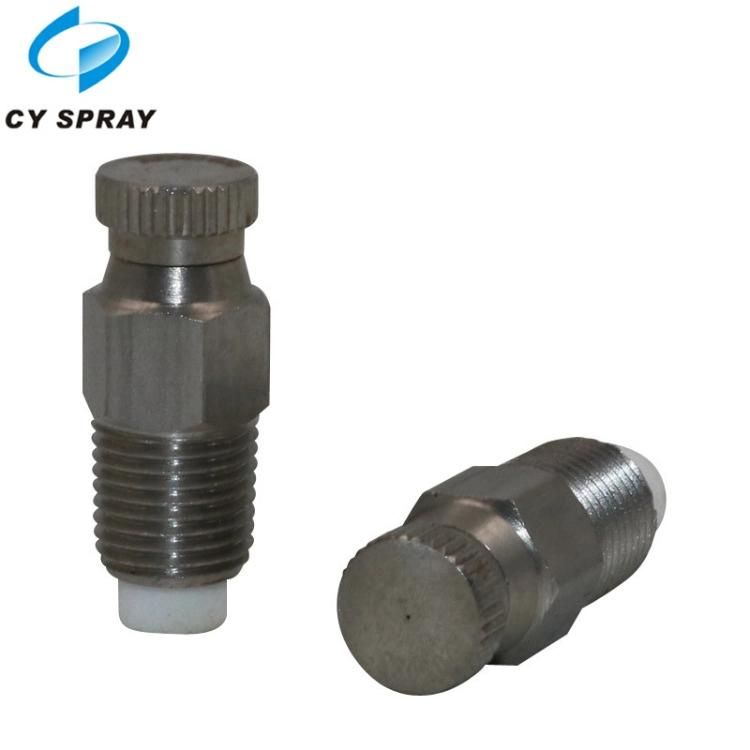

    High Pressure 1/4 Size Stainless Steel Fog Cooling Nozzle
F series high pressure anti-drop fine fog nozzles have guide vane inserted and have a anti-drop equipment.
2.Under the pressure of 20-70KG(290PSI-1015PSI), the liquid flows in a high speed forming a centrifugal vortex In the vanes, then spray the fine droplets from the orifice.
3.This kind of nozzle can be used in artificial fog, disinfection, cooling, humidifying etc. As the wide use in artificial fog industry, it's also called artificial fog nozzle, cooling fog nozzle.
4.Material of nozzle's body: stainless steel,SS

1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Parts cooling
6.Fruit wax injection

7.Ceramic tile glazing
8.Humidify for factory
9.Salt fog test
10.Artificial fog
11.Humidify for other place

Performance Data:

Type

Type	Size dia.	Thread	Pressure	Flow Rate
L1	0.10mm/0.004"	10/24,12/24,3/16"	20-70bar	0.016-0.040L/Min
L2	0.15mm/0.006"	10/24,12/24,3/16"	20-70bar	0.029-0.046L/Min
L3	0.20mm/0.008"	10/24,12/24,3/16"	20-70bar	0.049-0.089L/Min
L4	0.30mm/0.012"	10/24,12/24,3/16"	15-70bar	0.065-0.145L/Min
L5	0.40mm/0.016"	10/24,12/24,3/16"	7-70bar	0.056-0.178L/Min
L6	0.50mm/0.02"	10/24,12/24,3/16"	7-70bar	0.077-0.248L/Min

Q1. What are your terms of payment?
T/T, Paypal,Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.

Q2. How about your delivery time?
A:3 workdays for goods in stock.
B:7-10 workdays for existing model which is without stock.
C:30 to 35 workdays for casting models.
D:The specific delivery time depends on the items and the quantity of your order

Q3. Can you produce according to the samples or can you provide the sample for the quality test?
Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Some samples we can provide free of charge ,But should pay the courier cost.



Q4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
