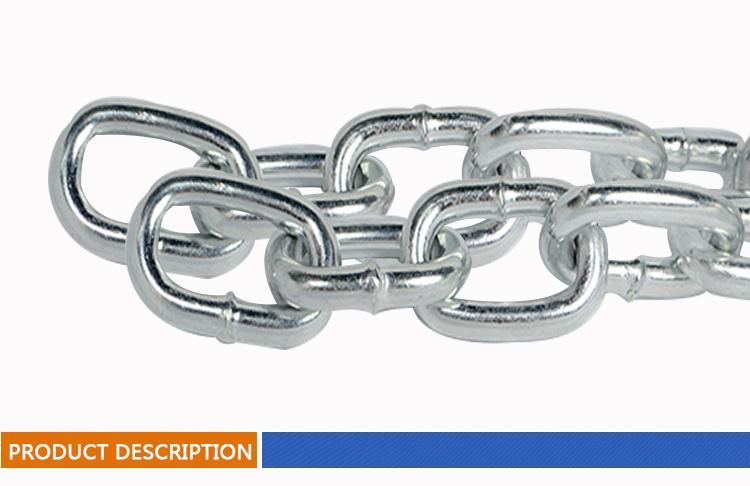

Multipurpose DIN 764 Galvanized Link Chain
Shandong Licheng Link Chain Co., Ltd.- Usage：Protection
- Material：Iron
- Surface Treatment：Electroplating
- Chain Size：1,8-1
- Structure：Welded Chain
- Color：Galvanized
Base Info
- Model NO.：Din 764(Multipurpose Link Chain)
- Raw Material：Q235 Carbon Steel
- Type：Decoration
- Surface：Zinc Plated
- Package Type：PP Bag,Plastic Pail,Iron Drum
- Transport Package：5,50 Kg One Gunny Bag, Several Bags on One Pallet
- Specification：Din764(Multipurpose Link Chain)
- Trademark：LS(Multipurpose Link Chain)
- Origin：China
- HS Code：731582
- Production Capacity：600t
Description

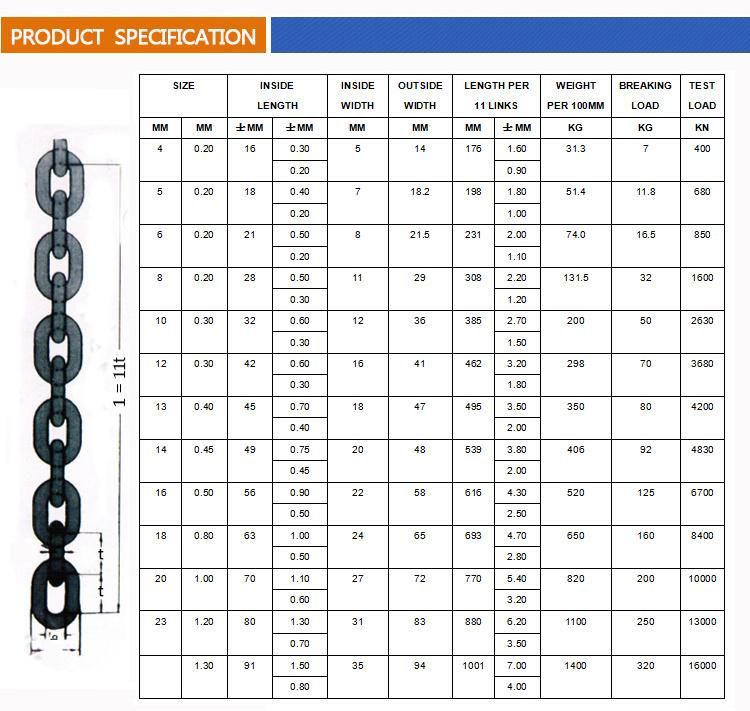

LS DIN764 LINK CHAINSIZE INSIDE LENGHT INSIDE WIDTH OUTSIDE WIDTH LENGTH PER 11 LINKS WEIGHT PER100M BREAKING LOAD TEST LOAD MM ±MM MM ± MM MM MM MM ± MM KG KG KN 4 0.20 16 0.30 5 14 176 1.60 31.3 7 400 0.20 0.90 5 0.20 18 0.40 7 18.2 198 1.80 51.4 11.8 680 0.20 1.00 6 0.20 21 0.50 8 21.5 231 2.00 74.0 16.5 850 0.20 1.10 8 0.20 28 0.50 11 29 308 2.20 131.5 32 1680 0.30 1.20 10 0.30 32 0.60 12 36 385 2.70 200 50 2630 0.30 1.50 12 0.30 42 0.60 16 41 462 3.20 298 70 3680 0.30 1.80 13 0.40 45 0.70 18 47 495 3.50 350 80 4200 0.40 2.00 14 0.45 49 0.75 20 48 539 3.80 406 92 4830 0.45 2.00 16 0.50 56 0.90 22 58 616 4.30 520 125 6700 0.50 2.50 18 0.80 63 1.00 24 65 693 4.70 650 160 8400 0.50 2.80 20 1.00 70 1.10 27 72 770 5.40 820 200 10000 0.60 3.20 23 1.20 80 1.30 31 83 880 6.20 1100 250 13000 0.70 3.50 1.30 91 1.50 35 94 1001 7.00 1400 320 16000 0.80 4.00
