• Model NO.：WF-JF
• Supply：Marine Industry
• Quality Control：100% Inspected
• Technic：Forging Parts
• Advantages：Delivery on Time, According to The Demand for Mat
• Delivery：Within 20 Days After Receiving Last Confirm Inform
• Machining：CNC
• Brand Name：Customized
• Shipping Port：Qingdao Port
• OEM Service：Yes
• Custom Made：Yes
• Logo Printing：Customized
• MOQ：10-1000PCS
• Free Sample：Yes
• Inner Package：Carton Box ,Plastic Bag
• Transport Package：Plywood Box
• Specification：GSG, ASTM, ISO9001: 2008, DIN, GB, DIN, EN124, CE
• Trademark：ShengAo
• Origin：Weifang, Shangdong, China
• HS Code：87089910
• Production Capacity：50000PCS,Year

Item Name

General Products
Application / Service Area

Metal Parts Solution for Vehicle, Agriculturemachine, Construction Machine, transportation equipment, Valve and Pump system. Such as scraper conveyor chain, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

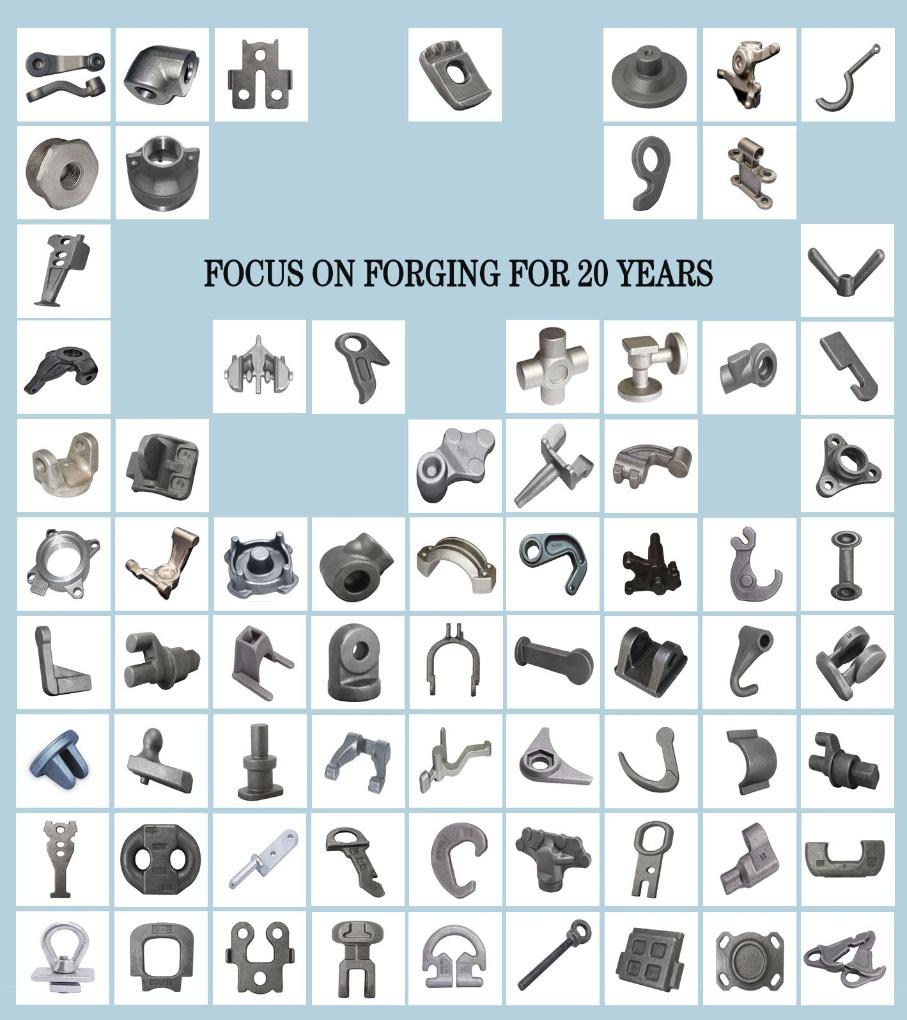

Main blank Process for Forged parts

Forging , Press

Blanks Tolerance

+/-0.3~+/-2 mm

Applicable Material

Carbon steel, Low Carbon steel, middle carbon steel, 40Cr, 20CrMnTi, 20CrNiMo etc.

Forging Blank Size /Dimensions

142 mm- 300mm or according to customer requirement

Blanks Weight

Range from 0.1kg-1000kg

 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming etc.

 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

Machined Surface Quality

Ra 0.8-Ra3.2 according to customer requirement

Applicable Heat Treatment

Normalization , quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

Applicable Finish Surface Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting,

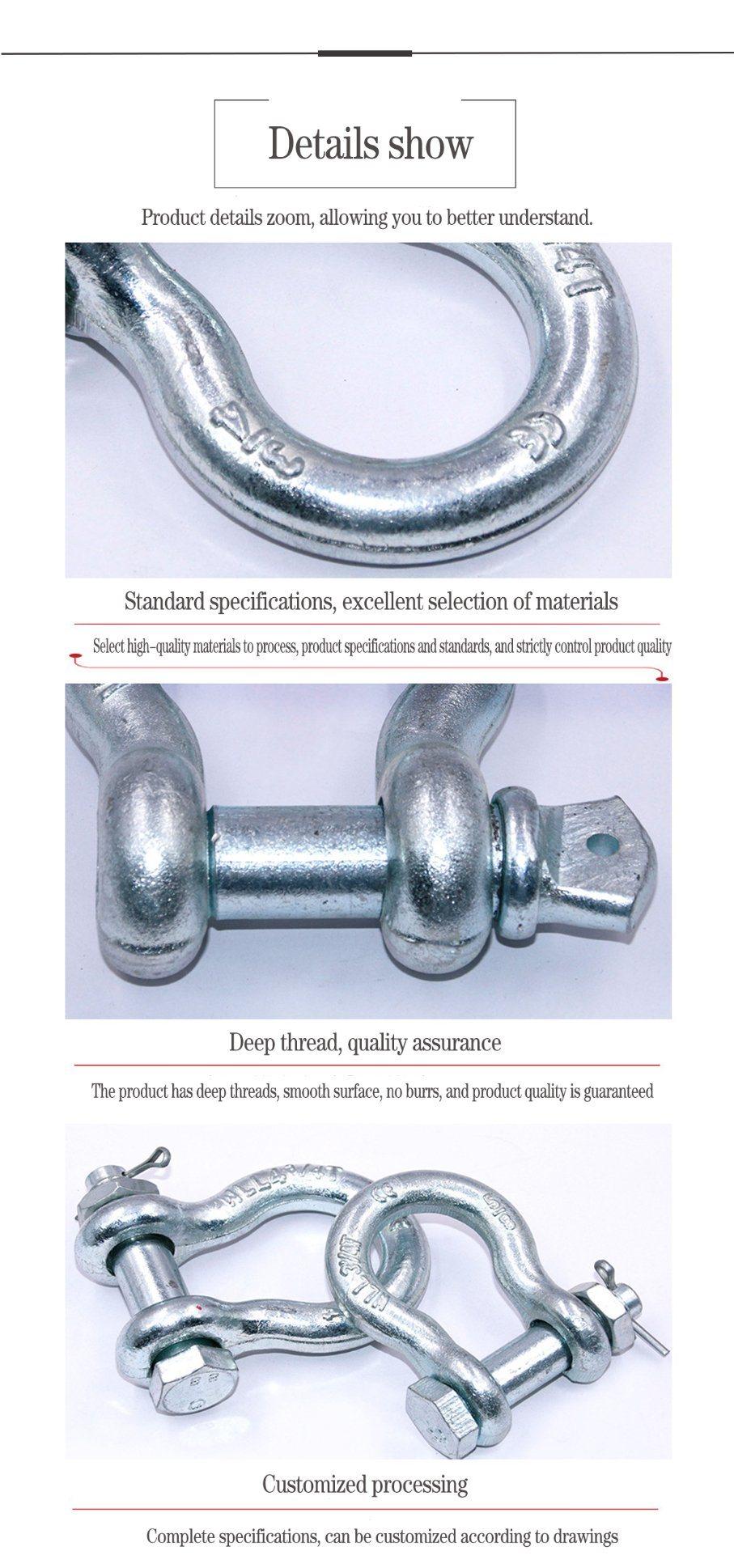

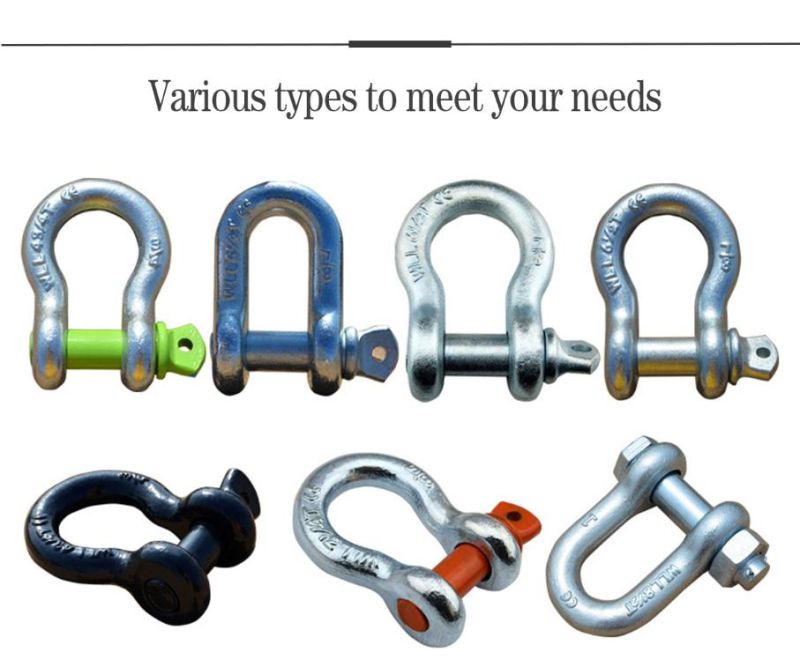

Screw pin anchor shackles (also known as a screw pin bow shackle) are designed to offer the
security of a strong connection with the ease of a quick release pin. The bow shape has the ability
to handle a wider variety of connections and multi-dimensional pulling, as opposed to chain shackles
(also called D shackles) which have a more narrow profile and are meant to be used for straight line pulls.

       Product Features
       • Capacities 1/3 thru 55 metric tons, grade 6.
       • Forged - Quenched and Tempered, with alloy pins.
       • Working Load Limit permanently shown on every shackle.
       • Hot Dip galvanized or self colored.
       • Sizes 3/8 inch and below are mechanically galvanized.
       • Fatigue rated.
       • Approved for use at -40° C (-40° F) to 204° C (400° F).
       • Meets or exceeds all requirements of ASME B30.26.

       Q: Why choose Shengao product?
       A: We shengao have our own plant Weifang Shengao machinery Co.,Ltd, therefore, we can surely
       promise the quality of every product and provide you comparable price.
       Q: Do you provide OEM Service?
       A: Yes, we provide OEM Service.
       Q: Do you provide customized shackle?
       A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
       Q: What is your payment term?
       A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.


If there's anything I can help, please feel free to contact with me.
