High Efficient Automatic Cam-Less Wire Rotary Spring Forming Machine
Dongguan Hua Yi Da Spring Machinery Co., Ltd.- Function：Pressed, Phonation, Buffer, Drive, Restoration, Measurement, Forming
- Material：Stainless Steel
- Usage：Industrial, Auto, Furniture, Motorcycle, Home Appliance, Seat
- Load Type：Bend
- Production Process：Cold Roll
- Shape：Cylinder
Base Info
- Model NO.：HYD-60T-16A
- Axis Count：16 Axes
- Wire Size Range：2mm-6mm
- Wire Feed Length：Unlimted
- Max Feeding Speed：80m,Min
- Feeding Wheel：4 Pairs
- Max Axes：16 Axes
- Power AC：Three Phase 380V
- Weight：4500kg
- Machine Size：3600*1400*2050mm
- Transport Package：Standard Wooden Box
- Specification：3600*1400*2050mm
- Trademark：HYD
- Origin：Dongguan, Guangdong, China
- HS Code：8463300000
- Production Capacity：300 PCS,Years
Description
Technical parameters
Model
Axis Count
Wire Size range
iron wire:3-8mm
Maximum wire length
Max feeding speed
Wire Feeding wheel count
Motor power consumption
Reducer
Machine size
Weight
Power AC
Machine Feature
1. The first combined machine of multi-functional spring machine and wire forming machine, effectively combines the characteristics of the two models,improve the adaptability of machine, achieve one machine with two function.
2.This CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Japan Servo Motors to control the feeding system and Cam system synchronously
3.It has total 16 axes, the Cam axis, Feeding axis, Quill Rotary axis, the Wire rotary axis and the Spinner axis.
4.This machine is suitable for making various compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, and any kind wire forming

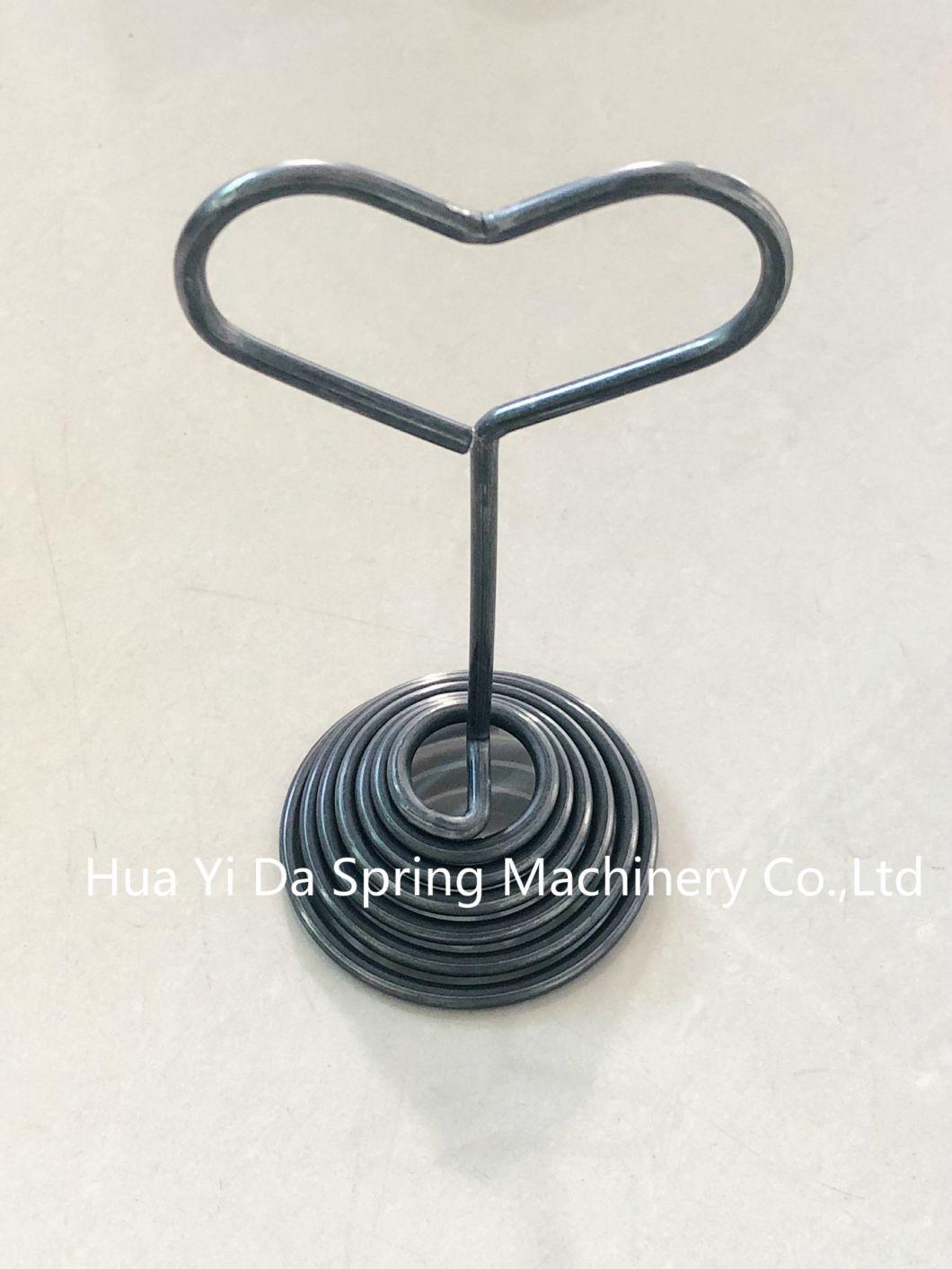

Spring Samples
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory Visiting
After-Sales Service
1.One year machine warranty.
2.HYD provide permanent technical service
3.One week free training in factory
4.Engineer can be sent aboard for machine training.

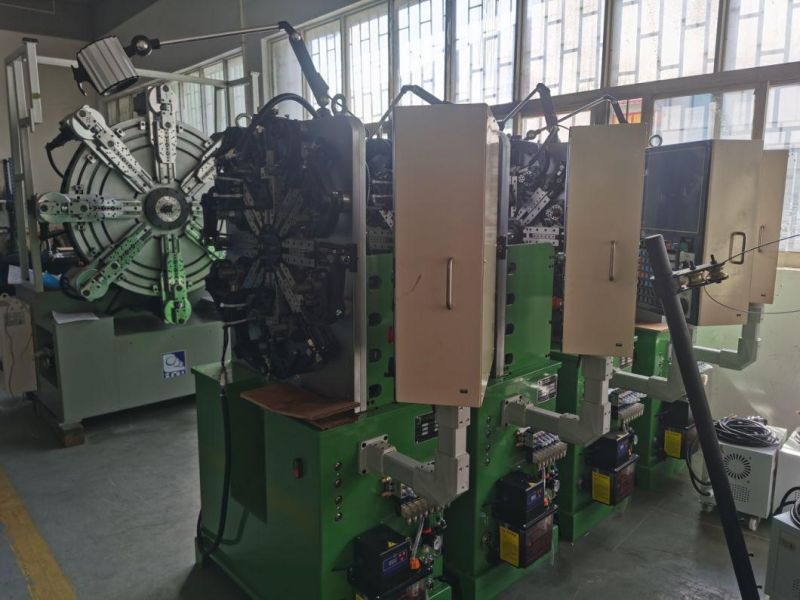

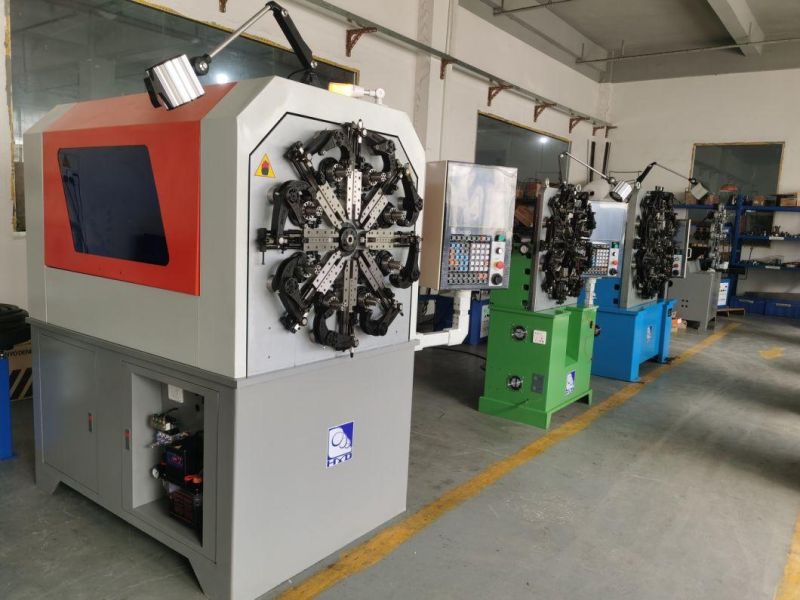

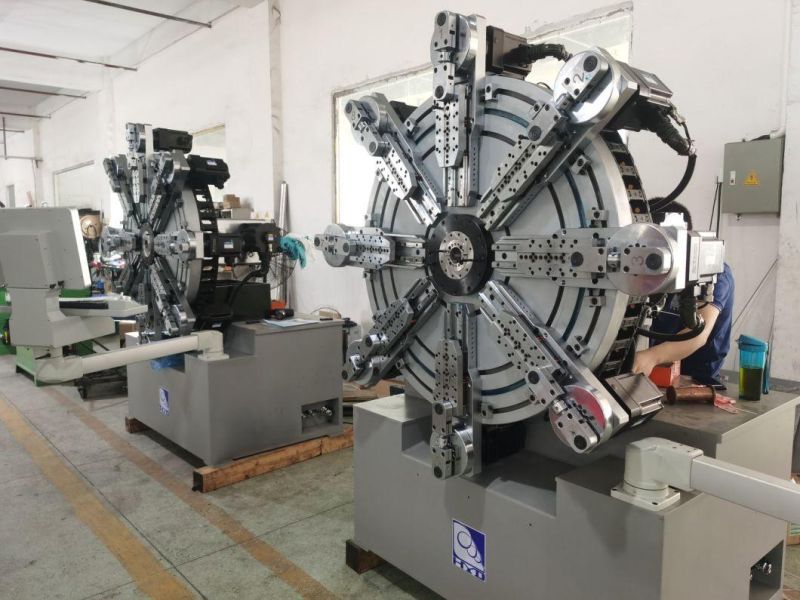

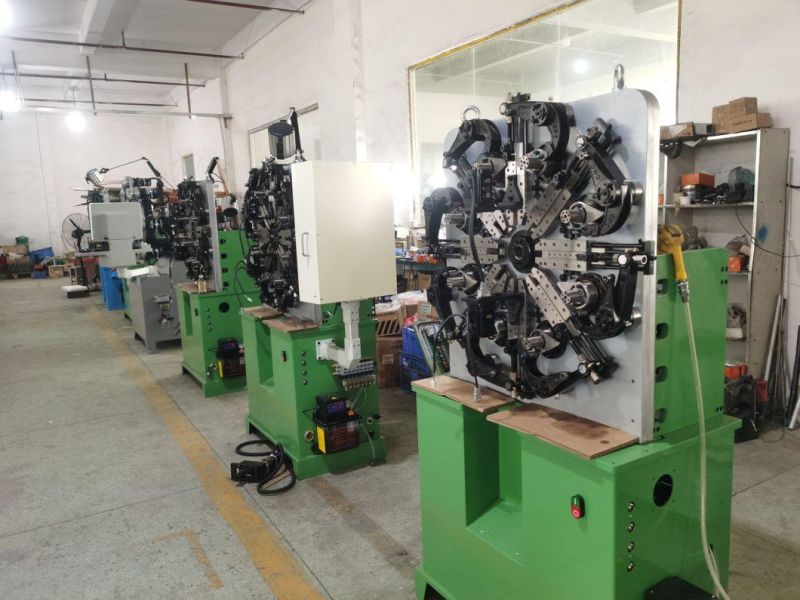

Factory
Good day, everybody! .Here is Dongguan Hua Yi Da Spring Machinery Co., Ltd.. A 20 years wire forming machine manufacturer, help customer to solve the difficulty springs and wire formings problems. We supply spring coiling machine 0.15mm to 25mm, spring former 0.2mm to 8.0mm, wire bender 1mm to 16mm, straightener 2mm to 16mm, 3D multi function machine 2mm to 10mm, screw sleeve machine wire M2 to M24, and all of the tools, export to East Asia, South-east Asia, South Asia, West Asia, Africa, Europe, Oceania, Americas and around the world. There have agent in some countries. Let us work together! Many thanks.
