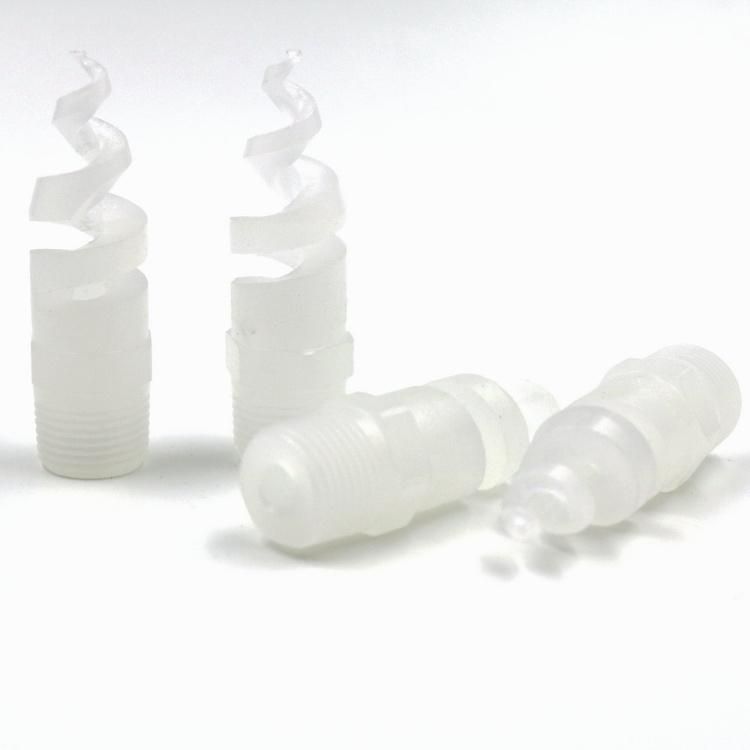

Plastic Spiral Cone Atomizating Nozzle Spiral Cone Atomization Nozzle Spray Sprinkler Heads
CY Spraying & Purification Technology Limited- Thread Size：1,8, 1,4, 1,2, 3,8, 1, 1-1,4, 1-1,2, 2
- Material：PP, PVC, PVDF, Ss, SS316
- Spray Angle：60, 90, 120, 170
- Spray Pattern：Hollow Cone, Full Cone
- Item：Spiraljet Nozzle
- Condition：New
Base Info
- Transport Package：Standard Export Carton
- Specification：ISO9001, ISO1401
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：500PCS Per One Day
Description
Capacity sizeOrifice Diam. Mm Free Passage Diam. Mm Capacity (liters per minute ) 0.7bar 1.5bar 3bar 7bar 25bar... 1/4 7 2.4 2.4 2.6 3.9 5.5 8.4 16 13 3.2 3.2 4.9 7.3 10.3 15.7 30 20 4 3.2 7.6 11.2 15.8 24 46 3/8 7 2.4 2.4 2.6 3.9 5.5 8.4 16 13 3.2 3.2 4.9 7.3 10.3 15.7 30 20 4 3.2 7.6 11.2 15.8 24 46 30 4.8 3.2 11.4 16.7 24 36 68 40 5.6 3.2 15.1 22 32 48 91 53 6.4 3.2 20 30 42 64 121 82 7.9 3.2 31 46 65 99 187 1/2 120 9.5 4.8 45 67 95 145 270 164 11.1 4.8 62 92 129 198 370 3/4 210 12.7 4.8 80 117 166 255 480 1 340 15.9 6.4 130 190 270 410 775 470 19.1 6.4 179 260 370 565 1070 1 1/2 640 22.2 7.9 245 355 505 770 1460 820 25.4 7.9 310 455 645 990 1870 960 28.6 7.9 365 535 755 1160 2190 2 1400 34.9 11.1 535 780 1105 1690 3190 1780 38.1 11.1 680 995 1405 2150 4060 3 2560 44.5 14.3 980 1430 2020 3090 5830 3360 50.8 14.3 1280 1880 2650 4050 7660 4 5250 63.5 15.9 2000 2930 4140 6330 11960
