Hyd Multi-Functional Spring Making Machine Rotary Wire Forming Machine
Dongguan Hua Yi Da Spring Machinery Co., Ltd.- Function：Pressed, Buffer, Drive, Restoration, Measurement, Forming
- Material：Stainless Steel
- Usage：Industrial, Auto, Furniture, Motorcycle, Home Appliance, Seat
- Load Type：Bend
- Production Process：Cold Roll
- Shape：Torsion-Bar
Base Info
- Model NO.：HYD-60T-16A
- Axis Count：16 Axis
- Wire Size Range：Steel Wire:2mm-6mm Iron Wire:3mm-8mm
- Maxinum Wire Length：Unlimted
- Max Feeding Speed：80m,Min
- Wire Feeding Wheel Count：4 Pairs
- Motor Power Sonsumption：59kw
- Reducer：13 PCS
- Machine Size：3600*1400*2050mm
- Weight：4500kg
- Power AC：3-380VAC 50Hz
- Transport Package：Standard Wooden Box
- Specification：3600*1400*2050mm
- Trademark：HYD
- Origin：Dongguan, Guangdong, China
- HS Code：8463300000
- Production Capacity：50 PCS,Years
Description
Technical parameters:Model HYD-60T-16A Axis Count 16 aixs Wire Size range steel wire:2-6mm
iron wire:3-8mm Maximum wire length Unlimted Max feeding speed 80m/min Wire Feeding wheel count 4 pairs Motor power consumption 59KW Reducer 13 pcs Machine size 3600×1400×2050mm Weight 4500kg Power AC 3-380VAC 50Hz
Machine Features:
The first combined machine of multi-functional spring machine and wire forming machine, effectively combines the characteristics of the two models,improve the adaptability of machine, achieve the" one machine with two function .It's a new product that is the most cost-effective in the spring machine industry.
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, shaped spring can be placed by the angle of the tooling to reduce setup times,Increase productivity.
2. Reverse lifting platform reaches the maximum bending frame size 600mm * 1000mm, professional processing line for molding.
3. Taiwan roller guides, good wear resistance, more durable to maintain accuracy.
4. The design of hydraulic shears, cut directly after forming without cutting back again, indirectly enhance productivity.
5. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
6. To Line separating the motor and the power transmission line box, reducing wire feed box load, increasing the turn angle of the line, effectively guarantee the accuracy of feeding lines and transfer lines.
HYD Services:
1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.
2 .The professional and patient consulting service will help you find the suitable solution.

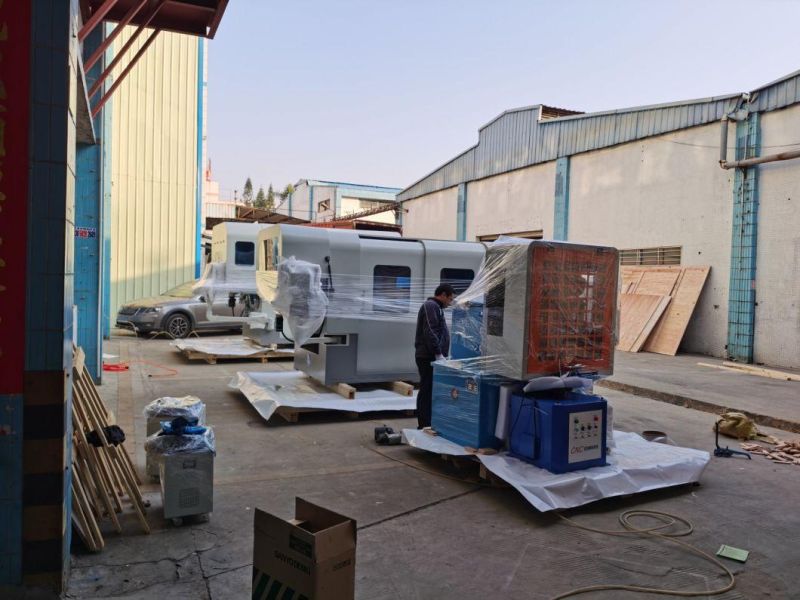

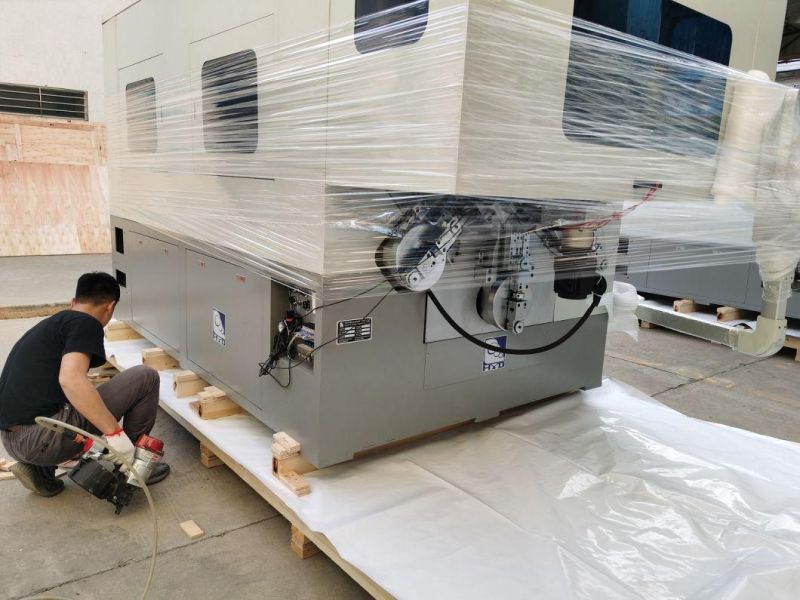

Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
4 HYD provide technical support by email and phone,technicians will be available at your side if necessary.
5 Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
