• Model NO.：Cable Steel Wire Rope Grip
• Product Name：0.5-3t Steel Wire Rope Grip
• Model Name：Wire Rope Grip
• Application：for Cable Gripping and Pullng
• Feature：Cable Clamp
• Material Type：Aluminium Alloy Steel, Aluminium Alloy
• Size：1-10,2.5-16mm etc
• Transport Package：Carton, Pallet
• Specification：25-50mm etc
• Trademark：YANFEI,OEM
• Origin：Shandong, China
• HS Code：7326909000
• Production Capacity：100000000pieces,Year

Basic Info.

Model NO. Cable Steel Wire Rope Grip Product Name 0.5-3t Steel Wire Rope Grip Model Name Wire Rope Grip Application for Cable Gripping and Pullng Feature Cable Clamp Material Type Aluminium Alloy Steel, Aluminium Alloy Size 1-10,2.5-16mm etc Transport Package Carton, Pallet Specification 25-50mm etc Trademark YANFEI/OEM Origin Shandong, China HS Code 7326909000 Production Capacity 100000000pieces/Year

Product Description

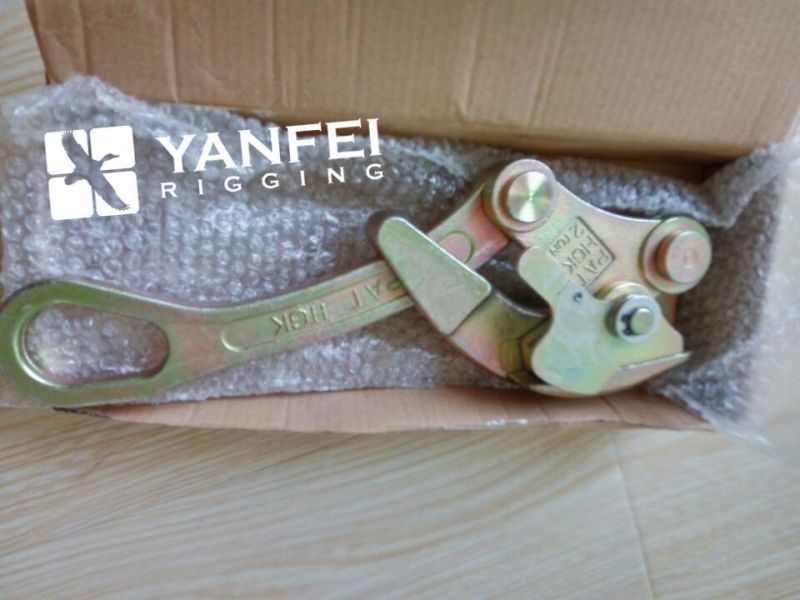

Handle Operated Cable Steel Wire Rope Grip

Specifications

1.capacity from 0.5T to 5T 2.Tensile strength 1.770N/square mm 3.CE and ISO9002
1.With delicate smooth clamp mouth, minimal harm to wires.
2.Using forging alloy steel galvanized available as request .
3.Clip claw sharp, clip power strong
4.Clamp mouth with latch insurance device, don't jump line.
5.After special heat treatment ,strong resistance to tension.. meshing degree is high, not easy slippage deformation.
6.Material:4140 high strength forged alloy steel
7.Load range:0.5T-3T
8.Structure: Heat treatment temperature treatment (Quenching and tempering)
9.Appearance: zinc plating choice.




Model No	Safe Load ( Ton )	Conductor dia recommended (mm)	N.W(KG)
S-0500	0.5	1- 10 mm	0.25
S-1000	1	2.5- 16 mm	0.85
S-2000	2	4- 22 mm	1.2
S-3000	3	16- 32 mm	2.5
Model No	Safe Load ( Ton )	Conductor dia recommended (mm)	N.W(KG)
S-0500	0.5	1- 10 mm	0.32
S-1000	1	2-20 mm	0.7
S-2000	2	2-20 mm	1.3
S-3000	3	16- 32 mm	2.6

Quality Control

We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.

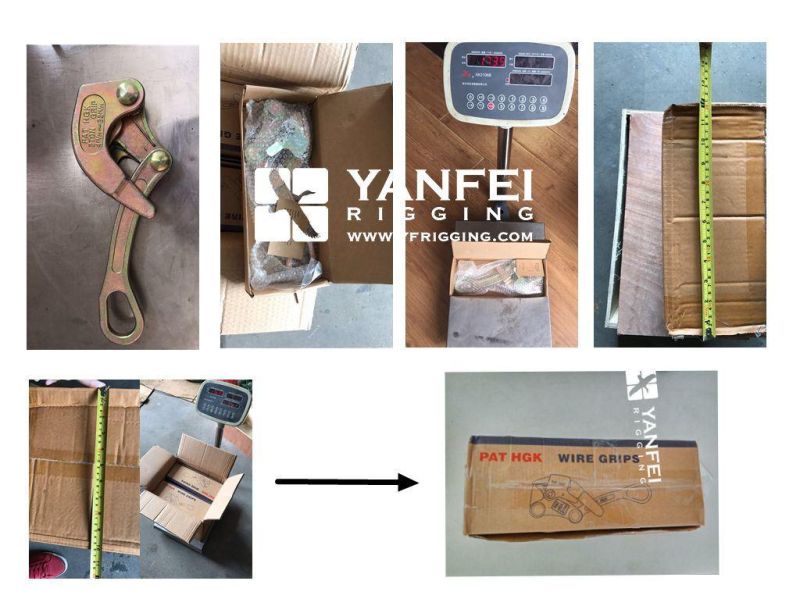

Shipping and package

Packlage : Carton box in pallet
Shipping : Within 20-35days when we confirm your order and get payment .
