Max 2.0mm Computer Full-Automatic Wire Coiler Compression Spring Coiling Machine
Dongguan Hua Yi Da Spring Machinery Co., Ltd.- Function：Pressed, Phonation, Buffer, Drive, Restoration, Measurement, Forming
- Material：Stainless Steel
- Usage：Industrial, Auto, Furniture, Motorcycle, Home Appliance, Seat
- Load Type：Bend
- Production Process：Cold Roll
- Shape：Cylinder
Base Info
- Model NO.：HYD-220
- Number of Axis：2 Axes
- Wire Dimeter：0.4-2.0mm
- Max Outside Diameter：45mm
- Max Production Speed：300PCS,Min
- Machine Dimension：950*900*1650mm
- Machine Weight：880kg
- Transport Package：Standard Wooden Box
- Specification：SGS, BV, TUV
- Trademark：HYD
- Origin：Dongguan
- HS Code：8463300000
- Production Capacity：200 PCS,Year
Description

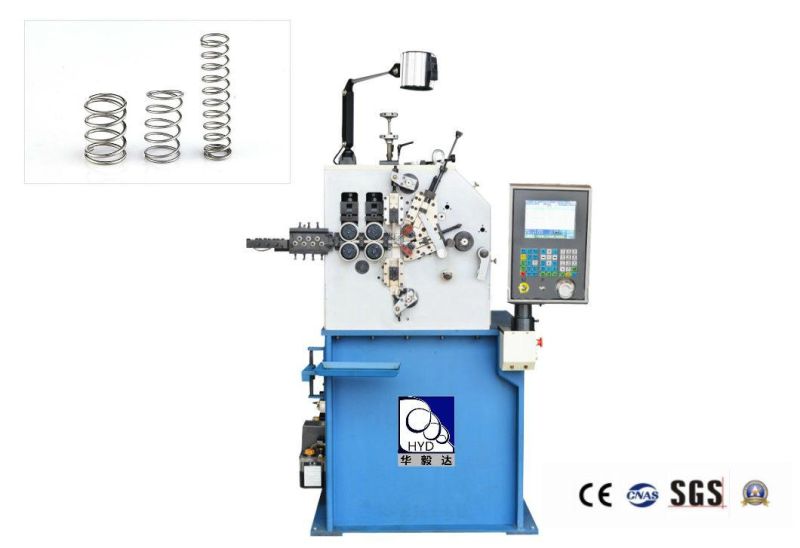

HYD-220 Two- axes CNC Spring Coiling MachineModel HYD-220 Wire Diameter 0.4-2.0mm Max Outside Diameter 45mm Max Manufacture Speed 300pcs/min Max Feeding Length Unlimited Wire Feed Axis 2.7KW Wire Cutting Axis 2.7KW Power Supply 380V 50HZ Machine Dimension 950*900*1650mm Machine Weight 880KG
3.The Cam can be moved left and right.Wire feed length can be changed always while machine is running.
4.Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.

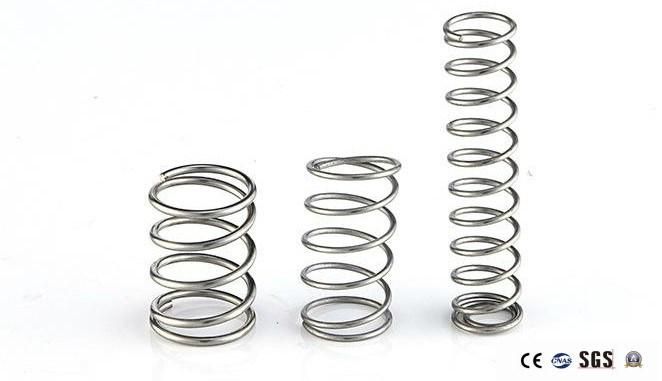

Spring Sample
HYD Service
1. Professional and patient consulting service to help you find the suitable solution.
2. Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4. Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.
Machine Features
1.HYD-220 is a spring coiling machine of two axes which are wire feeding axis and cam axis.
3.The Cam can be moved left and right.Wire feed length can be changed always while machine is running.
4.Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
