• Model NO.：G209
• Technology：Drop Forged
• Body Material：45 # Carbon Steel
• Pin Material：40cr Alloy Steel
• Mini Order：100 Pieces
• Size：3,16" to 2 1,2"
• Wll：1,3 Tons to 55 Tons
• Surface：Galvanized, Spray Painting, etc
• Product Authentification：SGS, ISO, Ce for Drop Forged Anchor Shackle
• Transport Package：in Gunny Bag and Pallet or Others
• Specification：CE, BV, SGS, ISO
• Trademark：SailRigging
• Origin：Qingdao, China
• HS Code：73269010
• Production Capacity：300 Tons,Month

Commodity name

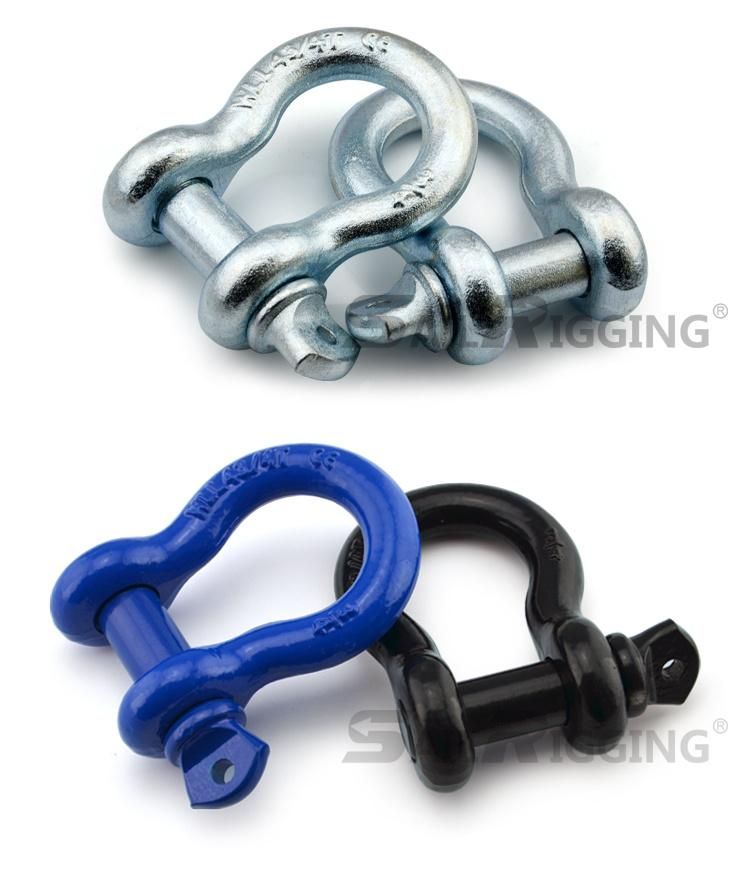

 G209 Bow Shackles

Brand name

SailRigging

Usage

Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings

Main standard

US type G209,G210,G2130,G2150,Europe Dee & Bow type, JIS Dee & Bow type, Plate shackle

Material

Carbon steel, Alloy steel, Stainless steel 304 or 316

Finish

Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished

Technology

Drop forged, Precision Casting

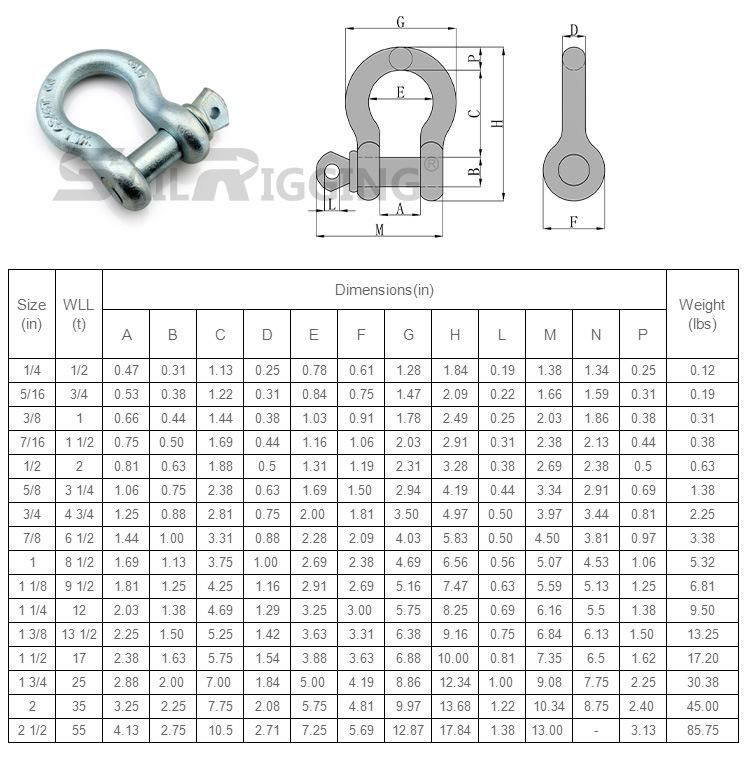

Size

Different size available (3/16"-2 1/2")

M.O.Q

100PCS per Size

WLL

1/3T-55T

MBS

6 times WLL or 4 times WLL

Packing

Gunny bag or carton and pallet / by customer requirements.

Delivery time

10-20days after order confirmation

Payment term

T/T, L/C, Western Union

Business type

Manufacturer, trading

Certifications

ISO9001,CE,BV,SGS

Notes

Special specifications and marks can be made according to customers requirements;

Main products

Eye bolts,Shackles,Turnbuckles,Wire Rope Clips,Load binders,Lifting Hooks,Connecting Links,Master Links,Swivels and many other rigging hardwares.

Our Certification


Contact US

FAQ

>> 1.Are you a factory or a trading company?

1.We are a factory focused on rigging hardware over 18 years.

2.Our main products are shackles,eye bolts and nuts. turnbuckles, wire rope clips, hooks and load binders.

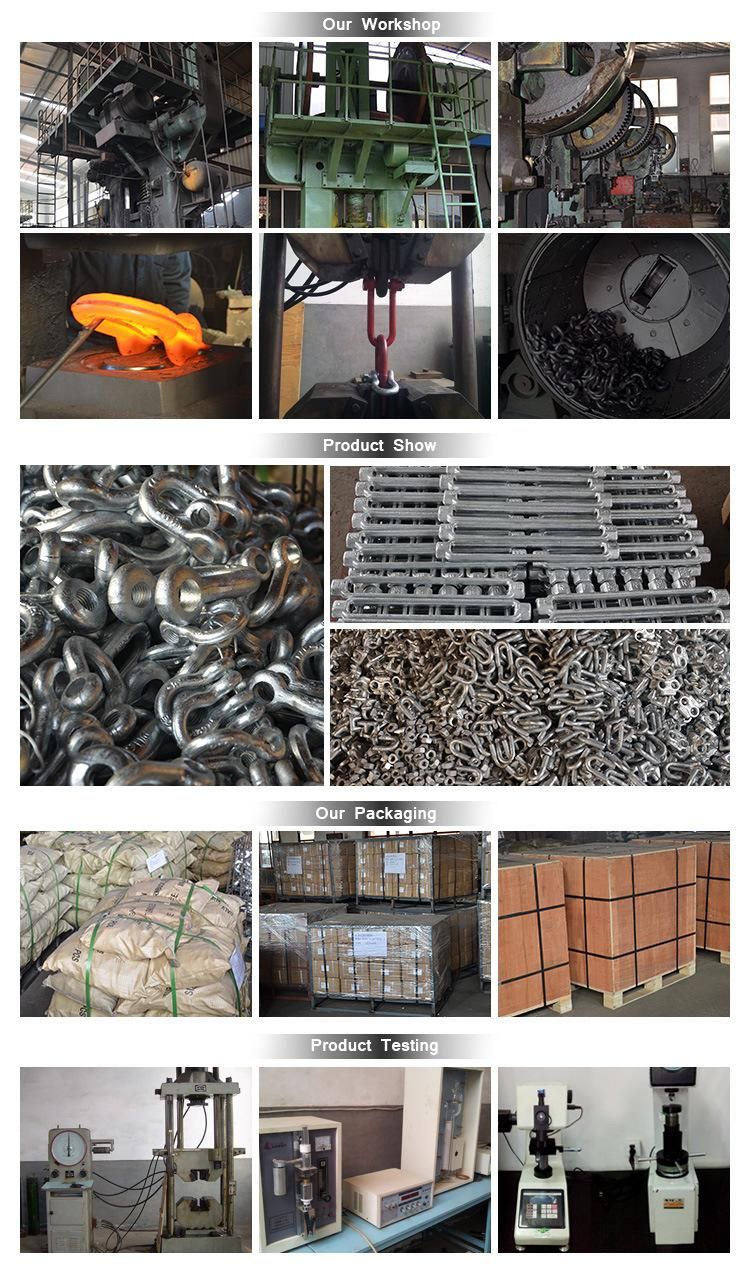

3.We have 6 production lines with advanced machines over 30 like friction presses, air hammer, punching machines,etc.

4.We own warehouse over 3000 square meters.

5.We have numerous distributors at home and board.

>> 2.How do you control your quality?

1.Selection of high-quality steel material from famous steel group

2.Production process standardization, process standardization, refinement.

3.100% Finished Product Testing.

4.The third party product inspections are acceptable.

5.ISO Quality Management System Certificated Factory

6.Inspection before loading

>> 3.What are your advantages compared with others?

1.BV, SGS Field Certification and Assessed Factory

2.Focused on rigging since 1997, Rich experience in Production.

3.Owned factory, the same quality product, the best price.

4.Timely Delivery with the support of 3000 square meters warehouse.

5.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.

6.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
