• Model NO.：10 mm
• Color：Black
• Surface：Galvanized
• Min Inside Width：6-12mm
• Min Breaking Load：31.6~126kn
• Size：5*15~10*30mm
• Max Inside Width：17~34mm
• Min Test Load：19~76kn

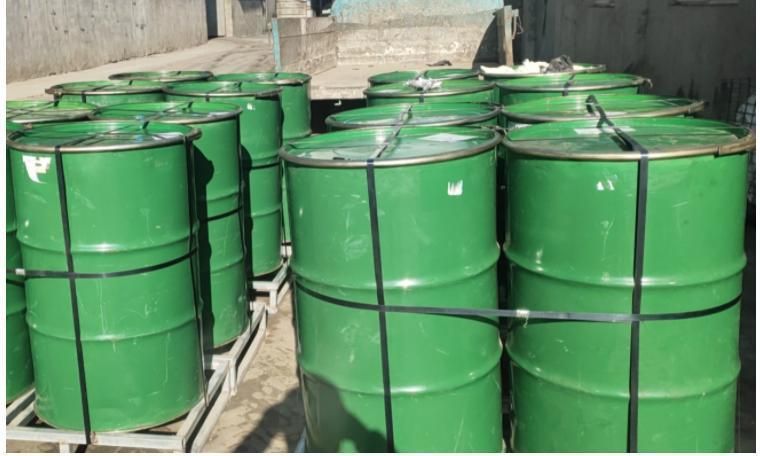

• Transport Package：Steel Drum or as Required
• Specification：7.5-24.5 mm
• Trademark：Huiyu
• Origin：Hebei, China
• HS Code：7315890000
• Production Capacity：30000 Meters,Year

Basic Info.

Model NO. 10 mm Color Black Surface Galvanized Min Inside Width 6-12mm Min Breaking Load 31.6~126kn Size 5*15~10*30mm Max Inside Width 17~34mm Min Test Load 19~76kn Transport Package Steel Drum or as Required Specification 7.5-24.5 mm Trademark Huiyu Origin Hebei, China HS Code 7315890000 Production Capacity 30000 Meters/Year

Product Description

Lifting and rigging chain has been one of the most popular rigging products on the market for many years, mainly due to its strength, durability, and ease of use. All our alloy steel rigging and lifting chain is heat treated to offer industry leading load capacity and durability. Some steel rigging chains are approved for overhead lifting, while others are not, so it is important to always know what type of lifting chain your specific rigging application requires

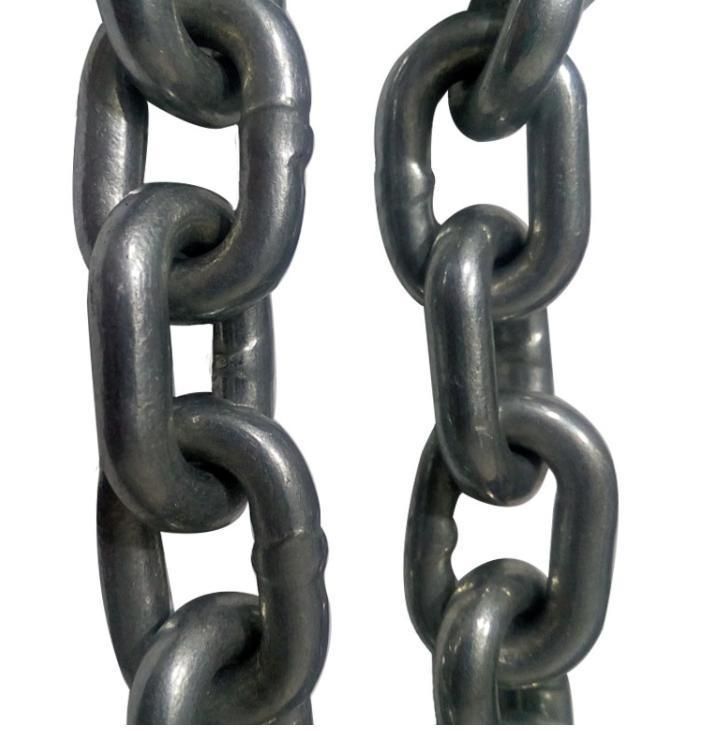

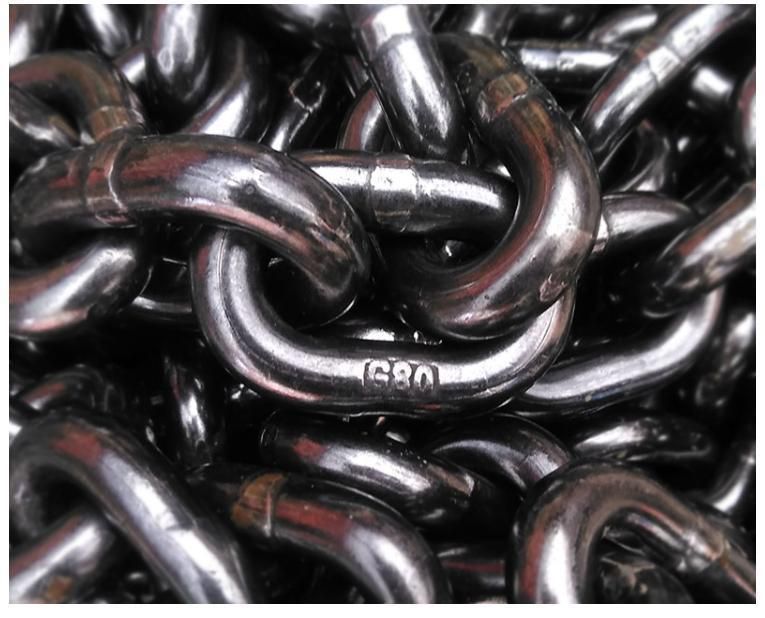

G80 alloy steel lifting chain

1. Specifications sheet as belows:



Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320

How do we control quality:
a) Pay attention to adaptation for manufacture process
b) Approval report for shipment
c) Third party inspection is accepted
d) Keeping quality guarantee for a long period
e) Guaranteeing quality inspection of each product before assembly and packing.

f) Comply with ISO 9001

Any request or further qustions do not hesitate to let us know:
