700m ADSS Cable Preformed Dead End Tension Clamp
Qingdao Powtech Electronics Co., Ltd.- Material：Aluminium Clad Steel
- Usage：Heavy Duty Clamp
- Structure：Tension Clamp
- Standard：Standard
- Condition：New
- Brand：Optelec
Base Info
- Model NO.：ANZ-700
- Name：700 Span Preformed Guy Dead End Grip
- Span：700m
- Rts：>70kn
- Transport Package：Wooden Case
- Specification：700m span
- Trademark：Powtech
- Origin：China
- HS Code：73269090
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. ANZ-700 Name 700 Span Preformed Guy Dead End Grip Span 700m Rts >70kn Transport Package Wooden Case Specification 700m span Trademark Powtech Origin China HS Code 73269090 Production Capacity 10000PCS/MonthProduct Description
700m ADSS Cable Preformed Dead End Tension Clamp

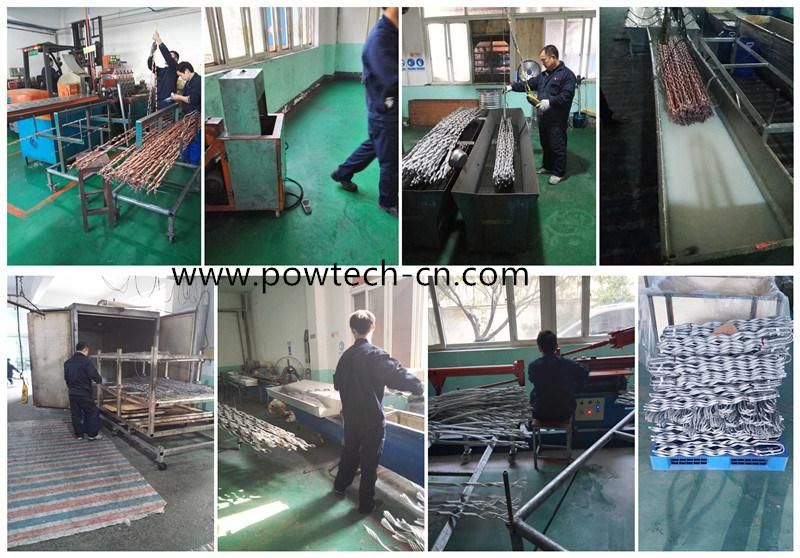

Production Line:
Technical Specifications:
Technical data:
Rated Tension Strength (RTS): >70kN
Recommended span length: 700m
| Product Model | Cable Diameter(mm) | Inner Armor Rod (mm) | Outer Armor Rod (mm) | Clevis Thimble | Extension Link | Anchor Shackle |
| ANZ-700-12.2 | 11.2-12.2 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-13.3 | 12.3-13.3 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-14.40 | 13.4-14.4 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-15.50 | 14.5-15.5 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-16.60 | 15.6-16.6 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-17.70 | 16.7-17.7 | 2200 | 1700 | TC-04 | LG-70 | U-7 |
| ANZ-700-18.80 | 17.8-18.8 | 2200 | 1700 | TC-04 | LG-70 | U-7 |

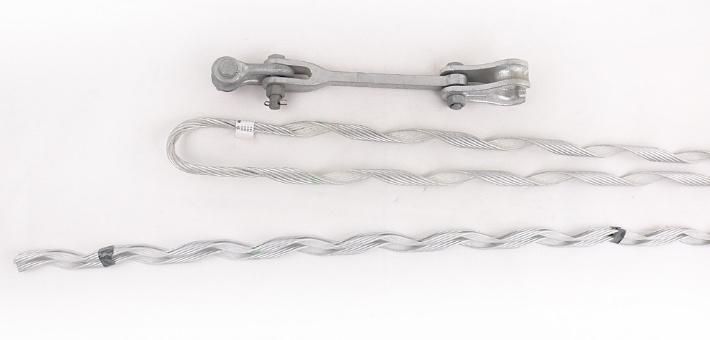

Configuration & material:
- Anchor shackle: forged steel, galvanization
- Extension link: forged steel, galvanization
- Clevis thimble: forged steel, galvanization
- Dead-end rods: Aluminum clad steel
- Reinforcing rods: Aluminum clad steel
Description:
The ANZ series tension sets have simple and stable structure, easy to install and low price, especially designed for short span ADSS cable.
Feature:
- Stress can be distributed equally among the ADSS cable surface without stress centralization to protect ADSS cable.
- It can have higher grip strength for the cable and can support higher tensile force when stress doesn't exceed the optical cable's side strength.
- The grip strength for the cable is not less than 95% of rated tension strength (RTS) of the optical cable, fully suitable for the installation of ADSS cable
Application:
- Terminal pole tower, tension pole/tower,
- Pole/tower with corner angles greater than 15°and RTS no more than 10kN
- Suitable for city ADSS cable installation.
