• Model NO.：G411
• Color：Colored
• Payment：T,T L,C
• Delivery Time：10-30 Days
• Surface Treatment：Galvanized
• Transport Package：Carton or Wooden Box
• Specification：1,8′′-1 1,4′′
• Trademark：Deso
• Origin：China Mainland
• HS Code：73269090
• Production Capacity：30000PCS Per Month

Basic Info.

Model NO. G411 Color Colored Payment T/T L/C Delivery Time 10-30 Days Surface Treatment Galvanized Transport Package Carton or Wooden Box Specification 1/8′′-1 1/4′′ Trademark Deso Origin China Mainland HS Code 73269090 Production Capacity 30000PCS Per Month

Product Description

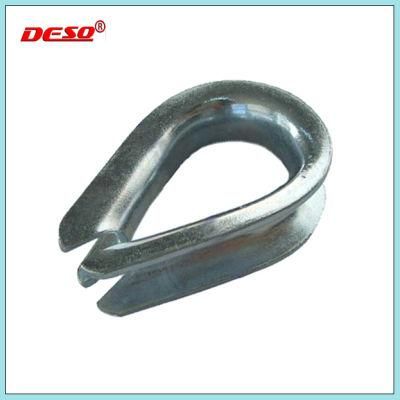

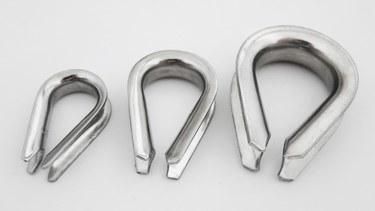

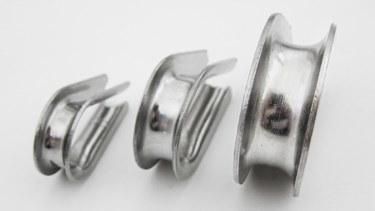

G411 US Type Wire Rope Thimble
Stainless steel 304/316 is available.

Product name	Wire rope thimble
Material	Stainless steel 304,316 or carbon steel
Surface	Highly polish, hot dipped galvanized, electro galvanized
Size	2-36mm
Standard	ISO, GB, ASTM, US, DIN, JIS
Features	Resist against the high temperature and abrasion. Easy to use and with big working load.
Packing list	Clean poly bags, cartons, pallets or as per request
Delivery time	10-30 days, based on Qty
Application	Widely used in the field of machinery, metallurgy, construction, shipping, bridge  project, gymnasium, oil field, fishing, drilling, colliery and ports, etc

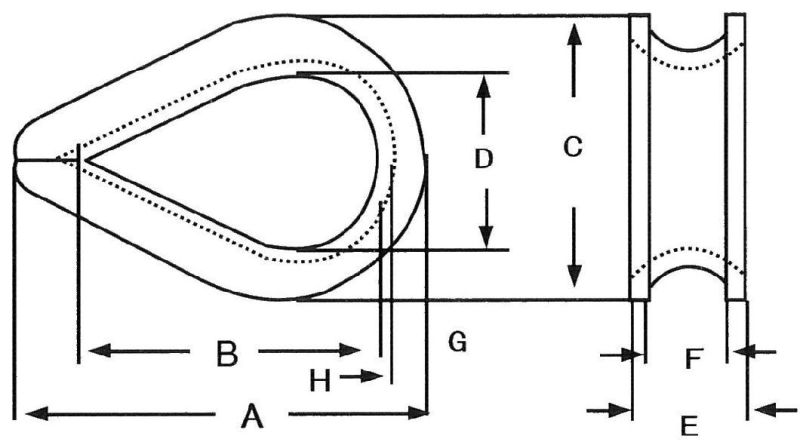

Wire Rope Size (in)	Weight (lbs)	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)
1/8	0.025	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13
3/16	0.025	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13
1/4	0.0375	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13
5/16	0.0625	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13
3/8	0.0625	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16
1/2	0.125	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19
5/8	0.25	3.5	2.25	2.38	1.38	0.91	0.66	0.13	0.34
3/4	0.5	3.75	2.5	2.69	1.63	1.08	0.78	0.14	0.34
7/8	0.85	5	3.5	3.19	1.88	1.27	0.94	0.16	0.44
1	1	6.69	4.25	3.75	2.5	1.39	1.06	0.16	0.41
1-/8 - 1-1/4	1.75	6.25	4.5	4.31	2.75	1.75	1.31	0.22	0.5

If you need more detials or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
