Stainless Steel G411 Wire Rope Thimble
Decorstainless International Co., Ltd.- Color：Silver
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
- Thimble Standard：G411
- Advantage：Fast Delivery
- Design：OEM Serives Provided
- Drawing：CAD
Base Info
- Model NO.：DECOR
- Sizes：From 5,64′′ to 1′′
- Certification：SGS&TUV
- Brand：Decor
- Service：One Stop Shopping
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：from 5,64′′ to 1′′
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：100, 000PCS,Month
Description
Product Description
Product Name
Stainless steel wire rope thimble
Material
stainless steel 316 or 304 or carbon
Surface finish
Highly polish or hot dip galvanized or electro galvanized
Color
Nickel White
Type

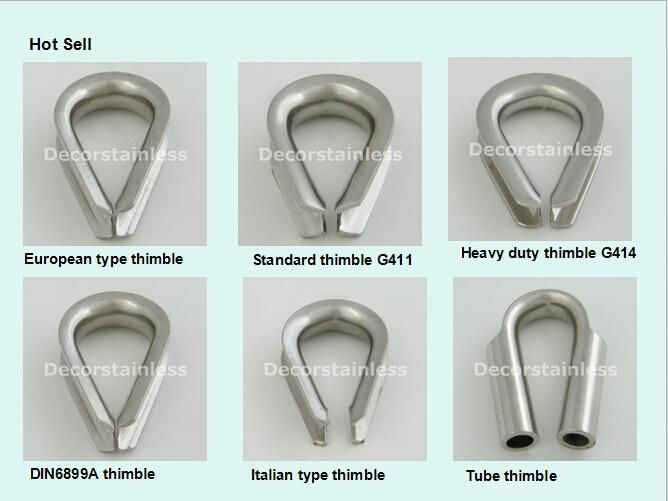

Heavy duty thimble G414, standard thimble G411, European type thimble, Italian type thimble, DIN6899A thimble, tube thimble
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread
coarse, fine
Used
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
| Dimension | A | B | C | D |
| (inch) | (mm) | (mm) | (mm) | (mm) |
| 5/64" | 2 | 8 | 16 | 1 |
| 1/8" | 3 | 9 | 19 | 1 |
| 5/32" | 4 | 13 | 22 | 1 |
| 3/16" | 5 | 13 | 22 | 1 |
| 1/4" | 6 | 17 | 27 | 1 |
| 5/16" | 9 | 22 | 35 | 2 |
| 3/8" | 11 | 25 | 41 | 2 |
| 1/2" | 14 | 32 | 47 | 2 |
| 9/16" | 16 | 35 | 57 | 2 |
| 5/8" | 17 | 36 | 60 | 2 |
| 3/4" | 21 | 38 | 70 | 2 |
| 7/8" | 24 | 44 | 76 | 3 |
| 1" | 27 | 51 | 79 | 3 |
