• Color：Self Color
• Model No.：Grade 80 Chain
• Grade：G80
• Transport Package：Packed in Wooden Case,Iron Drum, Then in Pallets
• Specification：EN818
• Trademark：First Rigging
• Origin：Shandong, China
• HS Code：73158200
• Production Capacity：150ton,Month

Basic Info.

Color Self Color Model No. Grade 80 Chain Grade G80 Transport Package Packed in Wooden Case/Iron Drum, Then in Pallets Specification EN818 Trademark First Rigging Origin Shandong, China HS Code 73158200 Production Capacity 150ton/Month

Product Description

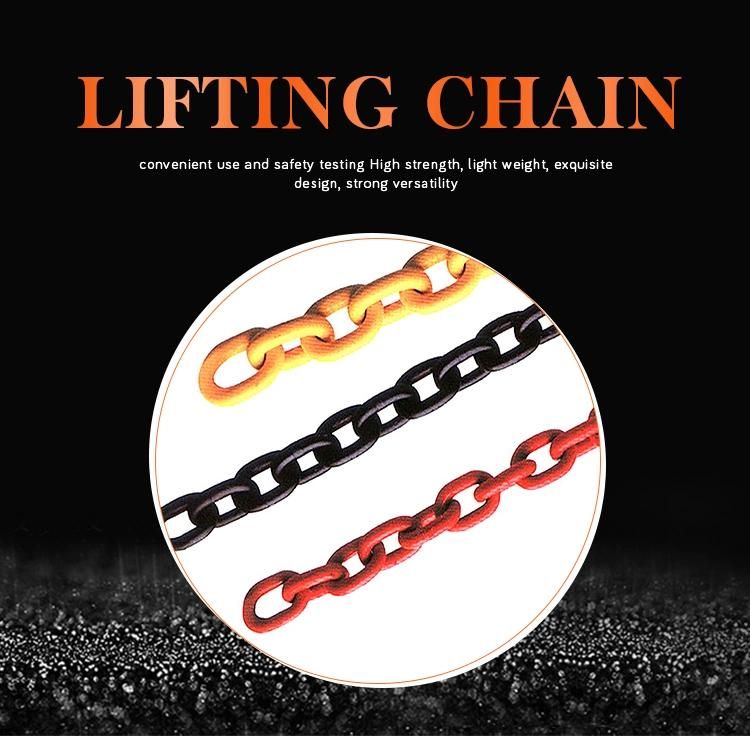

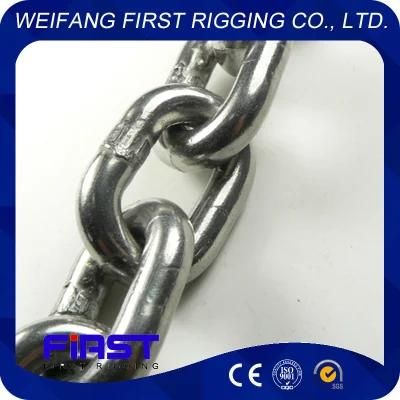

High Strenhtg G80 Lifting Chain:

Size: 6mm-42mm

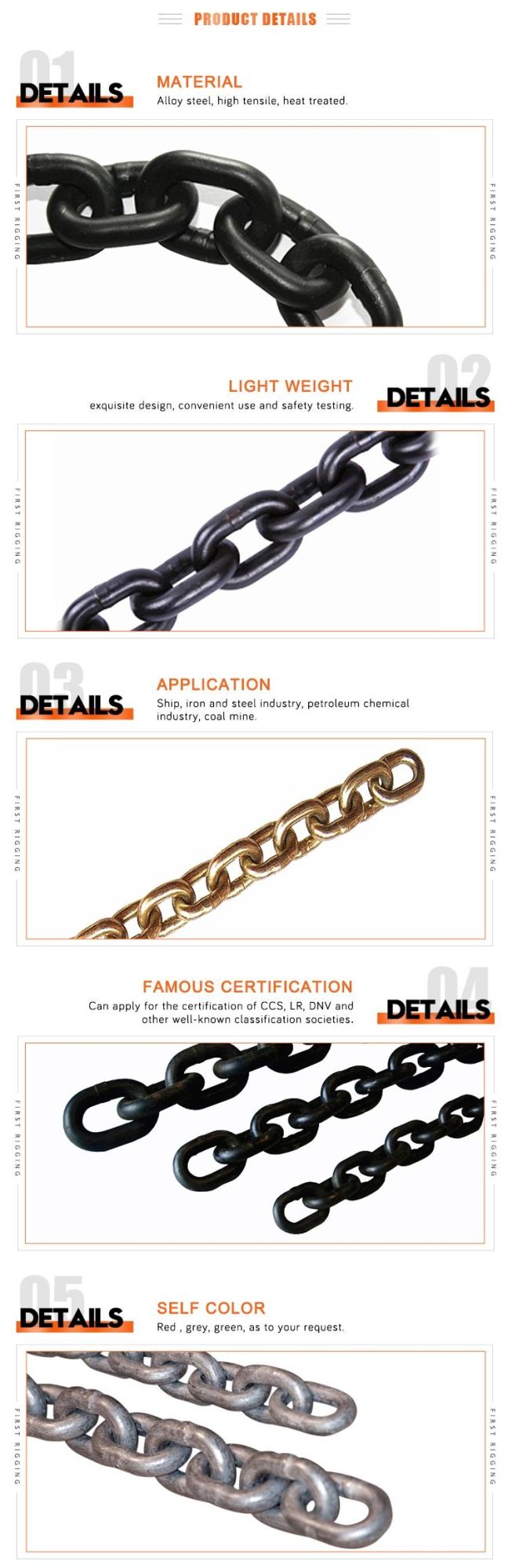

Material: Alloy steel, high tensile, heat treated.

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, Red , grey, green, as to your request

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

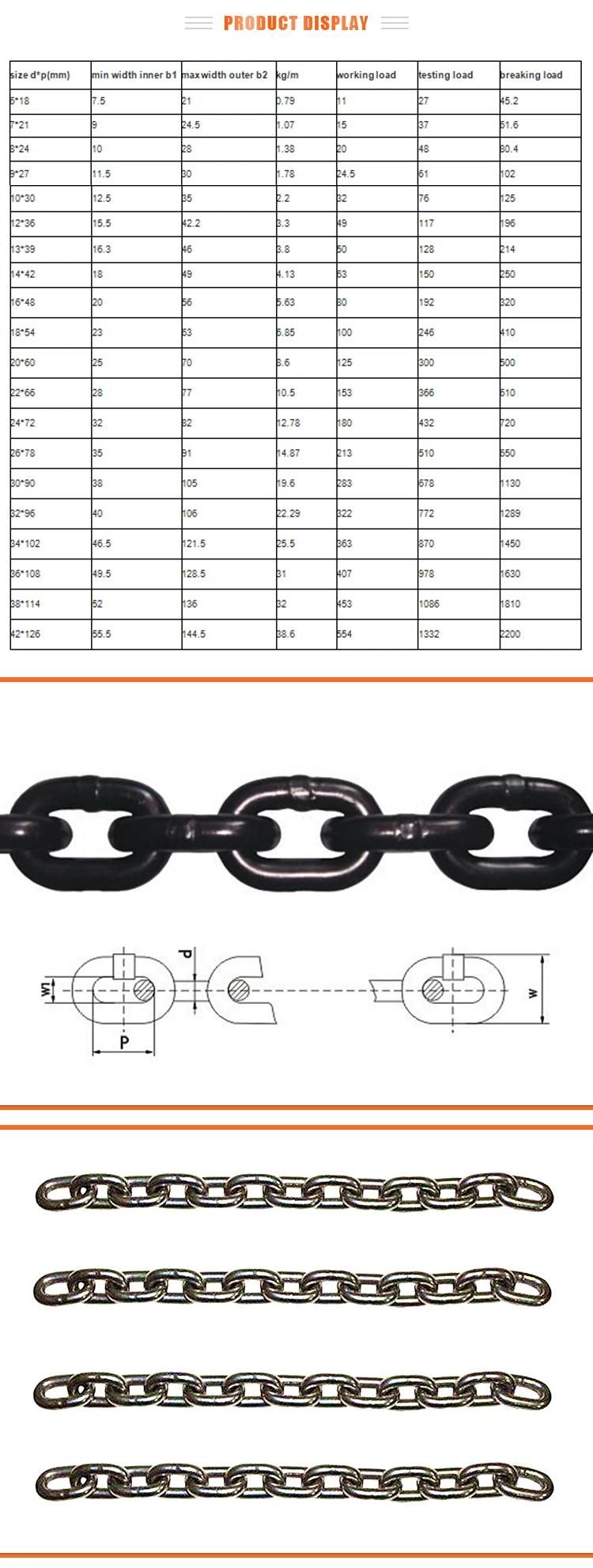

Technical Specification( Load chain):

Size(mm)	Min inside width	Max outside width	Weight(kg/m)	working load(KN)	test load(KN)	test load(KN)
6*18	7.5	21	0.79	11	27	45.2
7*21	9	24.5	1.07	15	37	61.6
8*24	10	28	1.38	20	48	80.4
9*27	11.5	30	1.9	24.5	61	102
10*30	12.5	35	2.2	32	76	125
12*36	15.5	42.2	3.3	49	117	196
13*39	16.3	46	3.8	50	128	214
14*42	18	49	4.13	63	150	250
16*48	20	56	5.63	80	192	320
18*54	23	63	6.85	100	246	410
20*60	25	70	8.6	125	300	500
22*66	28	77	10.5	153	366	610
24*72	32	82	12.78	180	432	720
26*78	35	91	14.87	213	510	650
30*90	38	105	19.6	283	678	1130
32*96	40	106	22.29	322	772	1289
34*102	46.5	121.5	25.5	363	870	1450
36*108	49.5	128.5	31	407	978	1630
38*114	52	136	32	453	1086	1810
42*126	55.5	144.5	38.6	554	1332	2200



Packaging & Delivery:

Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements

Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
