• Model NO.：LX-SM01-08
• Type：Fold-Bend Machine CNC
• Power AC：380V 50Hz
• Warranty：1 Year
• Transport Package：in Seaworthy Wooden Case
• Specification：CE, SGS, ISO
• Trademark：LI Xin
• Origin：Guangdong, China
• Production Capacity：500sets,Year

Basic Info.

Model NO. LX-SM01-08 Type Fold-Bend Machine CNC Power AC 380V 50Hz Warranty 1 Year Transport Package in Seaworthy Wooden Case Specification CE, SGS, ISO Trademark LI Xin Origin Guangdong, China Production Capacity 500sets/Year

Product Description

Production Features:
1.The machine combines precision CNC controlled servo-motion system and conveniences of mechanization. The computer can control all motors to run simultaneously or individually. There are both of computer controlling and non-computer controlling for your choices.
2.It's designed tools for individual purposes as extension, bending, coiling, punching,rotating,casting,cutting, and forming.
3.Accuracy of detection with tracking system installed if failure of the product can automatically shut down.
4.According to the work on the screen, you can always point to the outer diameter of the product such as an amendment.
5.When the wireless disconnected, the machine would automatically shut down. The line wrapped around the wire frame design can automatic acceleration, so the production is easier and more effective.
6.It's suitable for various materials of aluminum, copper, Iron, stainless steel, and stainless iron, etc.

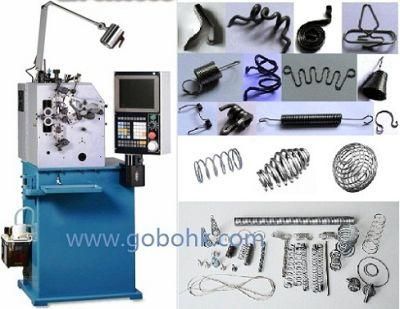

7.It's able to produce torsion spring, compression spring, tension/extension spring, abnormal machine, taper spring, wire-forming, straight spring, rectangle spring, complex-spring, and all kinds of difficult products.
Advantages:
1.Accurate positioning.
2.Free arm technology
3.Computer screen operation
4.Full Automatic for labors saving.
5.Easy operation system for non-experienced workers can run the machine.

Machine Parameter:

Model No.:	LX-SM01
Wire Size	0.6-2.5mm
Width of Strip Wire	30mm
Thickness of Strip Wire	0.3-1.2 mm
Hardness of Wire	80(CARBON)
Length of Wire Feeding	Unlimited
Wire Feeding Precision	±0.03mm
Processing Speed	200pcs/min
Punch Processing ability	10TON
The Sliding Seat Processing Ability	1.5TON
Slide Stroke	37mm
Cam Motor	4.5kw
The Wire Feeding Motor	1.5kw
Press Motor	4.5kw
The Shape Size	2250x780x1800mm
Weight	2500kg
Punch Stroke	13mm

Our services:
Pre-sale service:
1. You will get free solution for your production with suitable machinery combination.
2. You will get Factory direct sale price.
3. You will get durable quality of machine and most professional service.
4. Your visiting to our factory for checking or training is warmly welcome.
After-sale service:
1. Warranty: 1 year free and life long maintenance
2. Free installation & training service.
3. 24 hours online consult a day;

FAQ:
1Q:Can you provide technical support?
A: We provide free technical support for machine installation and 3 to 15 days training.
We can provide production consulting and guide because our deputy General Manager worked in Philippine 1 year and worked in Bangladesh 6 years and worked in India 1 year and worked in Indonesia 2 years so we can give best solution for production whenever you meet difficulty.
We also can dispatch rich experience specialists for a long term working to your factory.

2Q: How do you support when machine goes wrong.
A: Talk with our specialist online by telephone, Skype, we-chat,etc and we will give imm. solution for some incorrect operation or change the consumable parts which we dispatch freely as parts packing list with the machine shipment.
B: Our specialist will teach you how to change the parts during the training time.

3Q:Why choose guang dong li xin intelligent technology co., ltd ?
A:We are the first leader and most professional manufacturer in China for such industry.
B: We have R&D team who can design fully new and automatic machine to update the processing.
C: We give one station solution including raw material, mold, main production machine and support machine and technology.
D: Our machine with more than 30% energy saving. Highest speed with fully automatic solution.
E: Excellent pre-sale and after-sale services. If you give me a chance, you will get it Extremely worthy value.
4Q: Are customized products accepted?
A:Your idea, your choice, we design. Nothing is impossible. We are always waiting for you here, where are you.

Company profile:
Guang Dong Li Xin Intelligent Technology Co.,Ltd. is updated from the name of  DONG GUAN LI XIN MACHINERY CO., LTD, acting as first leader and most professional manufacture specialized in PVC and Silicone machinery.
Strong R&D team and more than 20 years of experience earn us a good reputation in the world where the machine to have been. Because of development request, we establish Our oversea office in India, Bangladesh and Indonesia and also hoping to have many office in other countries very soon.

If you are interested in our products or want to know more information, please feel free to contact us.
China Factory: Niu Shan Industrial Garden, Dongchen District, Dong Guan, Guang Dong, China
Tel: +86-769-22664082 22698499 22209643
Fax:+86-769-22669648
Website: lxglobal.en.made-in-china.com
Mobile:+86-13711992817
