• Model NO.：G80
• Color：Multi-Colored
• Working Load Limit：5t
• Inside Min：39mm
• Colour：Black
• Grade：80
• Hook：Good Quality
• Product Name：Promotion 13mm Black Lifting Chain Hoisting Chain
• Transport Package：Wooden Case, Steel Drum
• Specification：150m,pcs
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. G80 Color Multi-Colored Working Load Limit 5t Inside Min 39mm Colour Black Grade 80 Hook Good Quality Product Name Promotion 13mm Black Lifting Chain Hoisting Chain Transport Package Wooden Case/ Steel Drum Specification 150m/pcs Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

Grade 80 short link alloy steel lifting chain 8 mm 10 mm 13 mm

G80 load chain specifications:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320

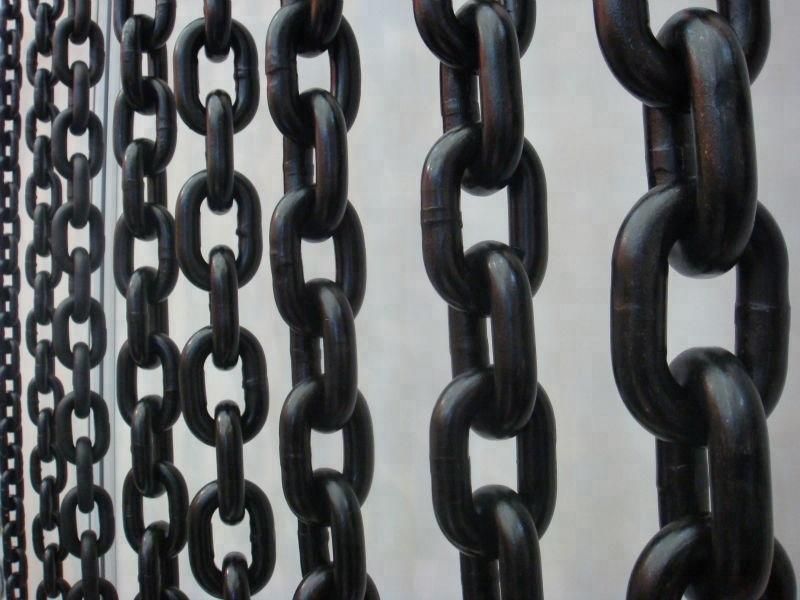

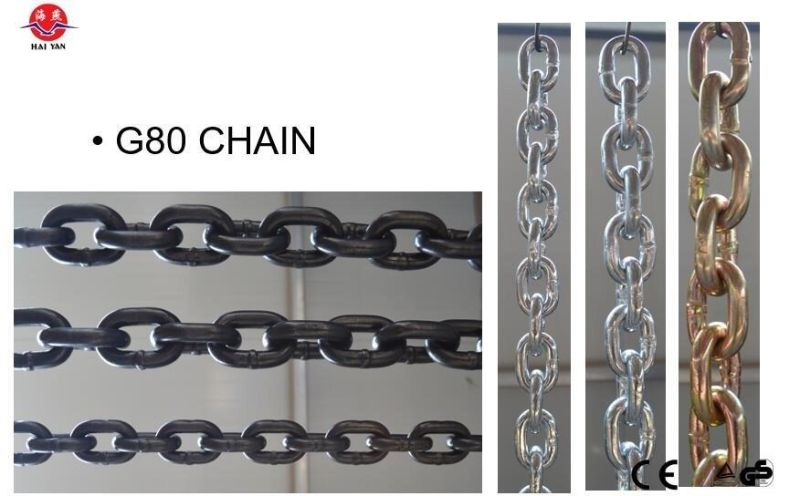

G80 load chain display:











Company Profile.

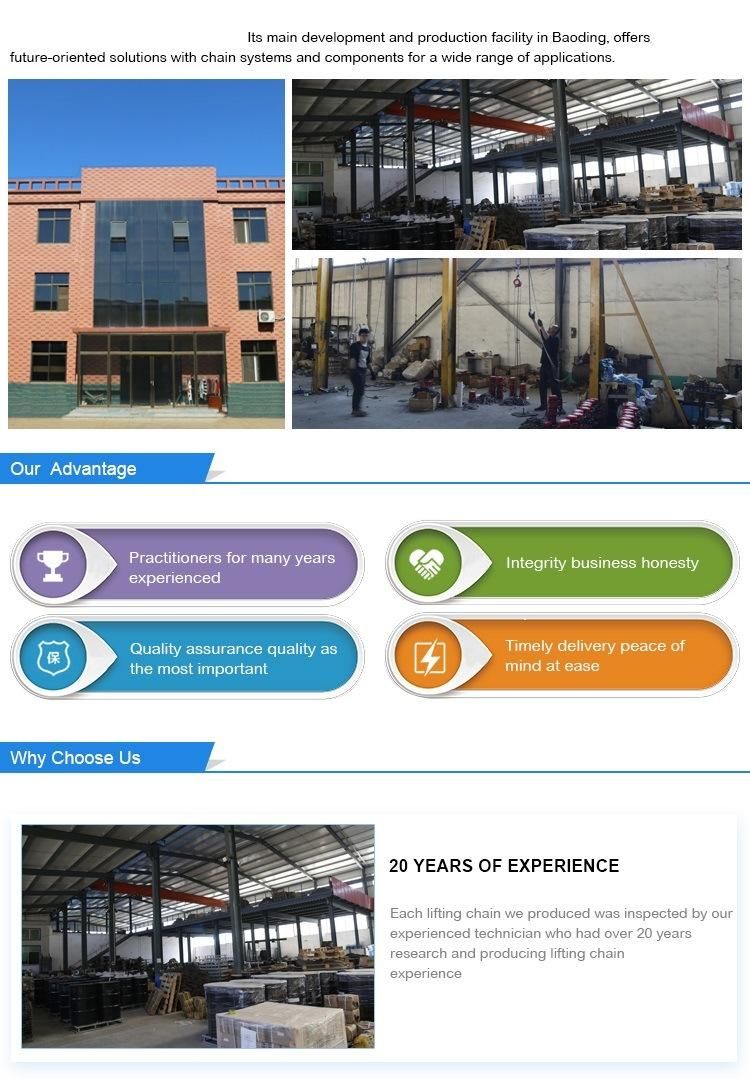

Baoding Jiazhong Hoisting Machinery Plant. was founded in 1999 in Baoding. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

We specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 30 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Jiazhong' s primary purpose is produce heavy duty and more reliable lifting chain for lifting application to achieve superior performance and usage, withstand more abuse, high abrasion resistance, greater lifting load. Each bundle of raw materials come with alloy steel quality inspection report issued by the steelmaker, including the component analysis, production date, produced furnace number, and so on, to ensure the traceability of each batch of raw materials.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Jiazhong lifting means, Jiazhong hoist chains, Jiazhong Chain block and Jiazhong Electric hoist are a guarantee of quality, innovation and safety.

In Tradition of Dynamic Innovation "that is in the tradition of a modern and dynamically growing family organization, the Jiazhong Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.
