3/8" Grade 80 Alloy Chain

Baoding Jiazhong Hoisting Machinery Plant
  • Usage:Drag Chain
  • Material:Iron
  • Surface Treatment:Oil Blooming
  • Feature:Heat Resistant
  • Chain Size:1,2"*3,32"
  • Structure:Welded Chain

Base Info

  • Model NO.:JZ
  • Color:Multi-Colored
  • Working Load Limit:55.4t
  • Inside Min:24mm
  • Grade:80
  • Transport Package:Wooden Case, Steel Drum
  • Specification:CE GS ISO9001
  • Trademark:HAIYAN
  • Origin:Baoding China
  • HS Code:731582000
  • Production Capacity:1000000m,Year

Description

Basic Info.

Model NO. JZ Color Multi-Colored Working Load Limit 55.4t Inside Min 24mm Grade 80 Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

3/8" Grade 80 Alloy Chain3/8" Grade 80 Alloy Chain
G80 load chain specifications:
Size(mm)Inside Width(mm)Outside Width(mm)Approx Weight KG/MW.L.L. TonTest Load KNB.L. KN
6 x 187.521.00.791.12745.2
7 x 219.024.51.071.53761.6
8 x 2410.028.01.382.04880.4
10 x 3012.535.02.203.276125
12 x 3615.042.03.104.6109181
13 x 3916.346.03.805.0128214
16 x 4820.056.05.638.0192320
16 x 4924.5 59.55.71 192 320

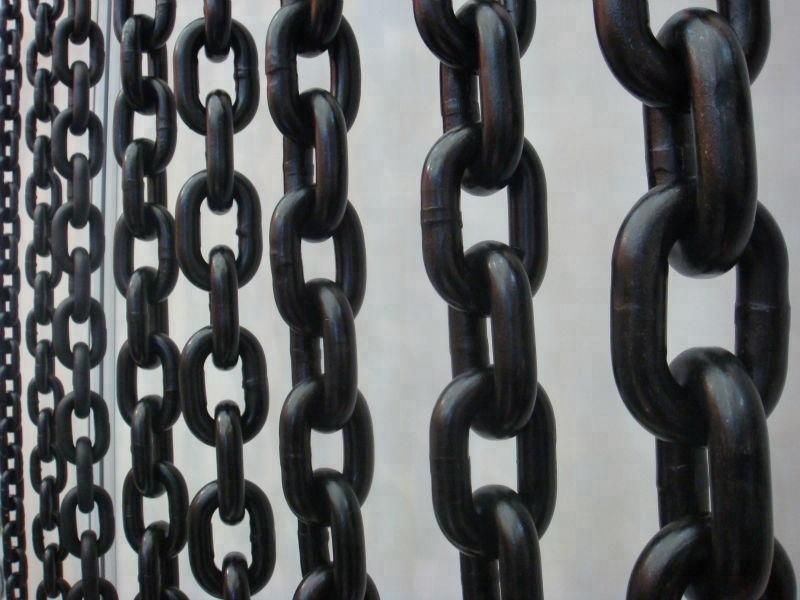

G80 load chain display:
3/8" Grade 80 Alloy Chain
3/8" Grade 80 Alloy Chain

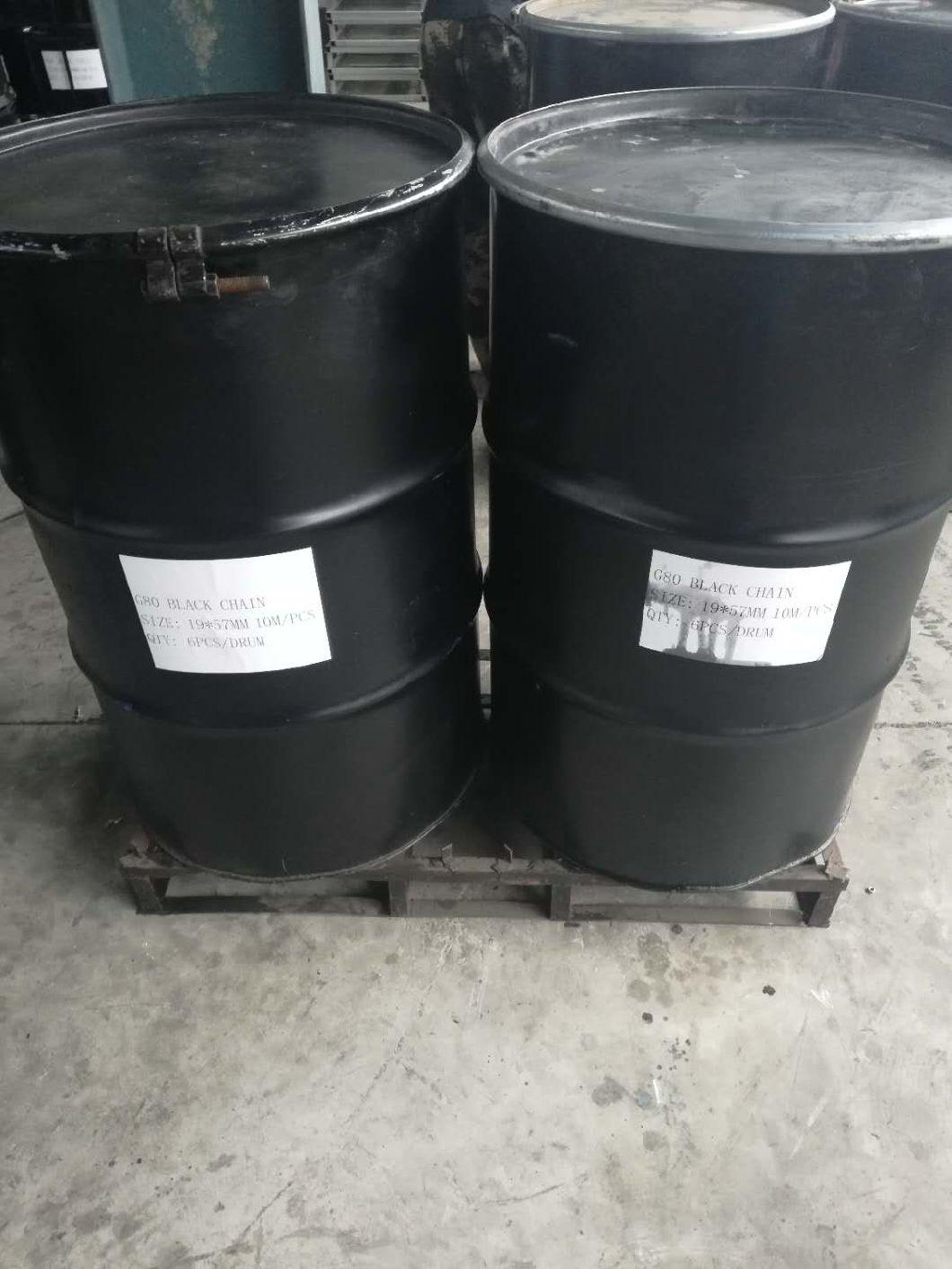

G80 lifting chain packing:

3/8" Grade 80 Alloy Chain


We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.



As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our jiazhong lifting means,jiazhong hoist chains,jiazhong Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant the ideal choice for you.

For more any questions about the G80 load chain please feel free to contact us
