Precision Vise with Shanks
Shenzhen Pride Instrument Inc.- Material：Steel
- Usage：For Inspection
- Type：Gage
- Test Methods：Through Check Method
- Precision Gauge：Precision Gauge
- Certification：CE, RoHS, JIS, GB, UL, ISO, SGS, DIN, ANS
Base Info
- Model NO.：PGA50-2
- Customized：Customized
- Transport Package：Well Package
- Specification：30*20*10
- Trademark：pride
- Origin：China
- Production Capacity：1000piece,Month
Description
Basic Info.
Model NO. PGA50-2 Customized Customized Transport Package Well Package Specification 30*20*10 Trademark pride Origin China Production Capacity 1000piece/MonthProduct Description

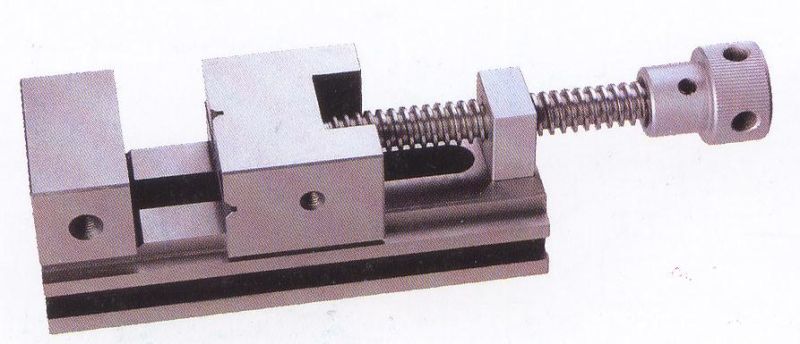

Precision Vise With ShanksDesigned for setting and checking of precision angles with gauge blocks, alloy steel, hardened, ground and lapped to accuracy 5μm,, roughness 0.8 μm,Packed in wooden box
| Model No | B | H | F | A | G | C | ØD | Kg |
| PGA50-2 | 50 | 50 | 177.5 | 150 | 65 | 25 | 32 | 2.0 |
| PGA73-2 | 73 | 70 | 227.5 | 205 | 100 | 35 | 43 | 4.68 |
| PGA100-2 | 100 | 90 | 305.5 | 255 | 125 | 45 | 43 | 10.24 |
