Best Price Open Link Anchor Chain with Certificate

Weifang First Rigging Co., Ltd.
  • Usage:Transmission Chain
  • Material:Alloy
  • Surface Treatment:Electroplating
  • Structure:Welded Chain
  • Color:Multi-Colored
  • Trademark:First rigging

Base Info

  • Origin:China

Description

Basic Info.

Origin China

Product Description

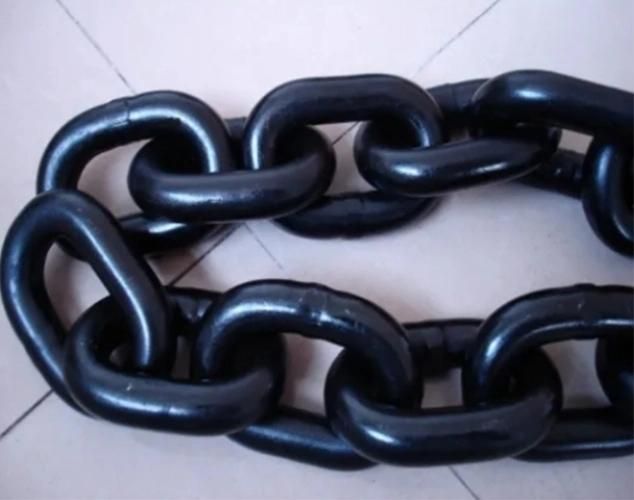

Lifting chain
Lifting chain of 80 level is indispensable lifting device for lifting heavy object, adopt the high quality alloy steel(manganese steel) and the other material . strict quality control thoughout  the precess , the lifting chain can reach the international standerd of 80 level.

Best Price Open Link Anchor Chain with Certificate


Best Price Open Link Anchor Chain with Certificate


Lifting chain standards:
Lifting chain applicationHigh precision calibration face, lifting chain.
Lifting materialHigh quality alloy steel.
Lifting chain surface Polishing, black , dipped plastic ,electroplate.
Lifting chain manufacturing standardISO3077,EN818-2,AS2321
Lifting chain strength  standardLevel 80 ,level 70
Lifting chain safe ensuienceFour times as safe, four times test load

Size d*p(mm)Minimun inner width(mm)Maximun outer width(mm)Weight(kg/m)Working load(kn)Test load (kn)breaking load(kn)
6*187.5210.79112745.2
7*21924.51.07153761.6
8*2410281.38204880.4
9*2711.5301.924.561102
10*3012.5352.23276125
12*3615.542.23.349117196
13*3916.3463.850128214
14*4218494.1363150250
16*4820565.6380192320
18*5423636.85100246410
20*6025708.6125300500

Scrap standard for chain:

1.The allowable wear value of the chain shall not exceed 10% of the diameter of the ring chain bar
2.Starting from the plane where the main ring is not bent, the main ring shall be scrapped if it is distorted by more than 10°
3.Crack, bend or twist in any part of the chain and stuck or stiff in the hinge are prohibited when they cannot be ruled out.
4.The permanent elongation of chains and single rings shall not exceed 5% of their original length
