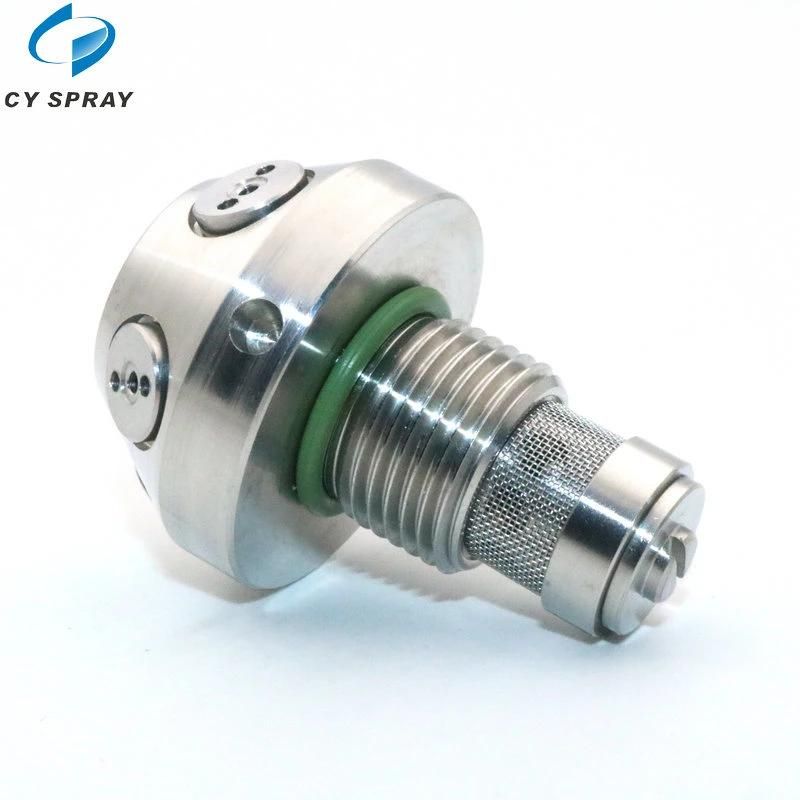

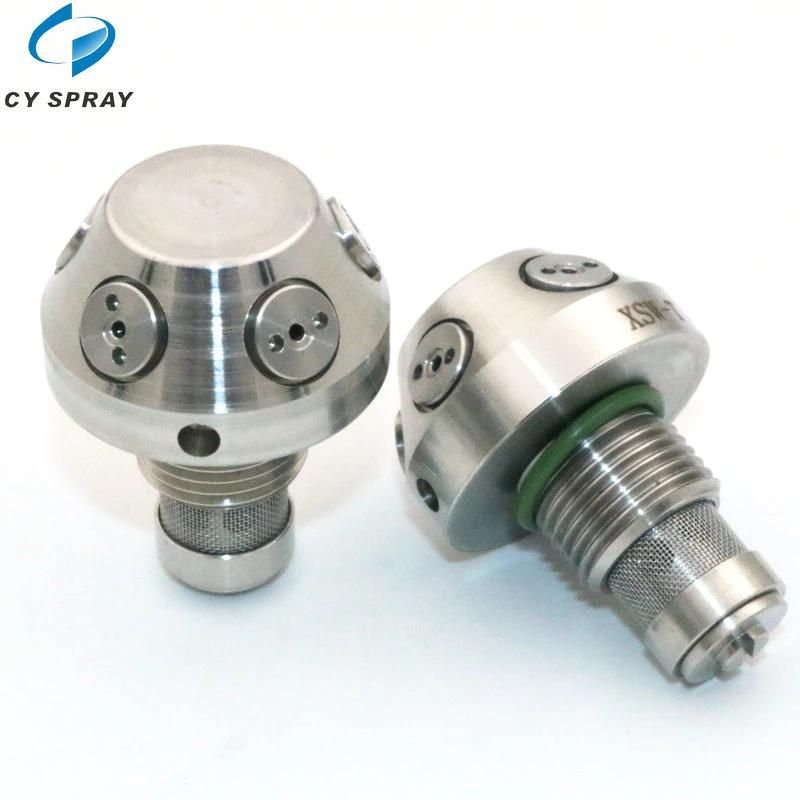

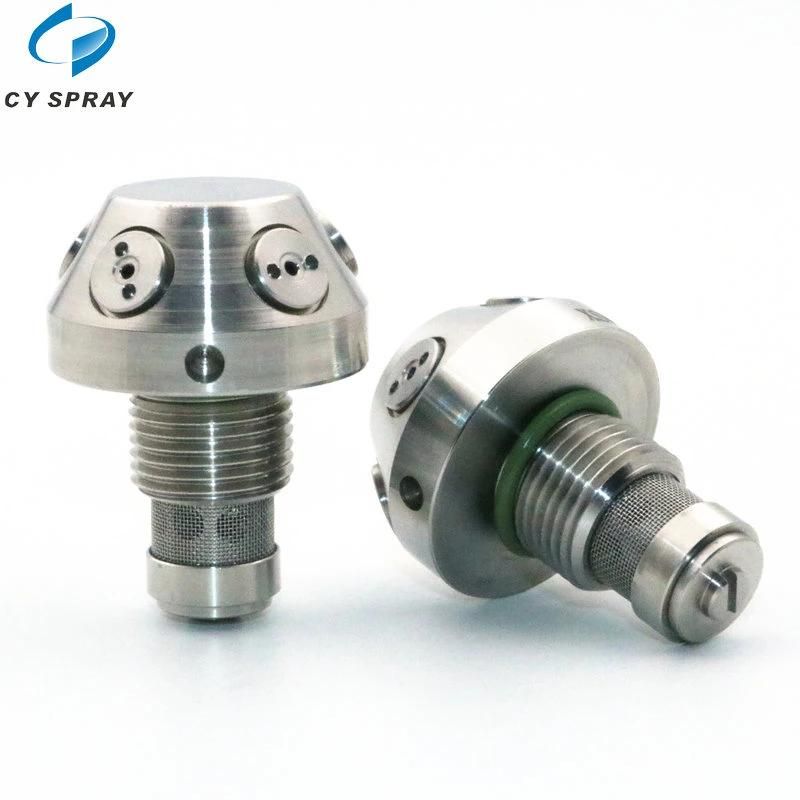

Customized High Pressure SS304 Fire Fighting Open Type Spray Nozzle
CY Spraying & Purification Technology Limited- Material：Ss
- Tips：5 or 7
- Max.Working Pressu：140bar
- Application：Fire-Fighting, Fire-Protection
- Certificates：ISO 9001, ISO14001
- Product Name：Fire Water Fogging Nozzle
Base Info
- Model NO.：JW
- K Factor：0.5-3.5
- Spray Shape：Flat Fan ,Round
- Advantage：0-50um Drop Size,Finest Spray
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day

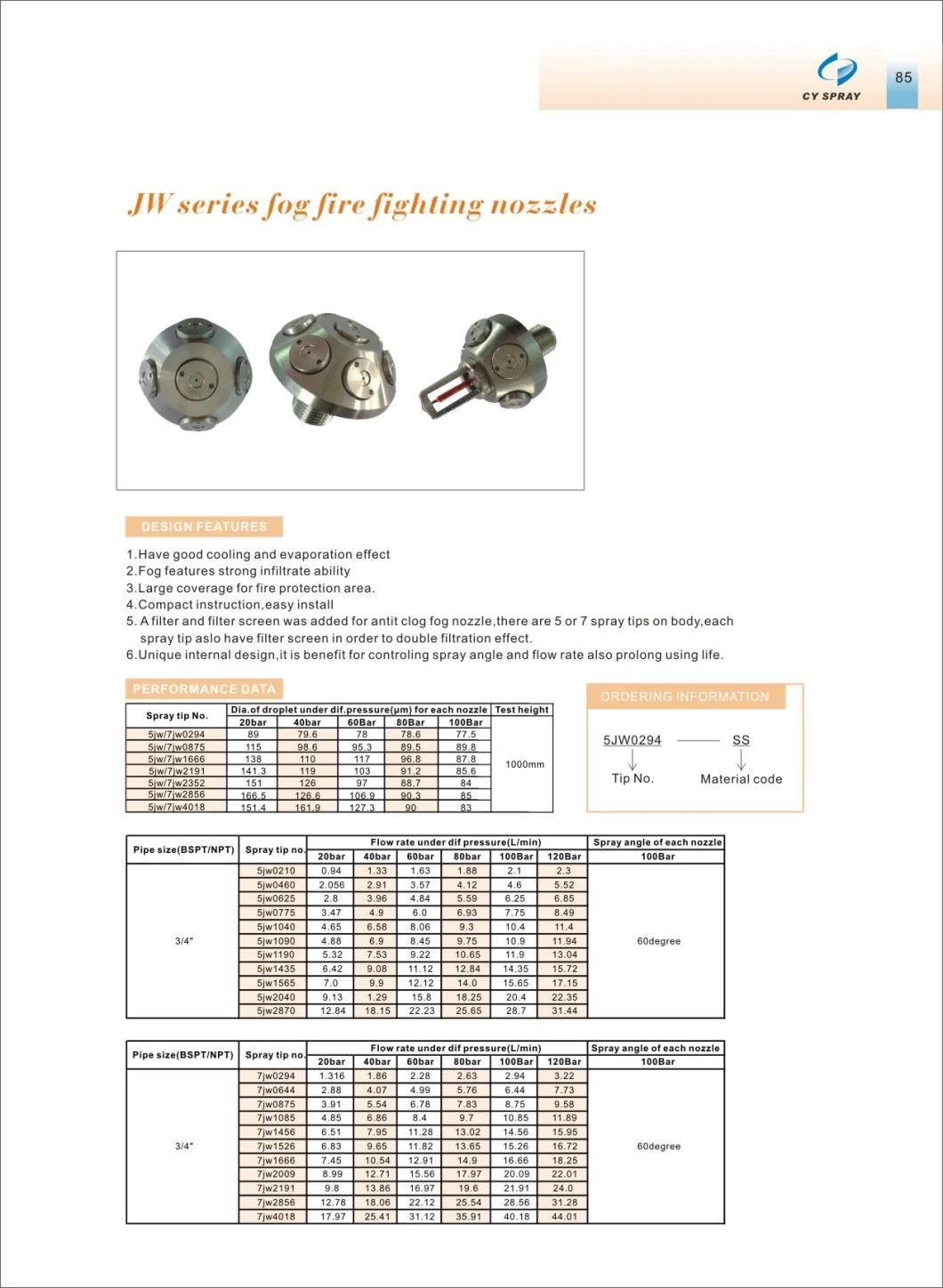

Description
Model Code
K factor
Working
pressure
Flow rate(L/min)
Max. Distance between nozzles
Max fit height
Qty of
Nozzles tips
CY-TQ0.3/10
0.3
10-14Mpa
3.0-3.5
3m
5m
5/6/7
CY--TQ0.5/10
0.5
10-14Mpa
5.0-5.9
3m
5m
5/6/7
CY--T0.7/10
0.7
10-14Mpa
7.0-8.3
3m
8m
5/6/7
CY--T0.9/10
0.9
10-14Mpa
9.0-10.6
3m
8m
5/6/7
CY--T1.0/10
1.0
10-14Mpa
10-11.8
3m
8m
5/6/7
CY--T1.2/10
1.2
10-14Mpa
12-14.2
3.5m
10m
5/6/7
CY--T1.5/10
1.5
10-14Mpa
15-17.7
3.5m
10m
5/6/7
CY--T1.7/10
1.7
10-14Mpa
17-20.1
3.5m
10m
5/6/7
CY--T2.0/10
2.0
10-14Mpa
20-23.7
4m
10m
5/6/7
