16 Holes 42mm Width Ss Material Air Knife Wind Jet Cleaning Spray Nozzle
CY Spraying & Purification Technology Limited- Thread Size：1,4
- Material：ABS,Alu.Ss
- Width：42mm
- Thread Type：BSPT or NPT,Female or Male
- Working Pressure：0-30bar
- Application：Drying, Cooling, Cleaning, Lubricating
Base Info
- Model NO.：FW5
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per One Day
Description
Basic Info.
Model NO. FW5 Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per One DayProduct Description

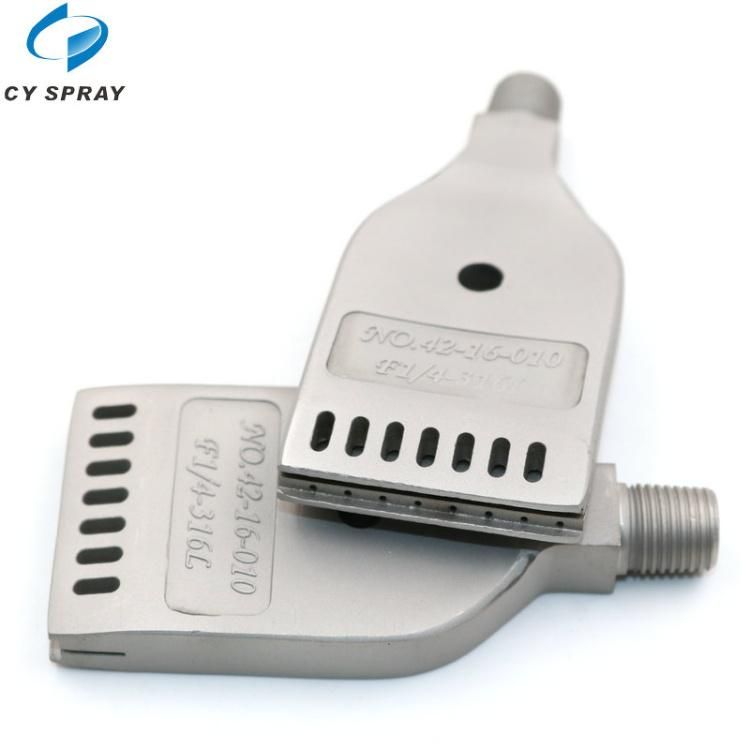

16 Holes 42mm Width Ss Material Air Knife Wind Jet Cleaning Spray Nozzle
Paprer & pulp:Washing wires ,felts ,rolls, etc.
Iron & steel :Cooling billets ,metal sheets,etc.
Water treatment :Washing filter presses,belt presses ,defoaming ,aeration filter sand suface washing ,etc.
Electric& Electronic :Washing substrates with alkaline liquid ,etc.
Painting: Washing automobile bodies,home electric applications ,etc. before coating.
PCB cleaning
1. Compact structure design
2.Energy saving, converting a low volume of compressed air into a high-velocity high impact flat fan air stream
3.Uniform distribution across the impact / blow-off area provides improved control
Provides low noise levels
4.Spray pattern / Flat fan or round jet
5. Max. operating pressure: 100 psi (7 bar) for ABS material nozzles, 435 psi (30 bar) for aluminium material nozzles
6. Max. operating temperature: 77degree for ABS material nozzles, 250oC for aluminium material nozzles
7. Material: ABS, Aluminium or SS optional for flat fan jet nozzles, ABS only for round jet pattern nozzles
8.Common applications: converyor blowing & drying, parts cleaning & drying, uniform application for die lube, parts cooiing, air curtain, transferring materials
