Customized Steel Forged Conveyor Scraper Chain

Qingdao Seger Industrial Co., Ltd.
  • Usage：Transmission Chain
  • Material：Alloy,Carbon Steel
  • Surface Treatment：Carburization
  • Chain Size：Customized Size
  • Color：Solid Color
  • Hardness：50HRC

Base Info

  • Model NO.：SC-01 OEM
  • Mechanical Property：1200MPa
  • MOQ：100
  • Heat Treatment：Hardening and Tempering
  • Dedicated Chain Type：Water Scraping Residue Chain
  • Leaf Chains Type：Roller Chain Traction
  • Detachable Chain Type：Agricultural Conveyor Chain with Clamping
  • Material Feature：Heat Resistant
  • Structure (for Chain)：Roller Chain
  • Transport Package：ISO Standard Package
  • Specification：ISO 9001
  • Trademark：OEM
  • Origin：Qingdao, Shandong
  • HS Code：73158900
  • Production Capacity：300000PCS Per Month

Description

Basic Info.

Model NO. SC-01 OEM Mechanical Property 1200MPa MOQ 100 Heat Treatment Hardening and Tempering Dedicated Chain Type Water Scraping Residue Chain Leaf Chains Type Roller Chain Traction Detachable Chain Type Agricultural Conveyor Chain with Clamping Material Feature Heat Resistant Structure (for Chain) Roller Chain Transport Package ISO Standard Package Specification ISO 9001 Trademark OEM Origin Qingdao, Shandong HS Code 73158900 Production Capacity 300000PCS Per Month

Product Description

Forging Conveyor Scraper Chain

Product Description

Seger can provide you conveyor scraper chain with high quality, the material could be 20CrMnTi, 40Cr or 35CrMo.


Customized Steel Forged Conveyor Scraper Chain

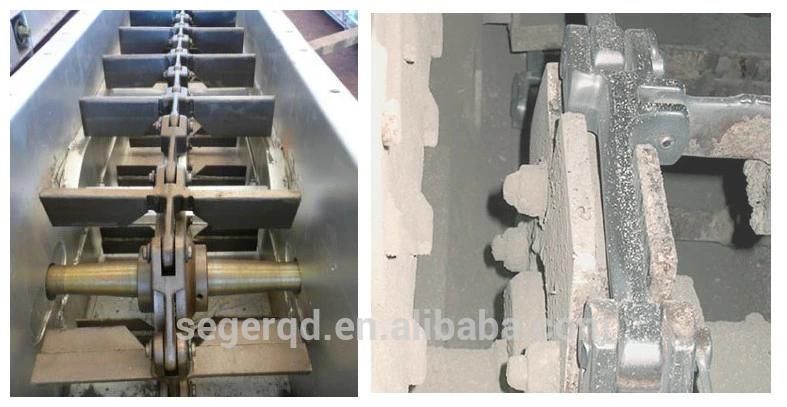

1. Conveyor Chain in practical use

Our conveyor chains are made by die forging, hardening and tempering and carburization. Its hardness can be up to HRC 50. The scraper chain is suitable for conveyor device used in bulk materials such as cement, powder, grain powder, sand and coal in powderk pellet or small lump styles.




Customized Steel Forged Conveyor Scraper Chain

2.Scraper Chain Standard Series

Forged scraper chain has proven to be one of the most reliable conveying mediums offering a combination of versality, strength and abrasion resistance.

Chain Number   P  T  C   S  F  R    Bolt Hole Diameter (mm)    Breaking Loads (KN)

 10160		 101.6 24  36   8  18   6                      14                  120
 12514 125 30  36  13 14  10                      16                  175
 14218 142 42    50   19  20   11                     25                  320
 14226 142 62  50  28 30   15                     25                  470
 16018 160 46  46  22 24  15                     22                  342
 16025 160 50 53  23 25  13                     25                  400
 20028 200 66 60  30 32   20                     30                  540
 22040 220 64 72  26 28  20                     35                  630
 22060 220 71 75   31  33  21                     35                  790
 26045 260 78 75  35 37  20                     32                  1000
