• Model NO.：8mm
• Color：Multi-Colored
• Working Load Limit：2t
• Inside Min：24mm
• Colour：Black
• Grade：80
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. 8mm Color Multi-Colored Working Load Limit 2t Inside Min 24mm Colour Black Grade 80 Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

hot sale alloy steel material 8mm black painted chain in stock now!

G80 load chain specifications:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320

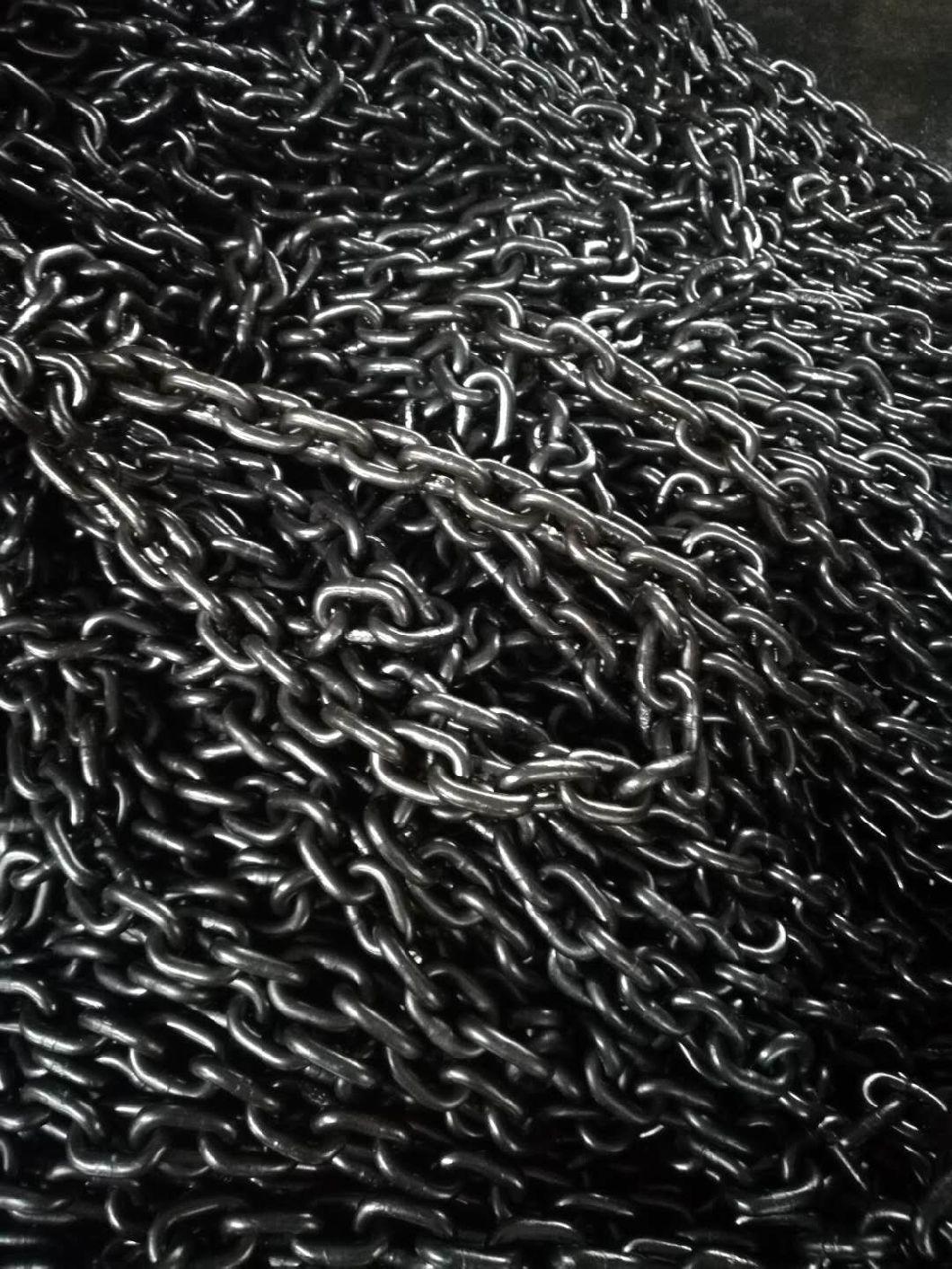

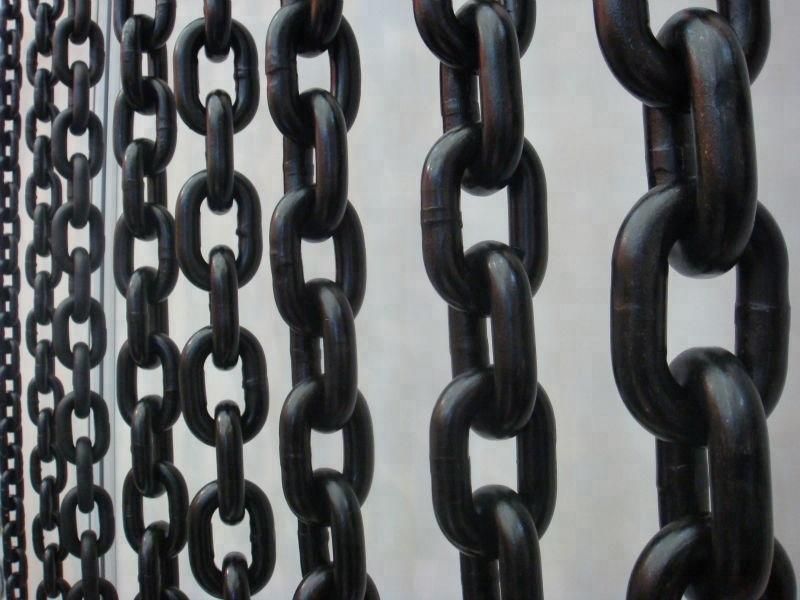

G80 load chain display:

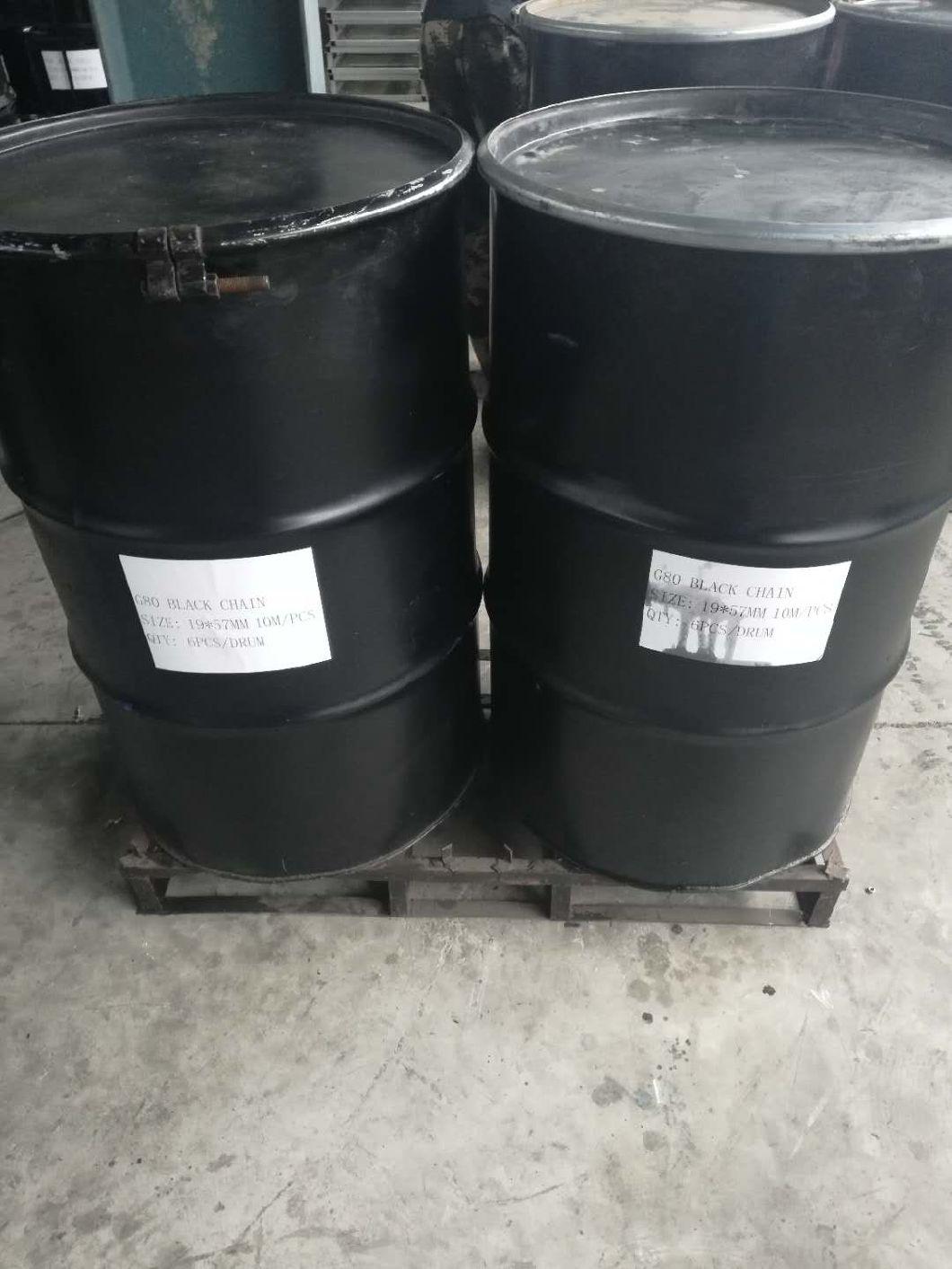

G80 lifting chain packing:




We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.



As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our jiazhong lifting means,jiazhong hoist chains,jiazhong Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant the ideal choice for you.

For more any questions about the G80 load chain please feel free to contact us or send us email!
