• Model NO.：JZ
• Color：Multi-Colored
• Working Load Limit：55.4t
• Inside Min：7.5mm
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：7315820000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. JZ Color Multi-Colored Working Load Limit 55.4t Inside Min 7.5mm Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 7315820000 Production Capacity 1000000m/Year

Product Description

Baoding Jiazhong Hoisting Machinery Plant. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.


As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant.. the ideal choice for you.

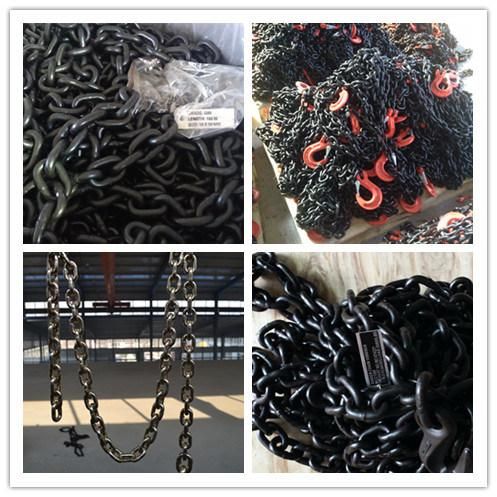

lifting chains for sale pics:

G80 heavy duty chain product parameter as belows:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320
18x54	23	63	6.85	10	246	410
19x57	23.7	63.5	7.7	11.3	270	450
20x60	25	70	8.6	12.5	300	500
22x66	28	77	10.2	15.3	366	610
26x78	35	91	14.87	21.3	510	850
30x90	38	105	19.6	28.3	678	1130
32x96	40	106	22.29	32.2	772	1286

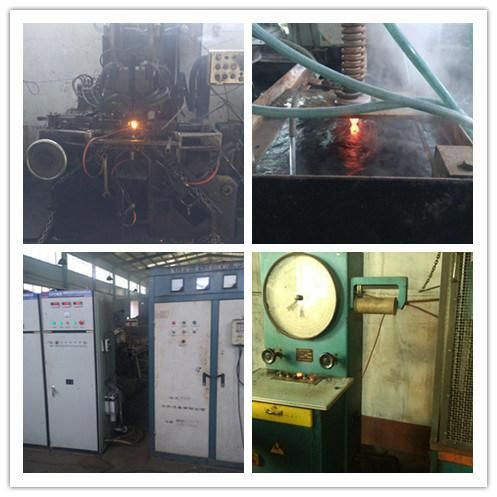

G80 steel chain production pics:

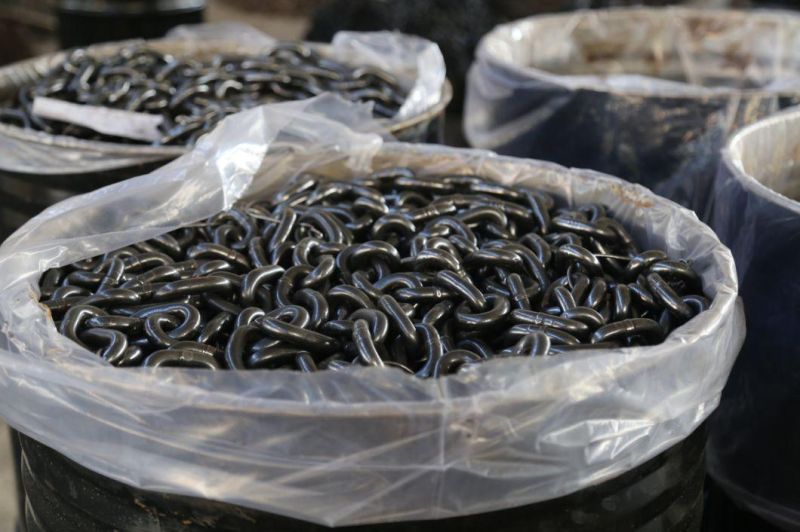

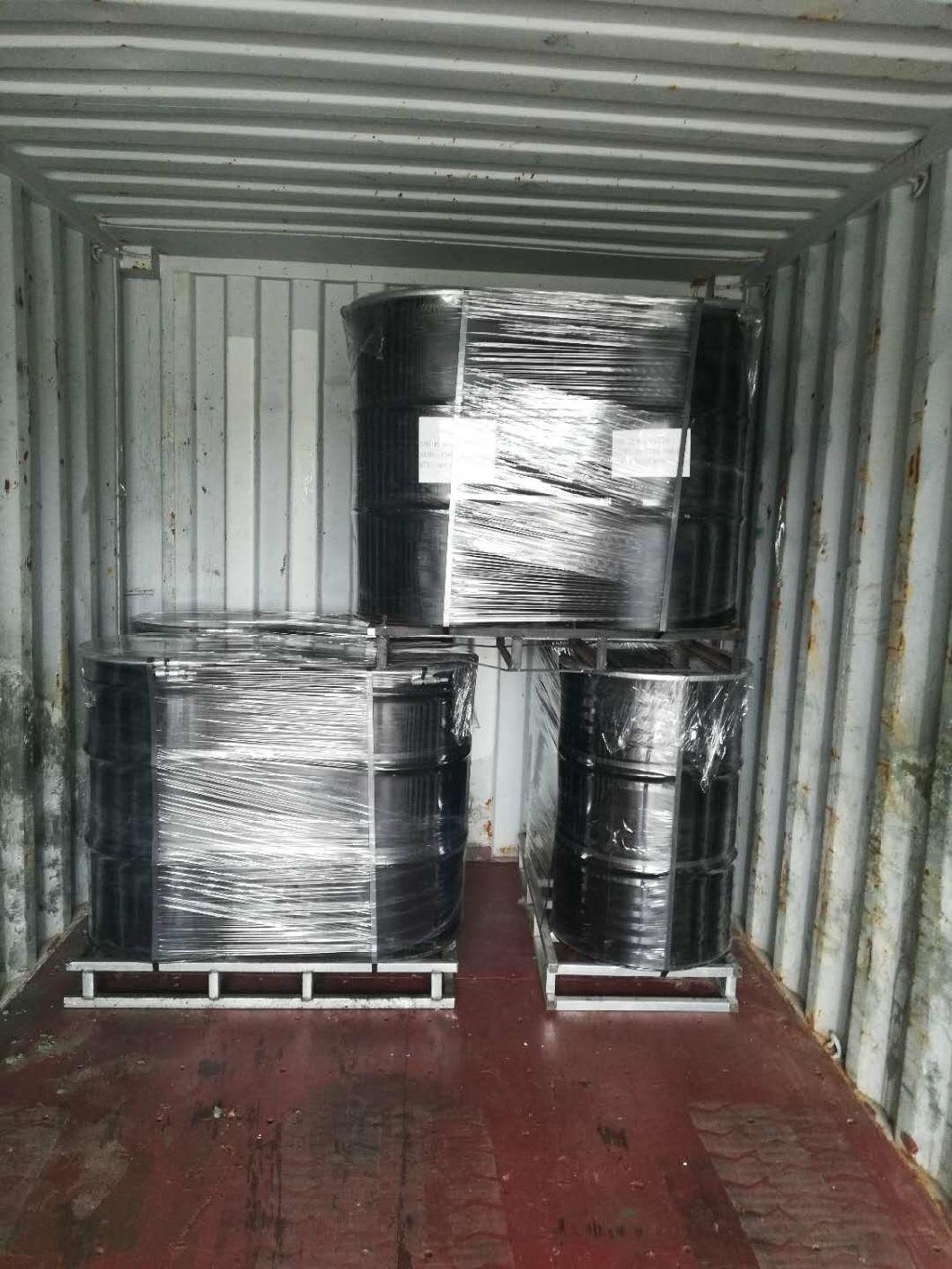

Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing




Baoding Jiazhong Hoisting Machinery was founded in 1999 in Baoding. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ42), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
