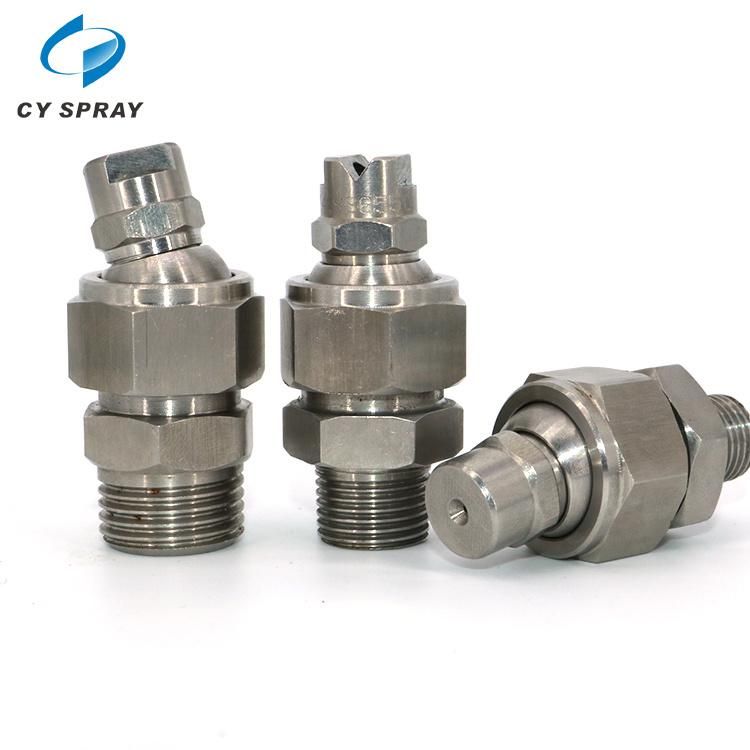

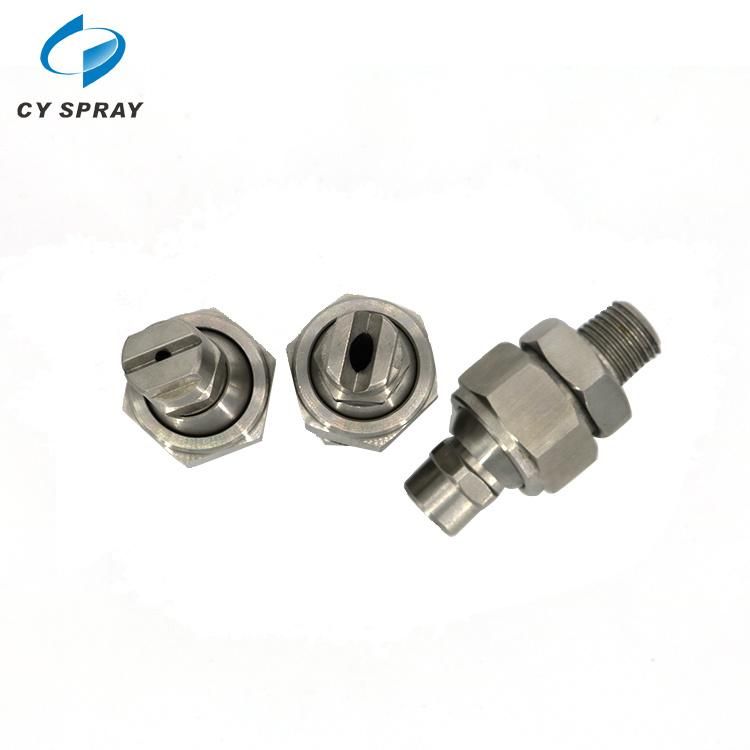

Excellent Adjustable Rotary Ball Joint Nozzle Adjustable Ball Clip Nozzle
CY Spraying & Purification Technology Limited- Brand Name：Cy Spray
- Material：Ss,Brass
- Size：2,3,4

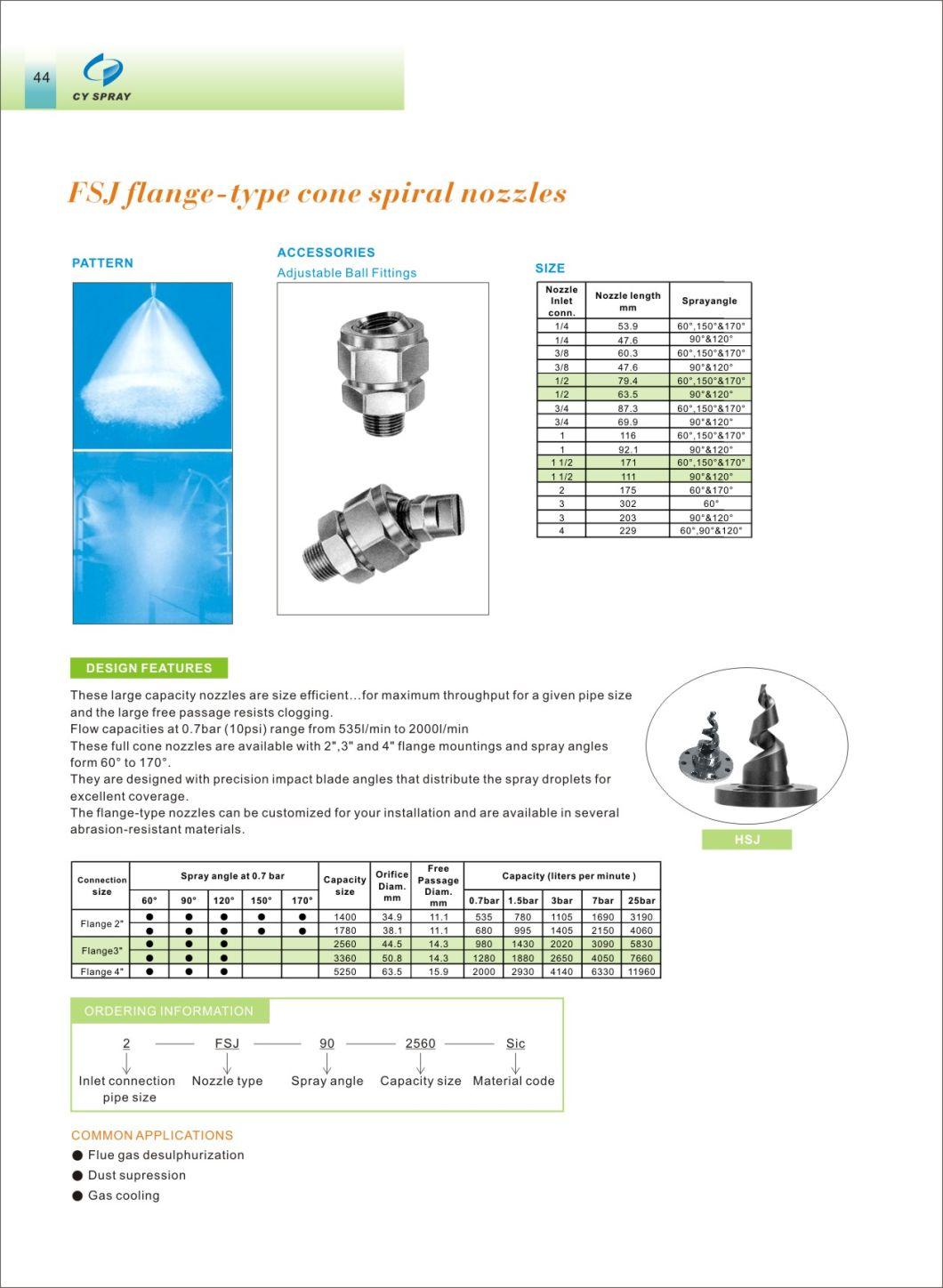

- Name：Flange-Type Cone Spiral Nozzles
- Item：Clamp Eyelet and Ball Fittings
- Service：Service
Base Info
- Model NO.：FSJ
- Spray Pattern：Full Cone
- Spray Angle：60-170degree
- Transport Package：Standard Export Carton
- Specification：Standard
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Model NO. FSJ Spray Pattern Full Cone Spray Angle 60-170degree Transport Package Standard Export Carton Specification Standard Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description
DESIGN FEATURES
These large capaciy nozzles are size eficient.for maximum throughput for a given pipe size and the large free passage resists clogging.
Flow capacities at 0.7bar (10psi) range from 5351/min to 20001/min
These ful one nozzles are available with 2",3" and 4" flange mountings and spray angles form 60° to 170°.
They are designed with precision impact blade angles that distribute the spray droplets for excellent coverage.
The flange-type nozzles can be customized for your installation and are available in several abrasion-resistant materials.
COMMON APPLICATIONS
Flue gas desulphurization
Dust supression
Gas cooling
