Pole Line Hardware Straight Angle Thimble Eye Anchor Rod Bolt
Victory Electric Power Equipment Co., Ltd.- Anchor：Thimble Eye
- Material：Carbon Steel
- Finish：Hot DIP Galvanized
- OEM：Accept
- Transport Package：Standard Export Package or on Your Request
- Specification：ANSI
Base Info
- Model NO.：G0652-10
- Trademark：VIC
- Origin：Wuniu, Wenzhou, Zhejiang, China
- HS Code：8535900090
- Production Capacity：800000PCS,Month
Description
Basic Info.
Model NO. G0652-10 Trademark VIC Origin Wuniu, Wenzhou, Zhejiang, China HS Code 8535900090 Production Capacity 800000PCS/MonthProduct Description

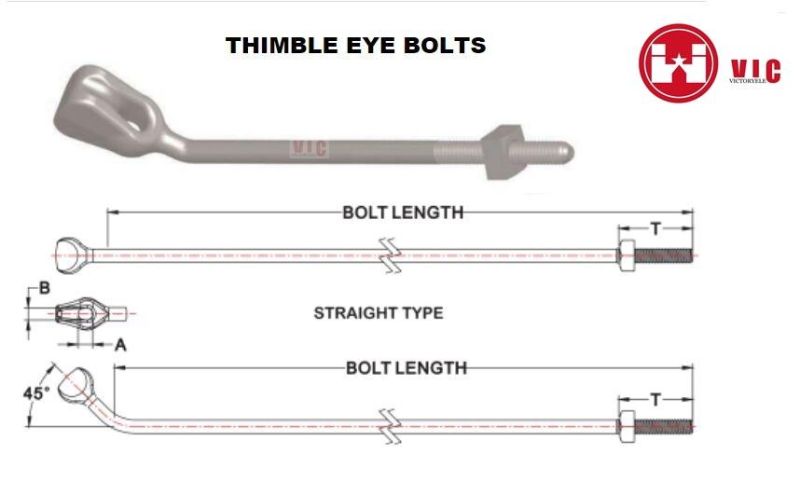

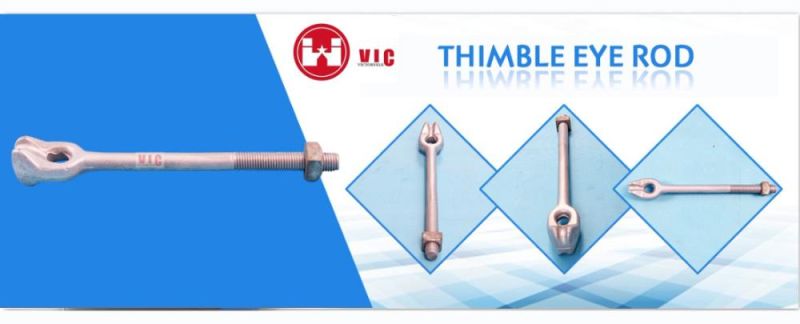

VIC Thimble Eye Bolts are forged from rolled bars open hearth carbon steel with the same strength of machine bolt manufactured in accordance with ANSI standards. C135.1-79.
Eye dimension is the same as shown on page G7 for Thimble Eye Anchor Rod.
| CATALOG NUMBER | BOLT TYPE | BOLT DIMESION | THREAD LENGTH | DIMENSION A | DIMENSION B | APPROX. WEIGHT PER 100 |
| G0650-08 | STRAIGHT | 5/8" X 8" | 4" | 11/16" | 9/16" | 143 LBS. |
| G0650-10 | STRAIGHT | 5/8" X 10" | 4" | 11/16" | 9/16" | 157 LBS. |
| G0650-12 | STRAIGHT | 5/8" X 12" | 6" | 11/16" | 9/16" | 170 LBS. |
| G0650-14 | STRAIGHT | 5/8" X 14" | 6" | 11/16" | 9/16" | 184 LBS. |
| G0650-16 | STRAIGHT | 5/8" X 16" | 6" | 11/16" | 9/16" | 197 LBS. |
| G0651-10 | STRAIGHT | 3/4" X 10" | 4" | 13/16" | 11/16" | 188 LBS. |
| G0651-12 | STRAIGHT | 3/4" X 12" | 6" | 13/16" | 11/16" | 207 LBS. |
| G0651-14 | STRAIGHT | 3/4" X 14" | 6" | 13/16" | 11/16" | 227 LBS. |
| G0652-10 | ANGLE | 5/8" X 10" | 4" | 11/16" | 9/16" | 161 LBS. |
| G0652-12 | ANGLE | 5/8" X 12" | 6" | 11/16" | 9/16" | 175 LBS. |
| G0652-14 | ANGLE | 5/8" X 14" | 6" | 11/16" | 9/16" | 188 LBS. |
| G0652-16 | ANGLE | 5/8" X 16" | 6" | 11/16" | 9/16" | 202 LBS. |
| G0653-10 | ANGLE | 3/4" X 10" | 4" | 13/16" | 11/16" | 188 LBS. |
| G0653-12 | ANGLE | 3/4" X 12" | 6" | 13/16" | 11/16" | 207 LBS. |
| G0653-14 | ANGLE | 3/4" X 14" | 6" | 13/16" | 11/16" | 227 LBS. |
