• Model NO.：Tri Clamp Set
• Size：D10-300&1,2"-12",
• Transport Package：Export Standard Packing
• Specification：DIN, SMS, ISO, IDF, RJT
• Trademark：QL
• Origin：Wenzhou Zhejiang, China
• HS Code：73072900
• Production Capacity：500000,Mouth

Basic Info.

Model NO. Tri Clamp Set Size D10-300&1/2"-12", Transport Package Export Standard Packing Specification DIN, SMS, ISO, IDF, RJT Trademark QL Origin Wenzhou Zhejiang, China HS Code 73072900 Production Capacity 500000/Mouth

Product Description

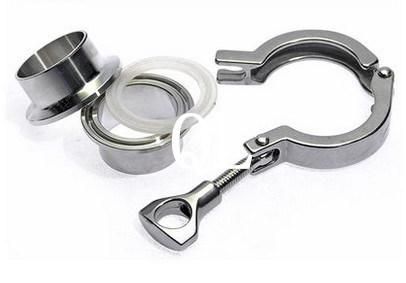

Item Name: Sanitary Stainless Steel Pipe Fittings Tri Clamp Set (Clamp+Male Ferrule+Gasket)

Standards: DIN, 3A and SMS

Size: DN10-DN300&1/2"-12"/12.7mm-304mm

Nut : Many kinds of nuts can be chosen

Weight can be provided according to your requirement.


Female Ferrule:

Material: SUS304 /SUS316L   ,  AISI304/AISI316L

Size: DN10-DN300&1/2"-12"/12.7mm-304mm


Seal:

Material of matched seal :   Silicon,     EPDM,    PTFE    Can be chosen



Applications: Pharmacy, beer, food, petroleum, dairy beverages and cosmetics

As a manufacturer for all products we can produce if your specification is out of our standard.

Please don't hesitate to contact us if you need more details.

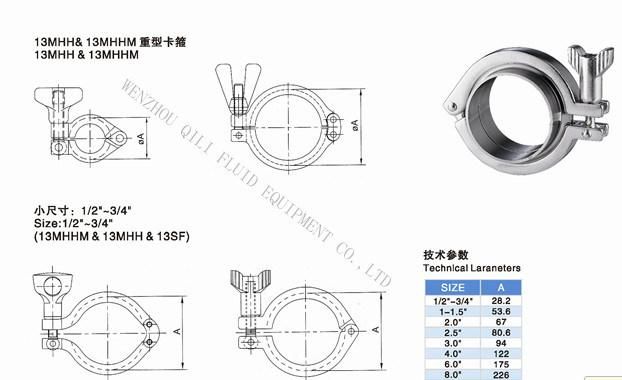

	3A	DIN	SMS	ISO
Chuck of Clamp	Size	Size	Size	Size
25.2	1/2"-3/4"		12.7mm-19mm	12.7mm-19mm
34		DN10-DN20
40
50.5	1"-1 1/2"	DN25-DN40	25mm-38mm	25mm-38mm
64	2"	DN50	51mm	51mm
77.5	2 1/2"		63mm	63mm
91	3"	DN65	76mm	76mm
106		DN80	89mm	89mm
119	4"	DN100	102mm	102mm
130
145
155		DN125
166.8	6"			133mm
183		DN150
217.7	8"			203mm
233		DN200
268.5	10"	DN250		254mm
319.27	12"	DN300		305mm

Certifications


FAQ:
1.   Are you a trader or manufactor?
      We are a manufactor (Forging workshop and CNC machining workshop )

2.   Can your products reach to FDA , CE and 3A requirements?
      Yes, all of our material can reach to the requirements of FDA, ISO and 3A Certificate).
3.We can supply:
 Sanitary Butterfly Valve, Sanitary Check Valve and Diaphragm Valves, as well as Various Tank Accessories:  Sight Glass, Strainers/Filter, Cleaning Ball, And other Pipe Fittings, (Pipe Unions: SMS, DIN, IDF, RJT, 3A,DS; Fittings: Ferrule,Elbow, Tee, Reducer and all other Non-standrad fittings), each products are tested well by our strictly Quality Control System, and we also have excellent service to support you and promote your business.

4.Lead Time:
For large quantity, as usual, it can be sent out within 20-40 days.
Small parcel will be dispatched by DHL, FedEx, UPS OR TNT Courier.
Big cargo will be delivered by Air freight or By Sea.

5.Our Service:
About payment:
Payment methods: L/C, T/ T, Western Union
6.About samples:
We can provide samples production and service. Usually 2 to 5 days, the sample can be sent to your hands. We will choose the shipping way as you required: By sea, by air or by express. Any question about samples, please contact us.
7.For OEM products:
We will finish the production within 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose the delivery way as you required: By sea, by air, by express ect. Save your cost is our mission.
8.Warranty:
Any question or problem will be respond within 12 hours.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Purpose:Attitude is everything.
