Electric Galvanizing Snap Hook with Screw DIN5299 Form D
Weifang First Rigging Co., Ltd.- Material：Stainless Steel
- Color：Silver
- Transport Package：Wooden Cases , Export Carton Then in Pallet
- Specification：4X40~15X200
- Trademark：First Rigging
- Origin：Shandong China(Mainland)
Base Info
- Model NO.：FST-THG-D-002
- HS Code：83081000
- Production Capacity：1*20FT Container Per Month
Description
Basic Info.
Model NO. FST-THG-D-002 HS Code 83081000 Production Capacity 1*20FT Container Per MonthProduct Description
Snap Hook:
Material: Malleable Steel
Surface treatment: Galvanized
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.

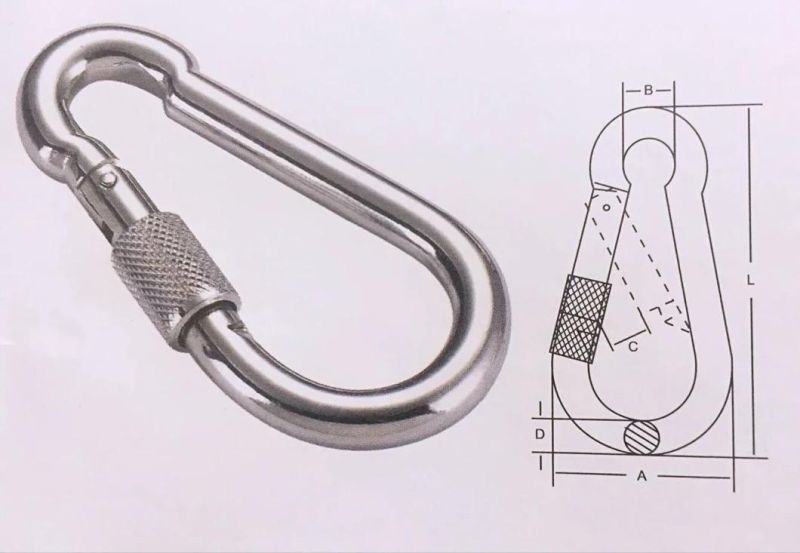

Technical Specification:
| SIZE | A | B | C | D | L | W.L.L. | N.W. |
| mm | mm | mm | mm | mm | mm | Lbs | g/pcs |
| 5X50 | 25 | 8 | 7 | 5 | 50 | 220 | 20 |
| 6X60 | 30 | 9 | 8 | 6 | 60 | 260 | 30 |
| 7X70 | 35 | 10 | 8 | 7 | 70 | 400 | 50 |
| 8X80 | 40 | 12 | 9 | 8 | 80 | 500 | 75 |
| 9X90 | 45 | 12 | 10 | 9 | 90 | 550 | 98 |
| 10X100 | 50 | 15 | 11 | 10 | 100 | 770 | 160 |
| 11X120 | 57 | 18 | 16 | 11 | 120 | 990 | 210 |
| 12X140 | 67 | 20 | 19 | 12 | 140 | 1200 | 270 |
| 13X160 | 74 | 22 | 25 | 13 | 160 | 1400 | 360 |
| 14X180 | 86 | 22 | 35 | 14 | 180 | 1600 | 510 |
Packaging & Delivery:
Packing details: Packed in carton and then in pallet, Packed in wooden carton, or according to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
